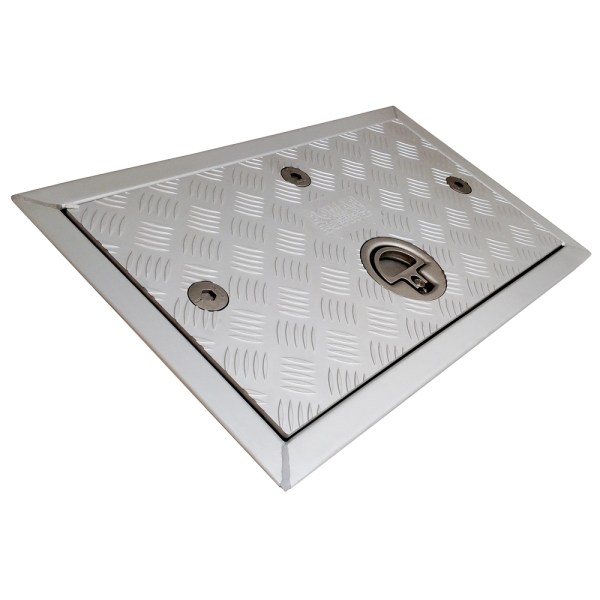

BOMAR 4000 & 4100 Series Rectangular Hatches

Bomar 4000 and 4100 Series hatches offers that next level upgrade to any new construction or re-fit project you may have. Designed with safety, quality, functionality, and aesthetics in mind, we have a solution for all your project needs….

Description

With decades of marine product development knowledge, our line of hatches was designed to outperform and outlast all that is on the market today.

The convenient drop in design, provides for an efficient, secure, and semi-flush installation, that could either be glazed in or attached with fasteners. Bomar 4000 and 4100 Series Hatches are rated for 5PSI water resistance and is a must have, for all required dry areas.

Our hatches can be custom tailored to fit all your project needs, with custom finishes, textures, branding, and size options as well.

Features:
Aluminium plate and frame

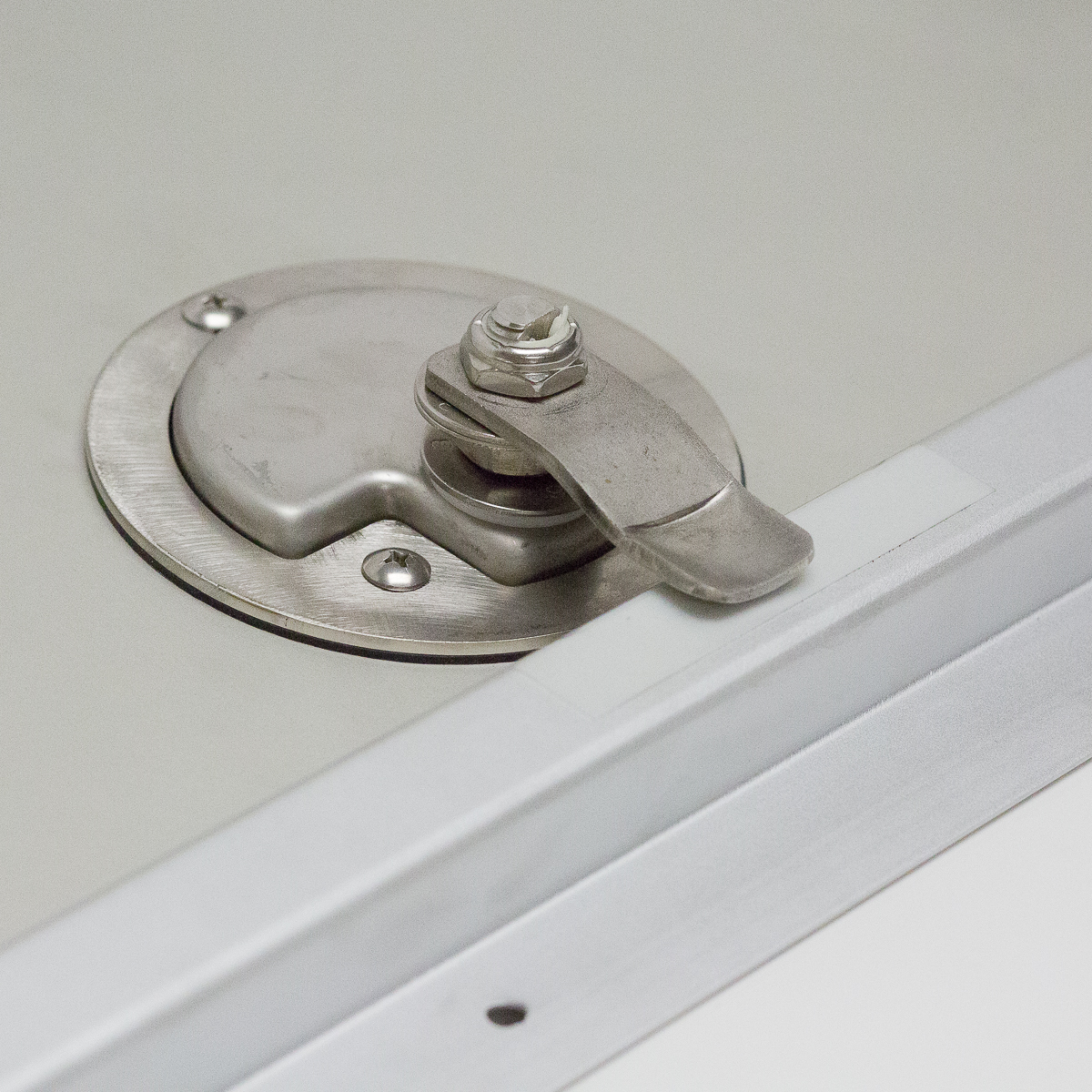

D-Handles
Allen Drive handles
1/4? height off mounting surface
Available in a smooth or tread texture finish

01-40129 | Overall Size – 14.5″ x 14.5″ (373mm x 373mm) | Cut Out – 12.5″ x 12.5″ (318mm x 318mm) | Tread Texture Finish
01-41129 | Overall Size – 14.5″ x 14.5″ (373mm x 373mm) | Cut Out – 12.5″ x 12.5″ (318mm x 318mm) | Smooth Finish
01-40127 | Overall Size – 26.5″ x 18.5″ (677mm x 474mm) | Cut Out – 24.5″ x 16.5″ (620mm x 419mm) | Tread Texture Finish
01-41127 | Overall Size – 26.5″ x 18.5″ (677mm x 474mm) | Cut Out – 24.5″ x 16.5″ (620mm x 419mm) | Smooth Finish
01-40132 | Overall Size – 26.5″ x 26.5″ (677mm x 677mm) | Cut Out – 24.5″ x 24.5″ (622mm x 622mm) | Tread Texture Finish
01-41132 | Overall Size – 26.5″ x 26.5″ (677mm x 677mm) | Cut Out – 24.5″ x 24.5″ (622mm x 622mm) | Smooth Finish
01-40131 | Overall Size – 32.5″ x 22.5″ (830mm x 576mm) | Cut Out – 30.5″ x 20.5″ (775mm x 521mm) | Tread Texture Finish
01-41131 | Overall Size – 32.5″ x 22.5″ (830mm x 576mm) | Cut Out – 30.5″ x 20.5″ (775mm x 521mm) | Smooth Finish
01-40128 | Overall Size – 32.5″ x 26.5″ (830mm x 677mm) | Cut Out – 30.5″ x 24.5″ (775mm x 622mm) | Tread Texture Finish
01-41128 | Overall Size – 32.5″ x 26.5″ (830mm x 677mm) | Cut Out – 30.5″ x 24.5″ (775mm x 622mm) | Smooth Finish
01-40133 | Overall Size – 38.5″ x 26.5″ (982mm x 677mm) | Cut Out – 36.5″ x 24.5″ (927mm x 622mm) | Tread Texture Finish
01-41133 | Overall Size – 38.5″ x 26.5″ (982mm x 677mm) | Cut Out – 36.5″ x 24.5″ (927mm x 622mm) | Smooth Finish
01-40134 | Overall Size – 50.5″ x 26.5″ (1287mm x 677mm) | Cut Out – 48.5″ x 24.5″ (1232mm x 622mm) | Tread Texture Finish
01-41134 | Overall Size – 50.5″ x 26.5″ (1287mm x 677mm) | Cut Out – 48.5″ x 24.5″ (1232mm x 622mm) | Smooth Finish

Additional information

Options

14.5" x 14.5" (373mm x 373mm) – Tread Texture Finish, 14.5" x 14.5" (373mm x 373mm) – Smooth Finish, 26.5" x 18.5" (677mm x 474mm) – Tread Texture Finish, 26.5" x 18.5" (677mm x 474mm) – Smooth Finish, 26.5" x 26.5" (677mm x 677mm) – Tread Texture Finish, 26.5" x 26.5" (677mm x 677mm) – Smooth Finish, 32.5" x 22.5" (830mm x 576mm) – Tread Texture Finish, 32.5" x 22.5" (830mm x 576mm) Smooth Finish, 32.5" x 26.5" (830mm x 677mm) – Tread Texture Finish, 32.5" x 26.5" (830mm x 677mm) – Smooth Finish, 38.5" x 26.5" (982mm x 677mm) – Tread Texture Finish, 38.5" x 26.5" (982mm x 677mm) – Smooth Finish, 50.5" x 26.5" (1287mm x 677mm) – Tread Texture Finish, 50.5" x 26.5" (1287mm x 677mm) – Smooth Finish

    SKU 01-40129 Categories , , Tag
