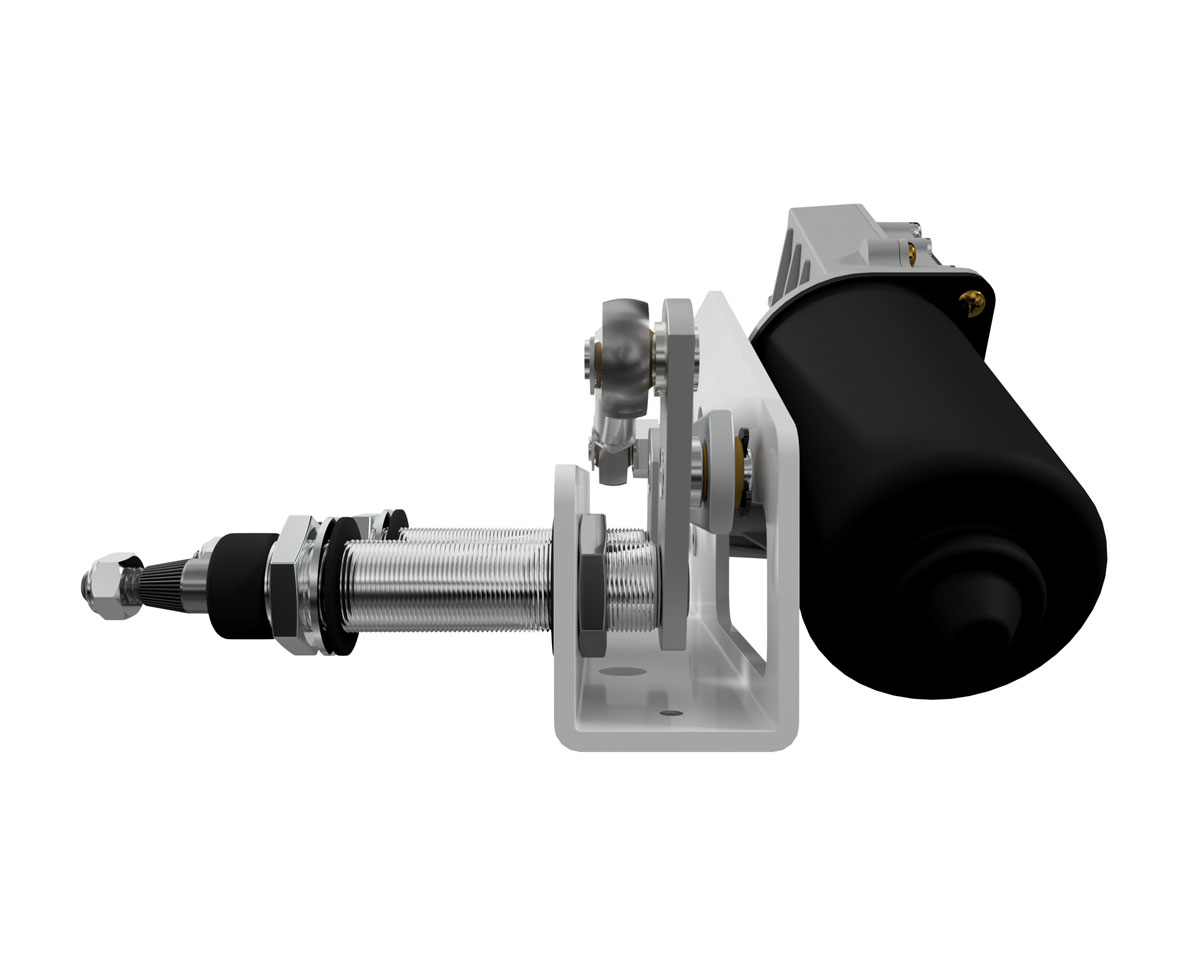

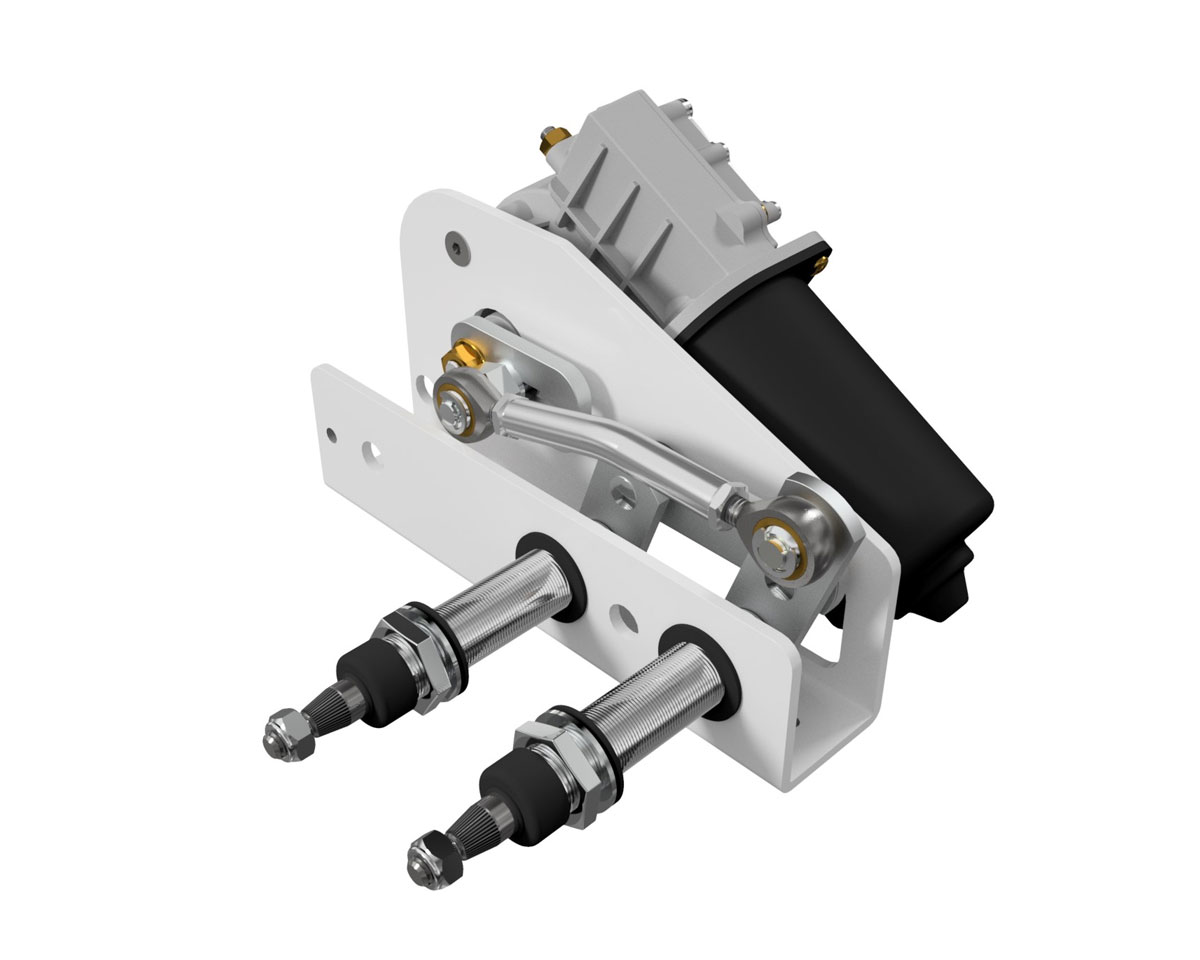

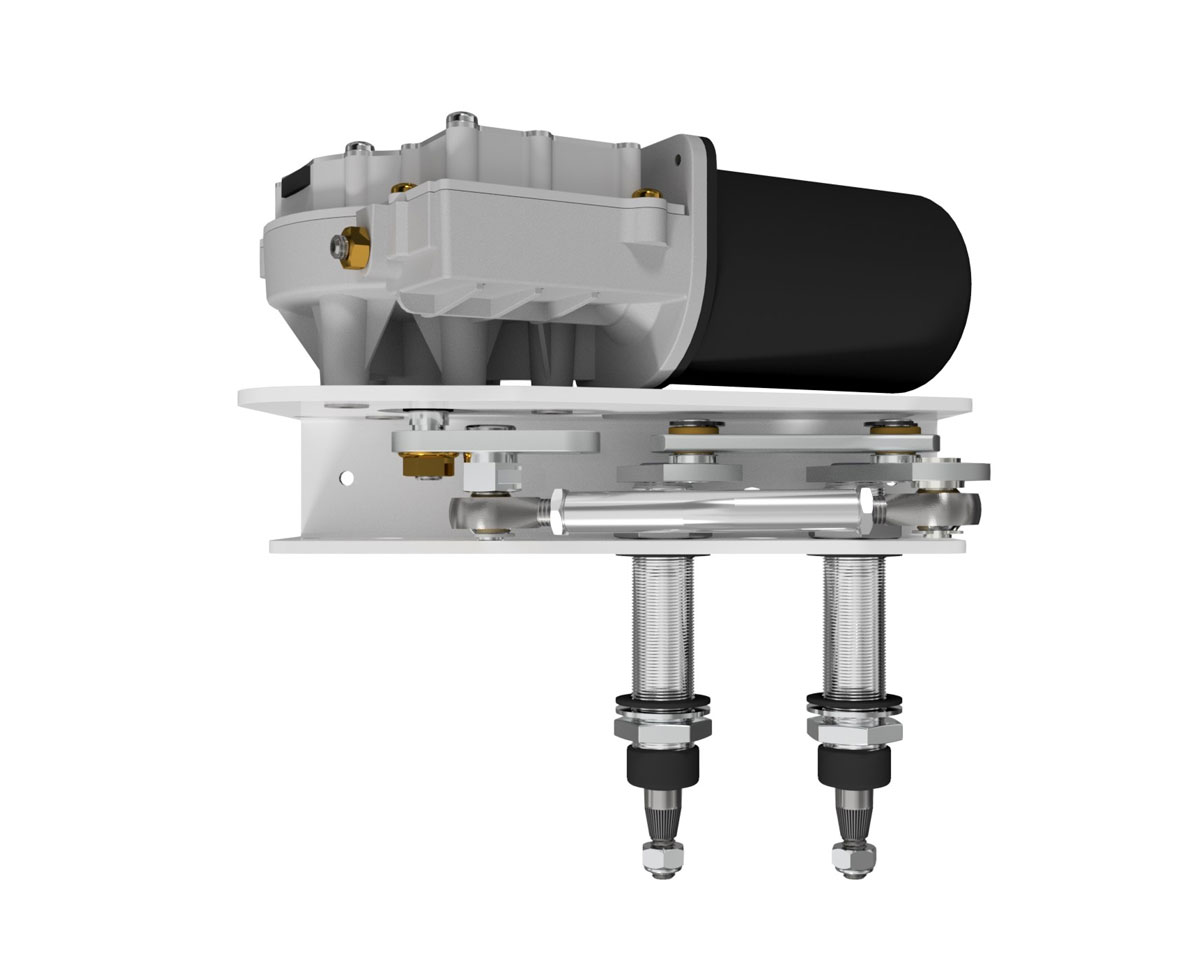

W50 Windscreen Wiper Motor

A windshield wiper system for the toughest conditions. It’s the perfect match for any yacht or train with a big front windshield where you need a longer sweeping arm and blade. Safe and user-friendly with a bulletproof sweep and pressure, the W50 windshield wiper system is also designed to last for many years….

Description

A windshield wiper system for the toughest conditions. It’s the perfect match for any yacht or train with a big front windshield where you need a longer sweeping arm and blade.

Safe and user-friendly with a bulletproof sweep and pressure, the W50 windshield wiper system is also designed to last for many years.

  • Torque: 50 Nm
  • Powers up to 1100 mm/43″ arms and blades
  • Easily adjustable sweep angle 45 – 110°
  • Self-parking Left or Right
  • Two speeds: Slow 30 sweeps/min and fast 47 sweeps/min
  • Voltage Input: 12 or 24 VDC
  • EMC protected
  • Driveshafts in stainless steel
  • Insulated ground for metal, GRP, and wooden chassis

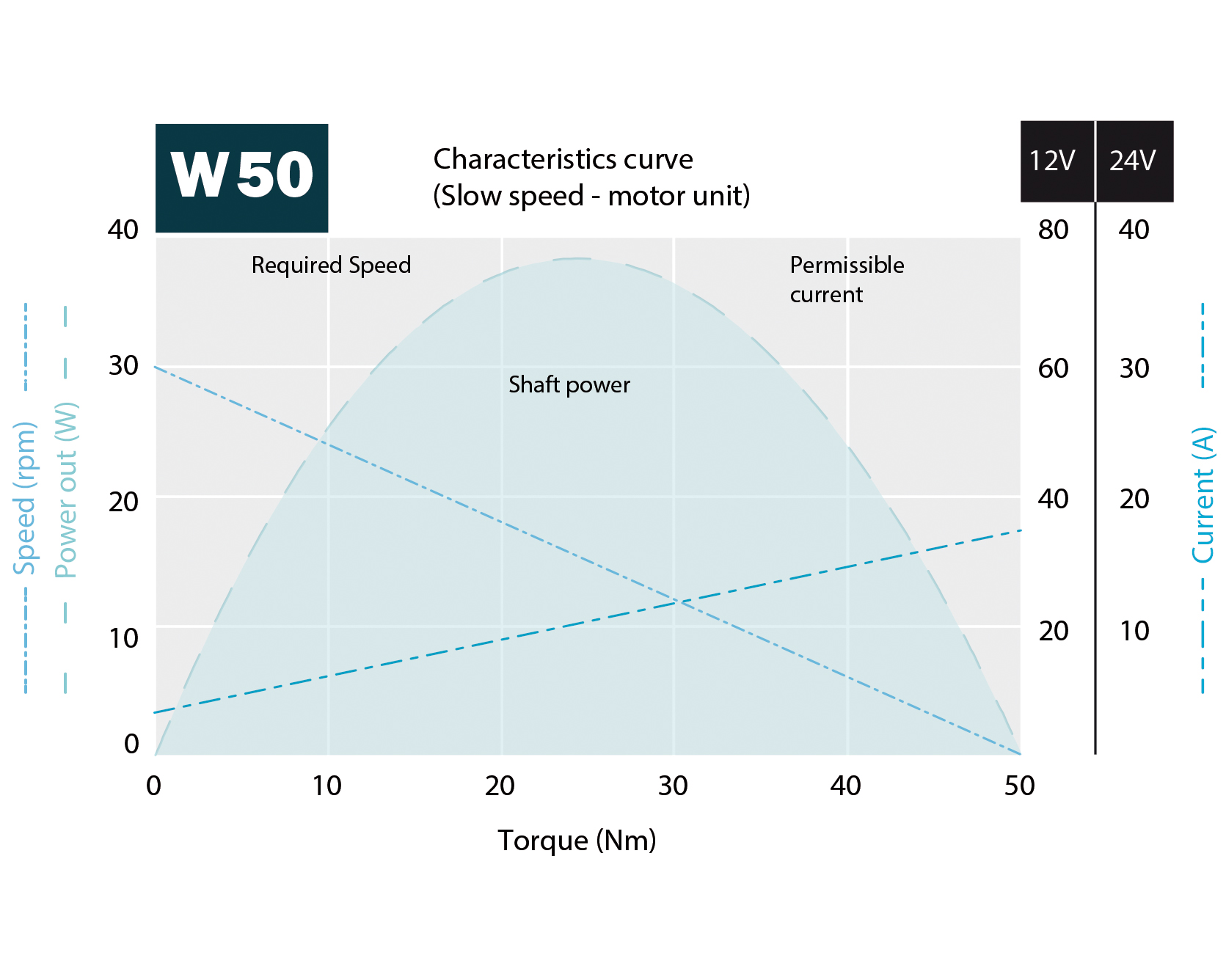

12V 24V
Speed no load – Slow/Fast 30 / 47 RPM 30 / 47 RPM
Current no load  < 6 A < 3 A
Speed Rated Characteristics – Slow/Fast 28 / 43 RPM 28 / 43 RPM
Current Rated Characteristics – Slow/Fast  < 7 / < 10 A  < 3,5 / < 5 A
Stall Characteristics – Slow 50 Nm / < 40 A  50 Nm / < 20 A
Sweep angle 45° – 110° 45° – 110°
Dynamic Park circuit Yes Yes
Insulated ground Yes Yes
CISPR 25 class 1 – EMC Yes Yes
EN 50121-3-2 – EMC No Yes
EN 61373 – Shock & Vibration Yes Yes

Installation Instructions

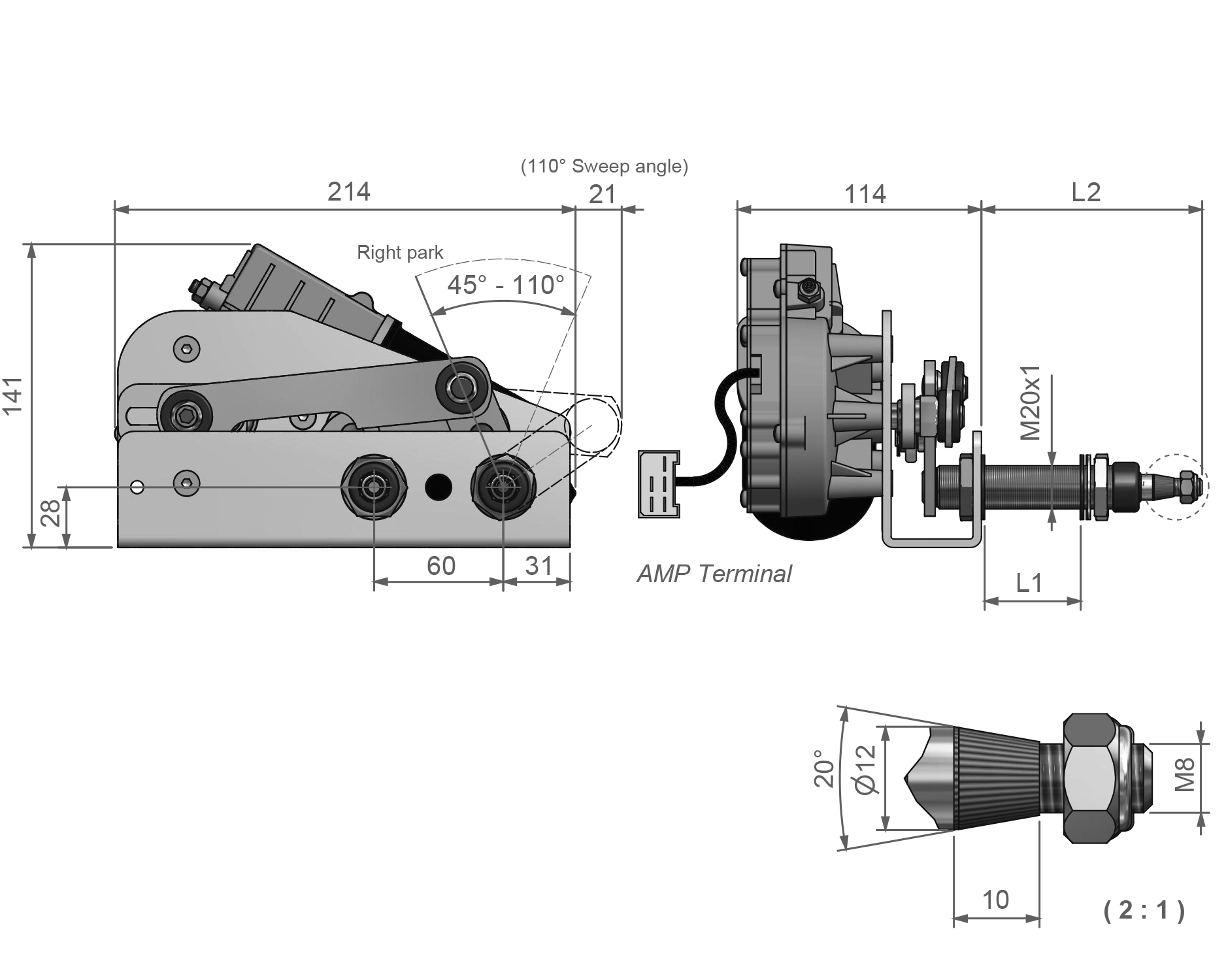

Technical Drawings

Product Data Sheet

Additional information

Options

12V shaft-78mm, 24V shaft-78mm, 12V shaft-103mm, 24V shaft-103mm, 12V shaft-128mm, 24V shaft-128mm
