Description

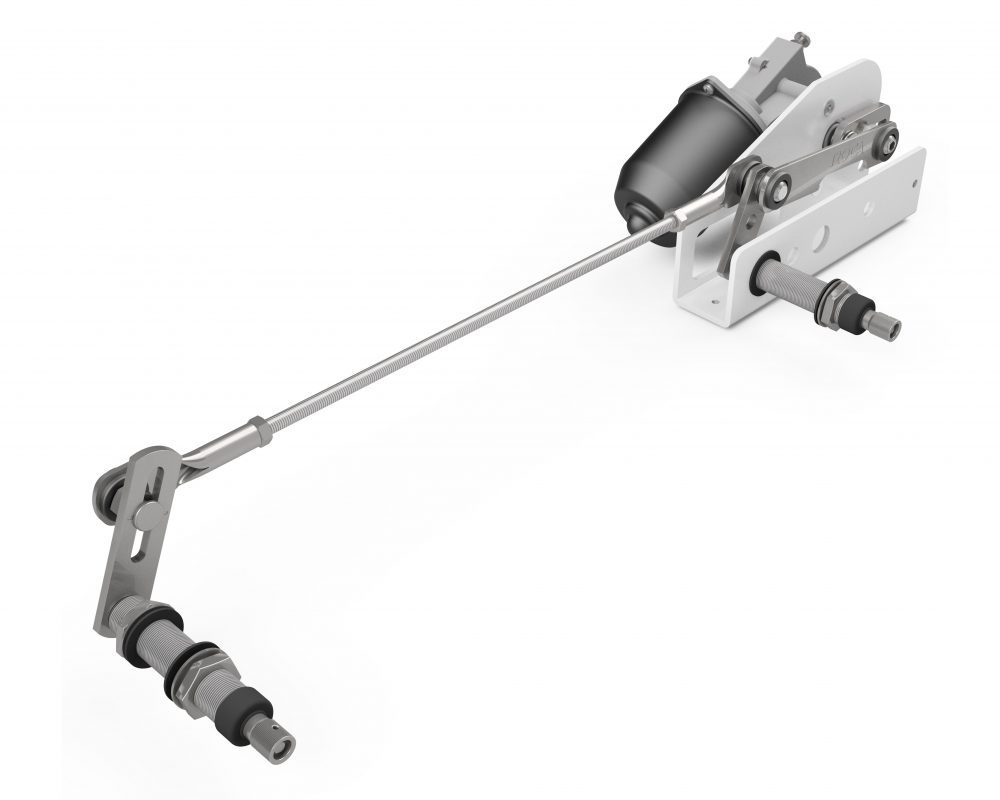

The W38L linked wiper system is designed for heavy-duty applications.

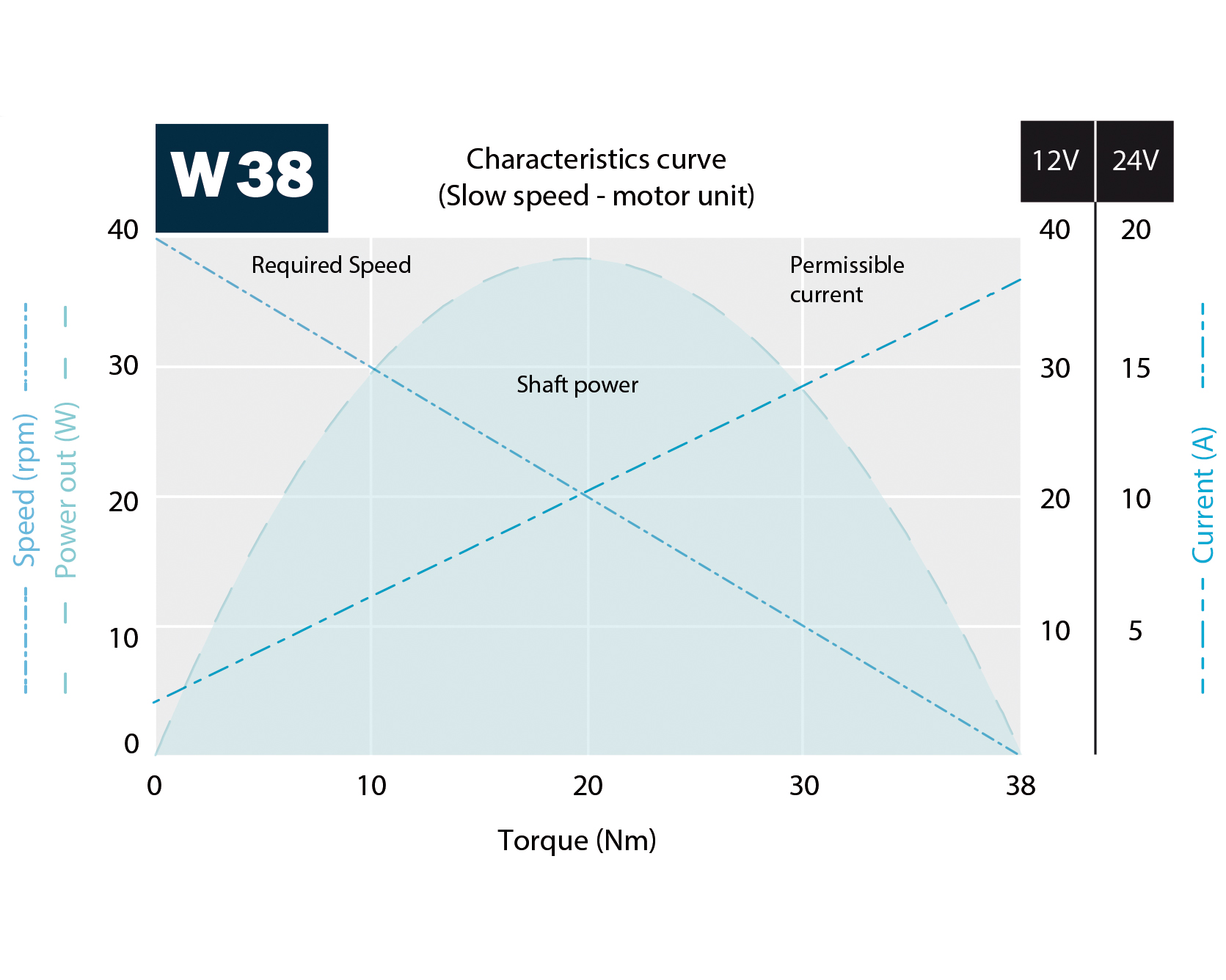

- Torque 38Nm torque
- Powers up to 610 mm / 560 mm arms and blades
- Easily adjusted sweep angle 45 – 110° for maximum visibility

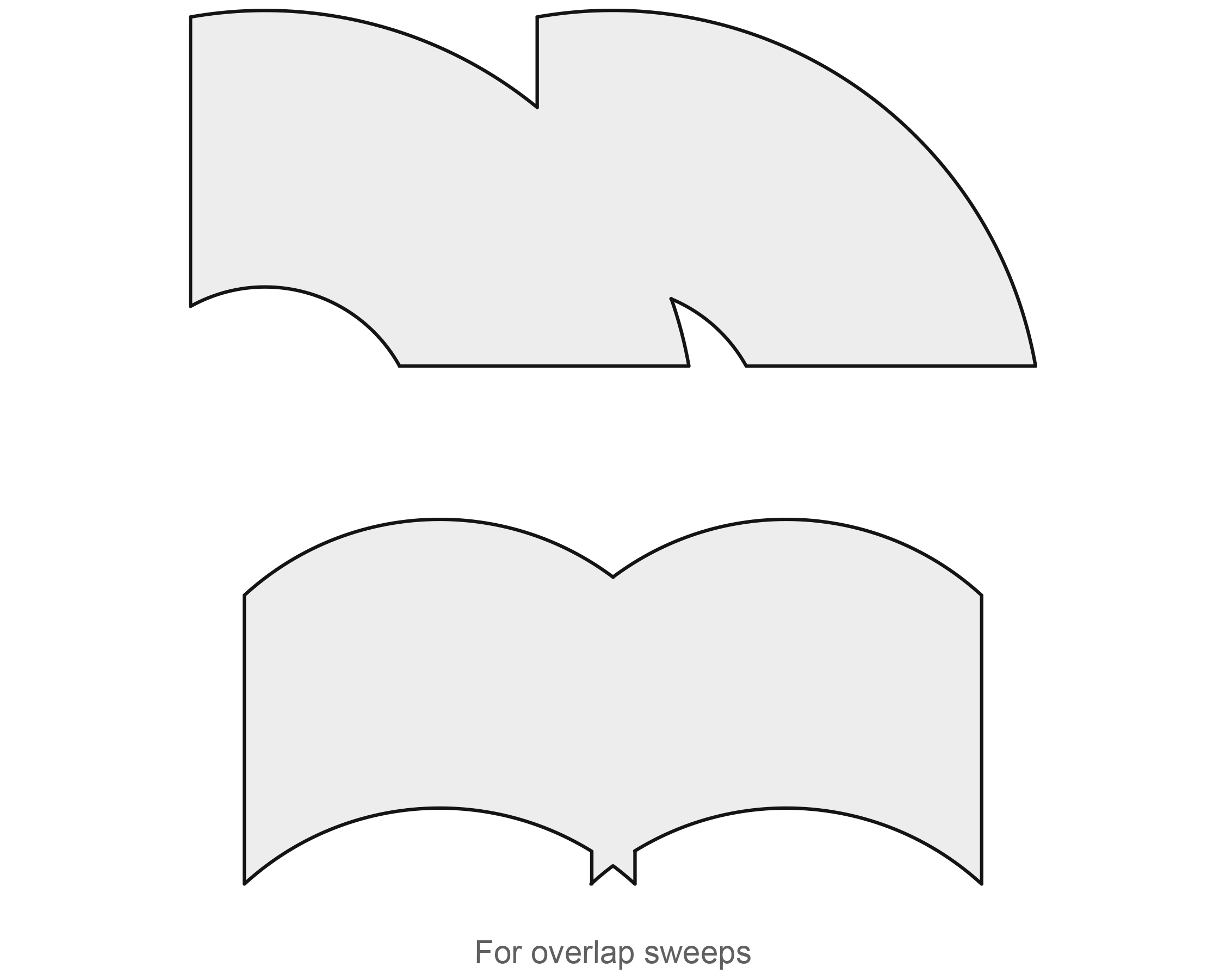

- Possible to have an overlapping sweep
- Dynamic parking can be changed from Left to Right
- Two speeds: 35 sweeps/min and 55 sweeps/min
- Voltage Input: 12 or 24VDC
- EMC protected
- Insulated ground for metal, GRP, and wooden boats
- Pantograph or pendulum arms
- L3 = 160 – 450 (750) mm*
*) With extension tube
- L4 = L3 – 100 mm
- A1 = 45 – 110°
- A2 = 10 – 110°
