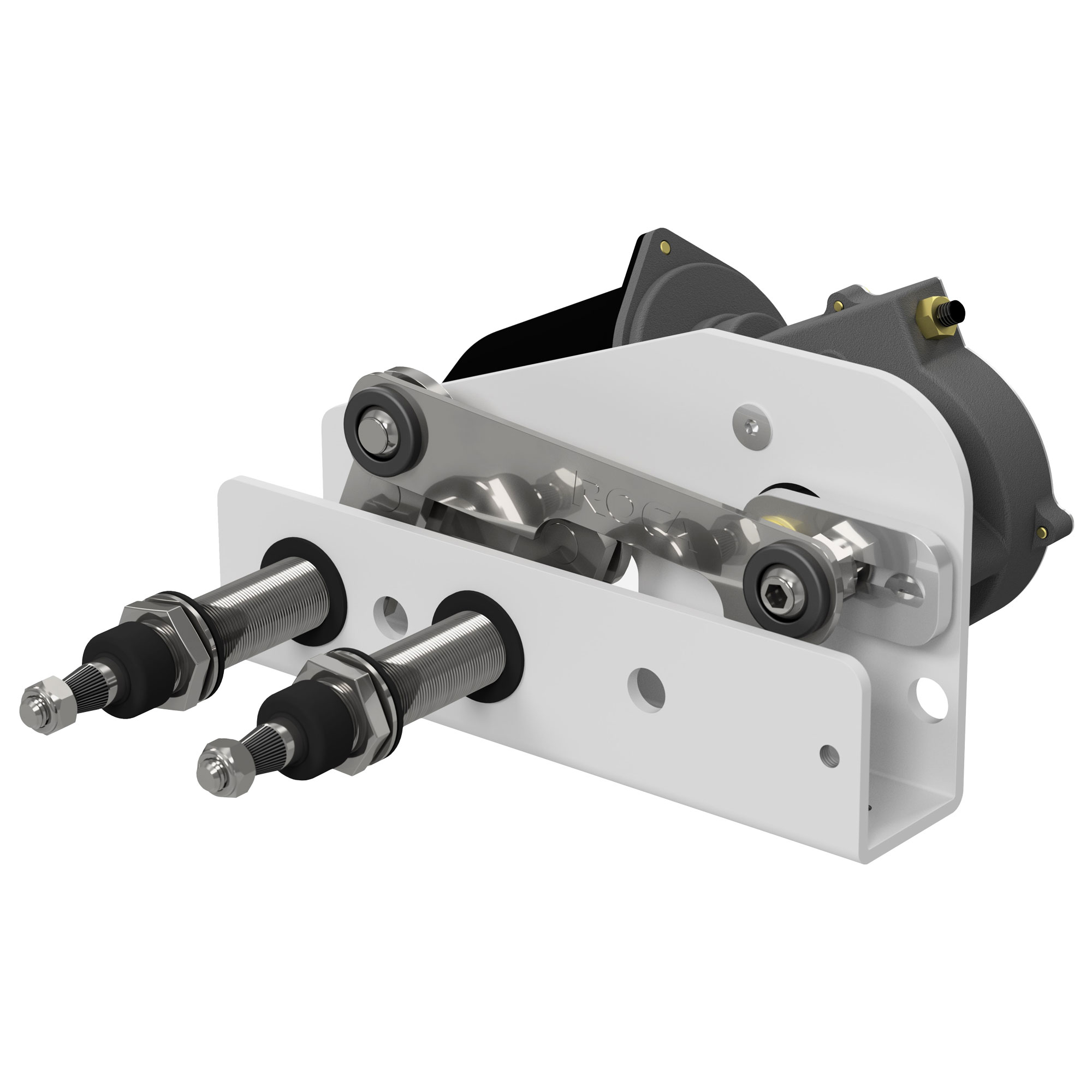

W38 Windscreen Wiper Motor – Dual Drive

Description

The W38 wiper system is strong and flexible and made for the toughest conditions.

This windshield wiper motor enables the biggest sweep range possible for the very big front windows on a modern boat.

• 38 Nm torque
• Powers up to 900 mm / 35” arms and blades
• Two speeds: 35 sweeps/min and 55 sweeps/min
• Easily adjustable sweep angle 45 – 110°
• Voltage Input: 12 or 24 VDC
• EMC protected
• Driveshafts in stainless steel
• Insulated ground for metal, GRP, and wooden boats
• Dynamic parking can easily be changed from Left to Right

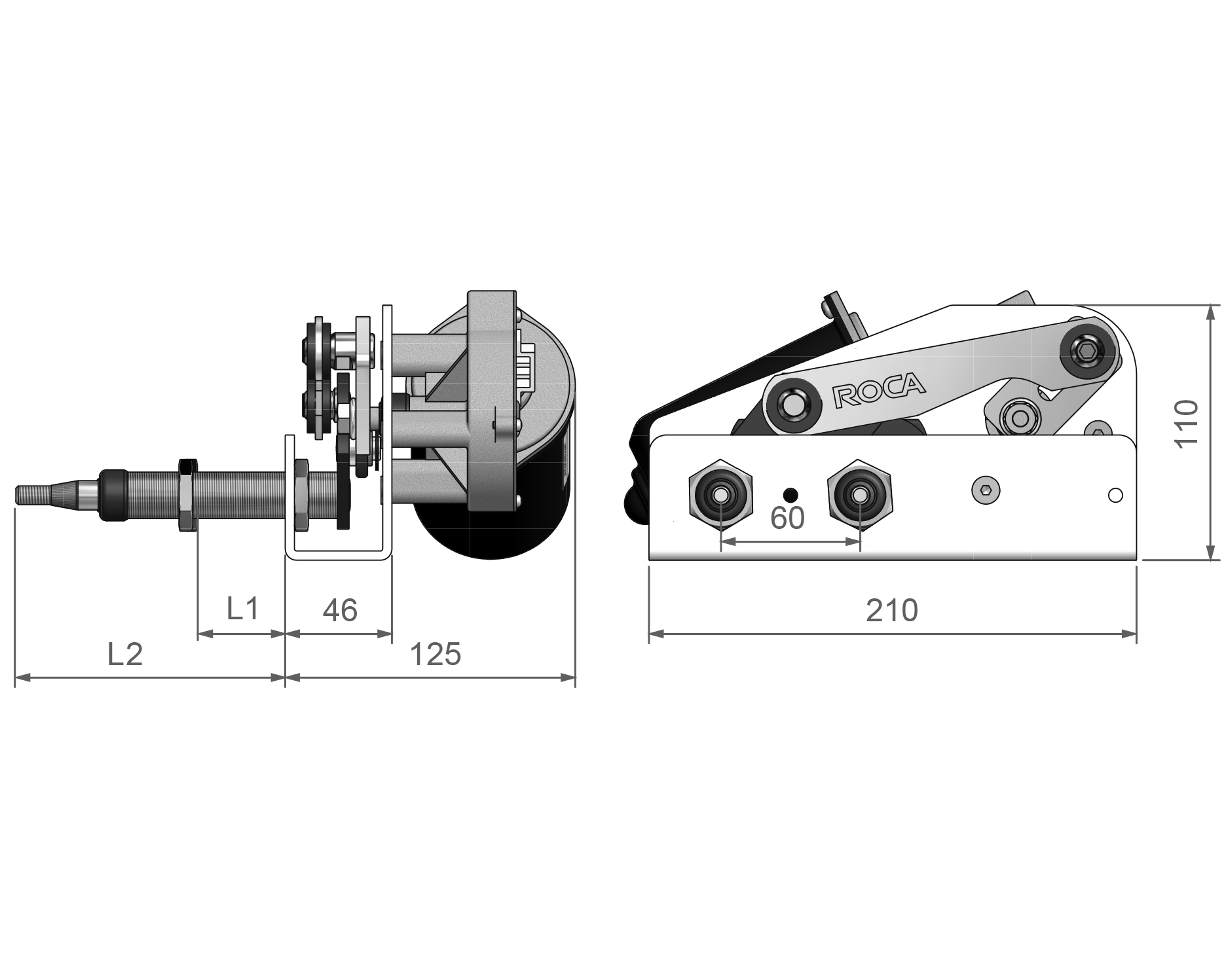

Technical Drawings

Installation Instructions

Product Data Sheet
