Sunshade System

Description

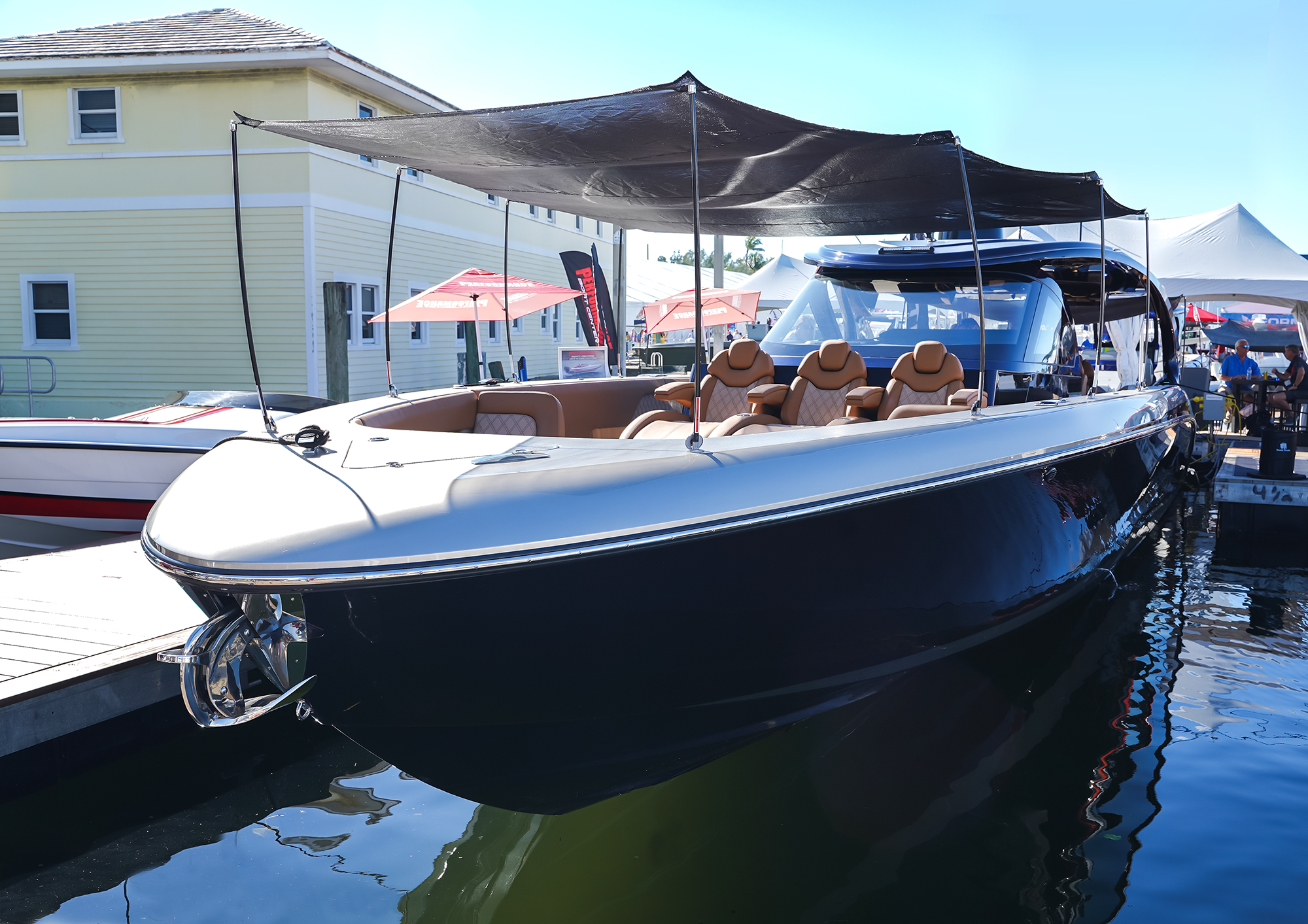

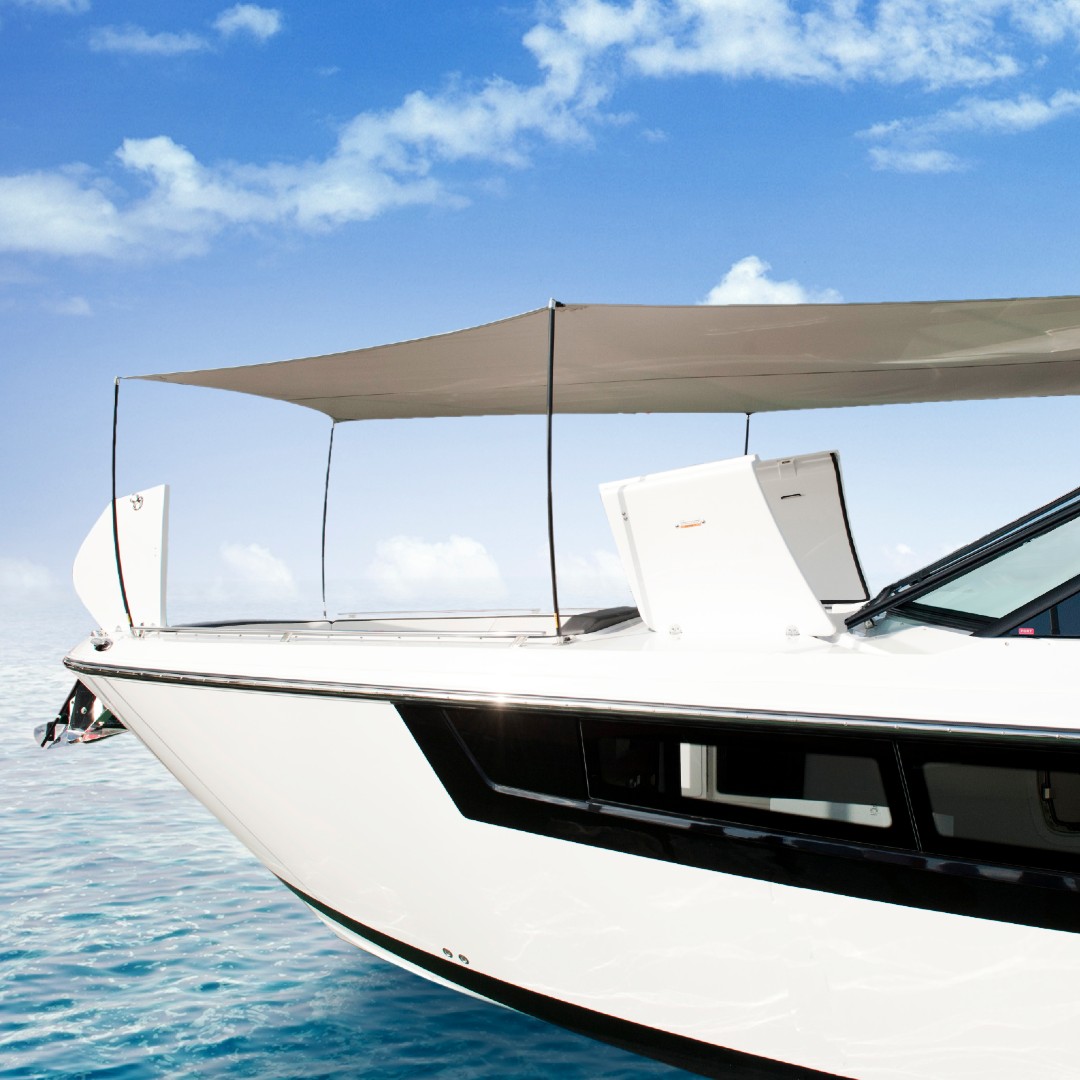

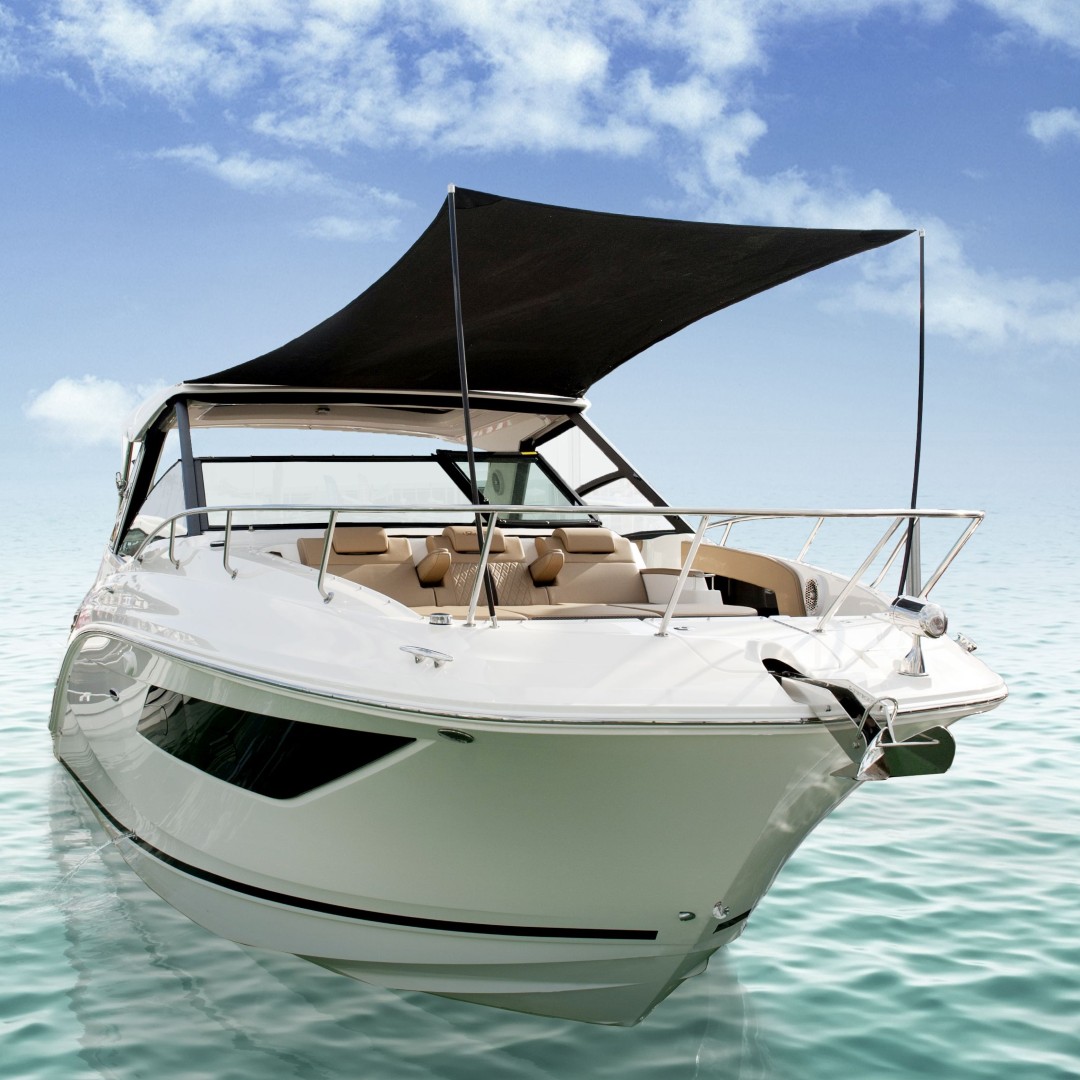

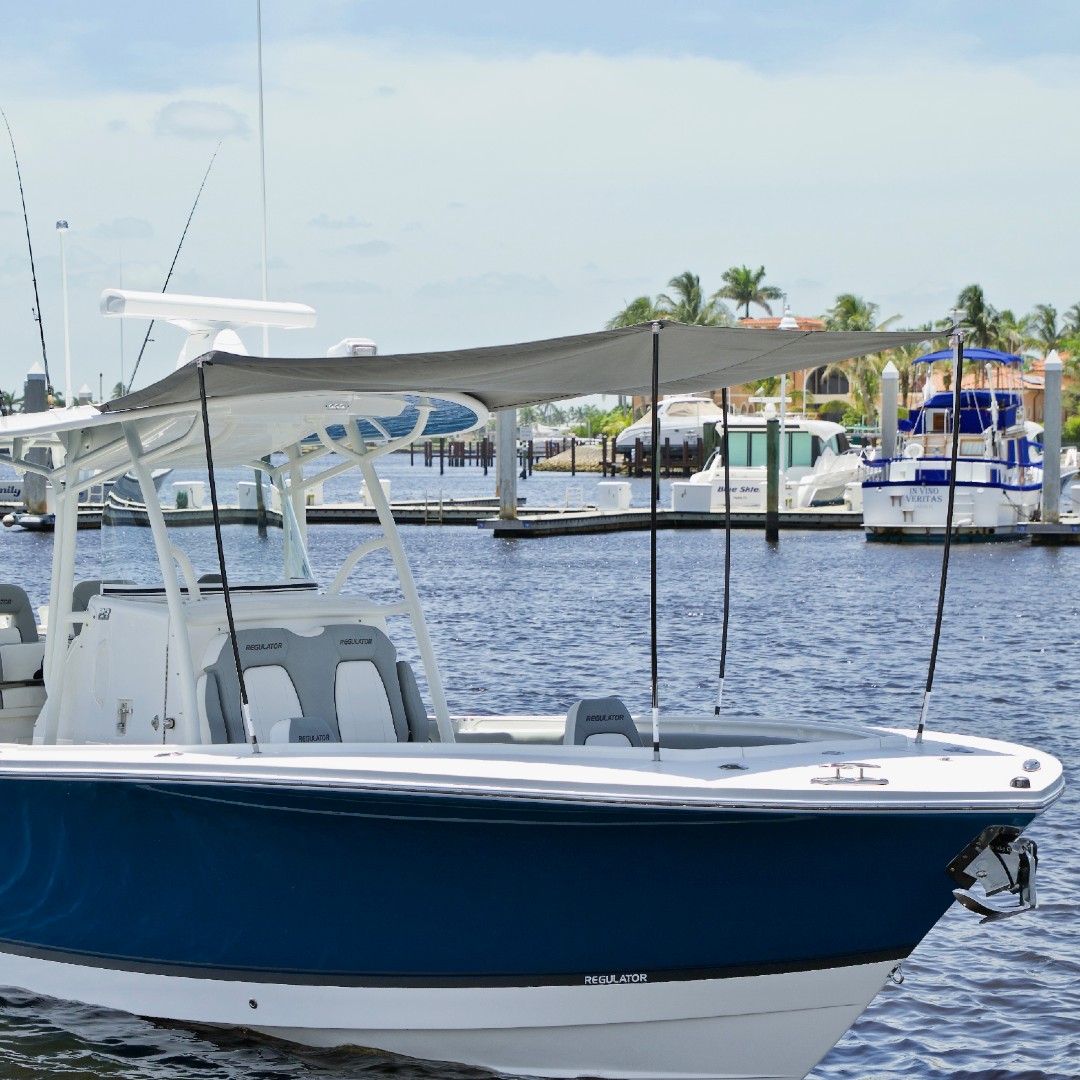

Our Sunshade System is a premium yet cost effective system that can be fitted to virtually any boat. It is self-tensioning, free standing and easy to erect and store.

A variety of sockets can be installed in any desired position for a more complete coverage to traditional systems.

The poles can be used on their own, or in conjunction with the boats existing superstructure.

Fabric is not supplied as standard. Instructions will be supplied, and cover fabric can be quoted for individually. Please contact the office for further details.

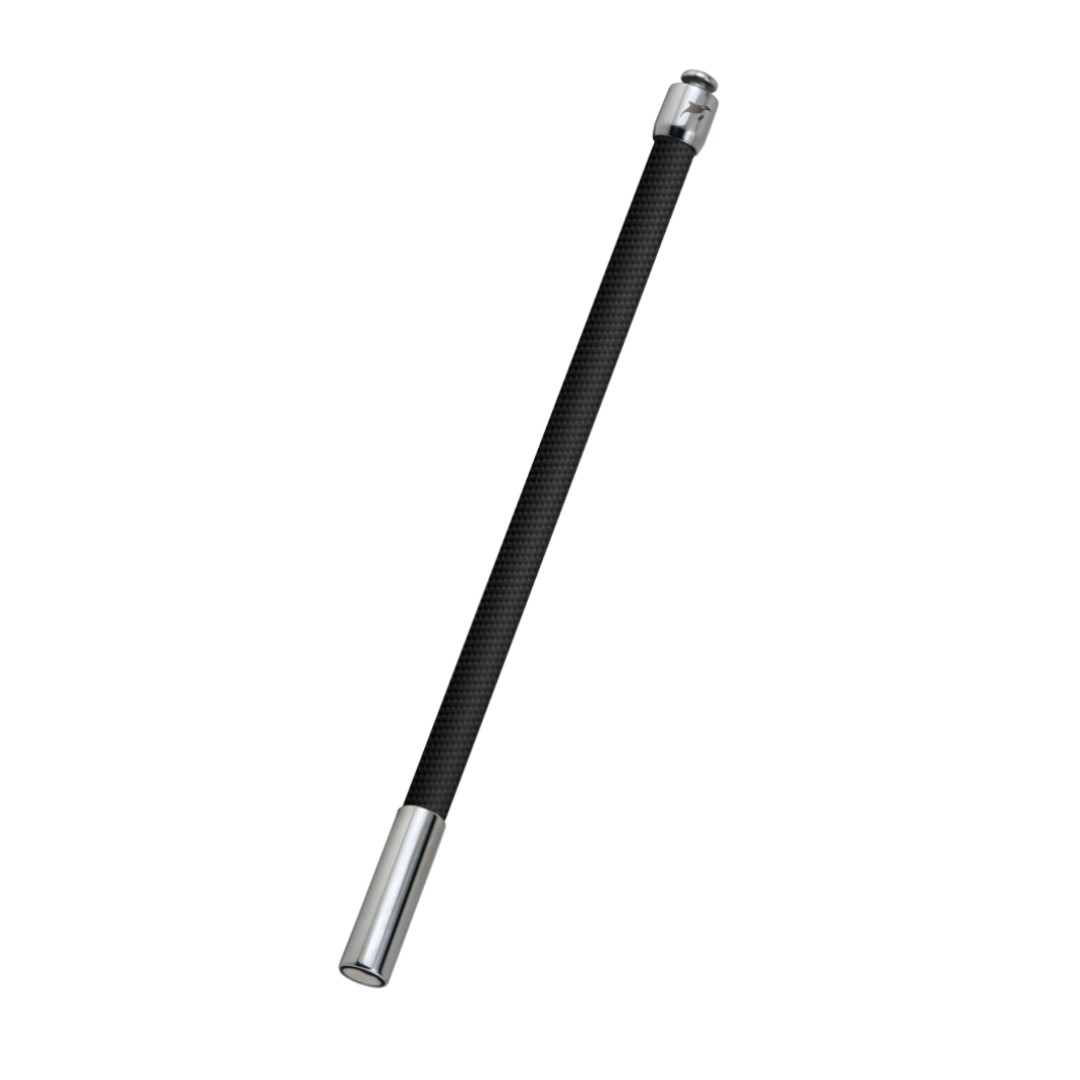

Carbon Fibre Poles with 316 Stainless Steel Fittings:

70-0506851 – Carbon Fibre Pole 1215mm Length

70-0506853 – Carbon Fibre Pole 1535mm Length

70-0506855 – Carbon Fibre Pole 1845mm Length

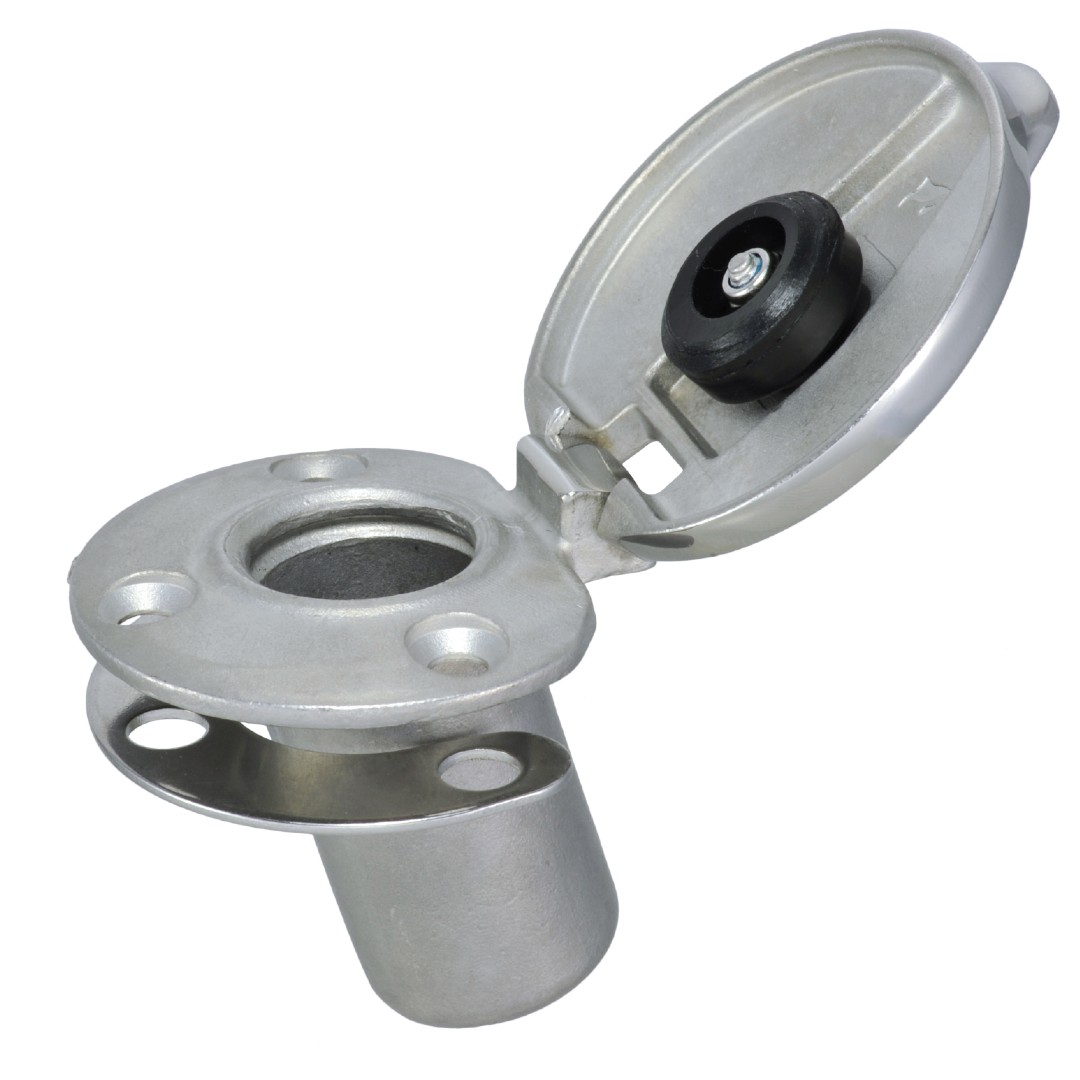

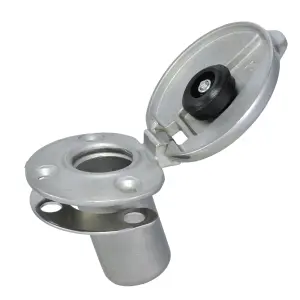

70-0506865 – Sunshade Socket with Cap:

Designed with a 15° angle to self-tension the poles ensuring secure installation. Anti-rattle design thanks to the nylon bushing located underneath the cap hinge, allowing the cap to stay in the open or closed position. The cap of this socket is designed to prevent water flow directly into the socket (However, this socket is not self-draining and must be maintained). 28mm Cut out required with a 15° angle.

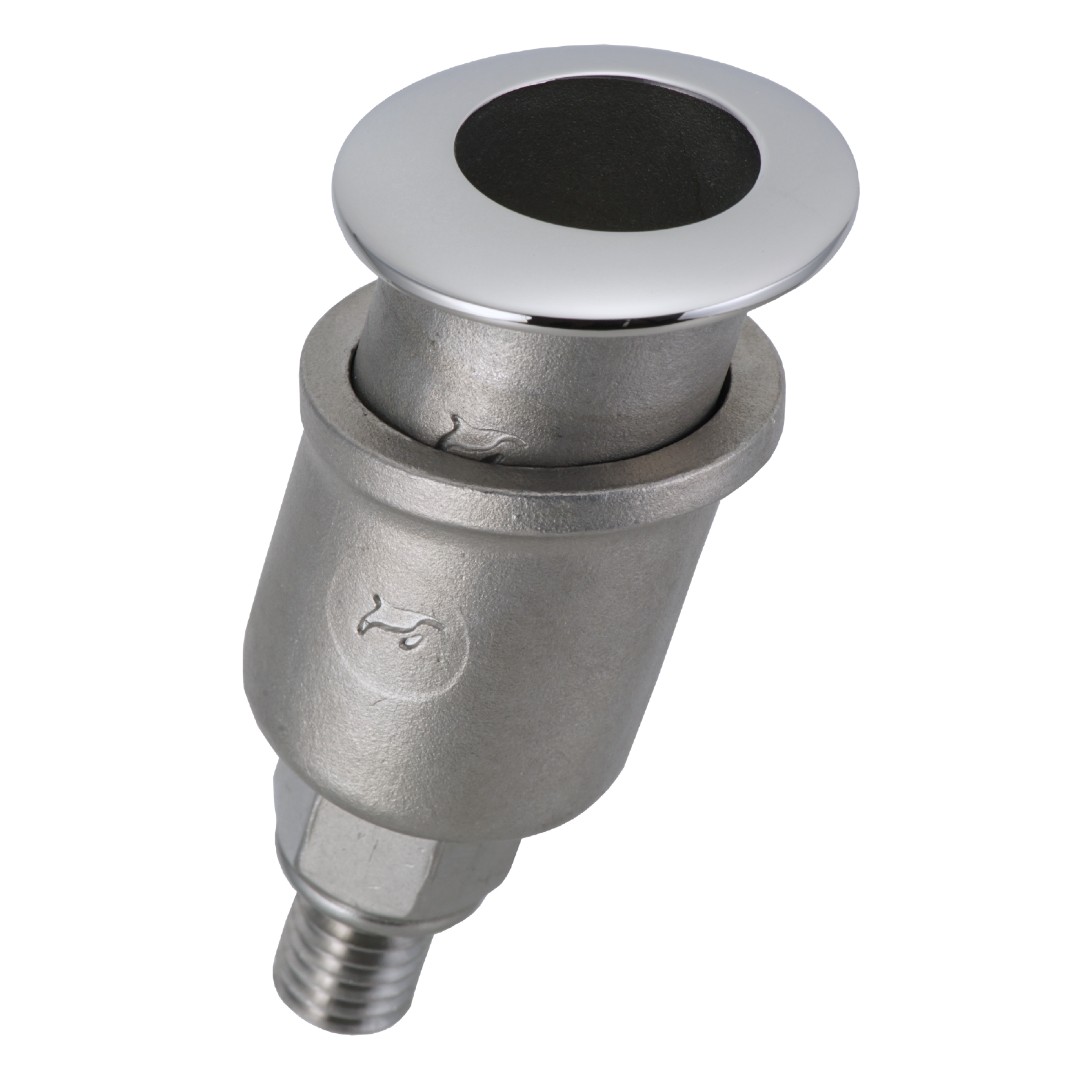

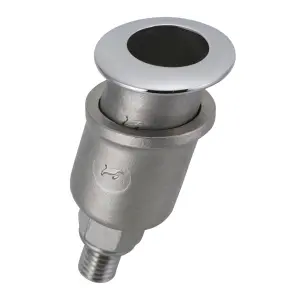

70-0506867 – Sunshade Socket:

Designed with a 15° angle to self-tension the poles ensuring secure installation. Incorporated self-draining design for 1 1/2" draining hose. The provided seal gasket eliminates the need for caulking. 28mm Cut out required with a 15° angle.

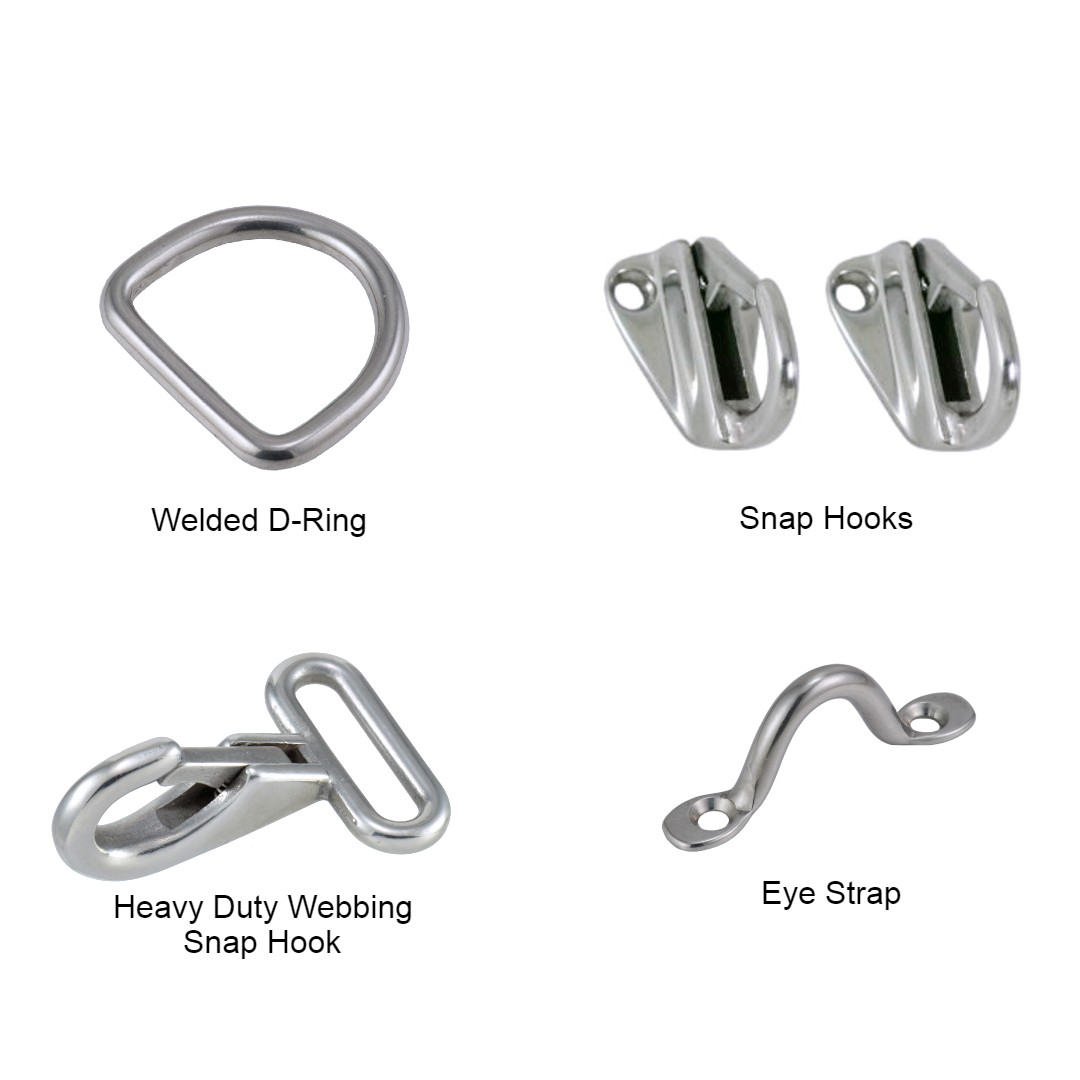

Stainless Steel Fittings for Sunshade Fabric:

D-Ring for cover to pole linkage / Snap Hook, Webbing Snap Hook & Eye Strap for Super Structure attachment.

70-0618004 – Welded D Ring

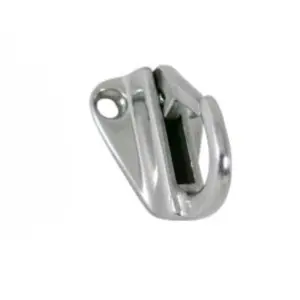

70-8631407 – Snap Hook

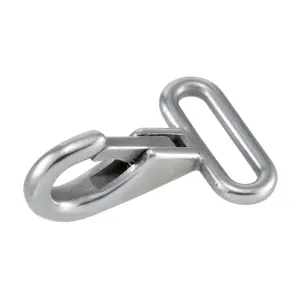

70-8928263 – Heavy Duty Webbing Snap Hook

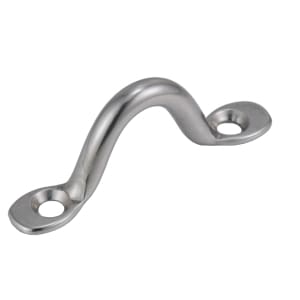

70-2110014-8 – Eye Strap
