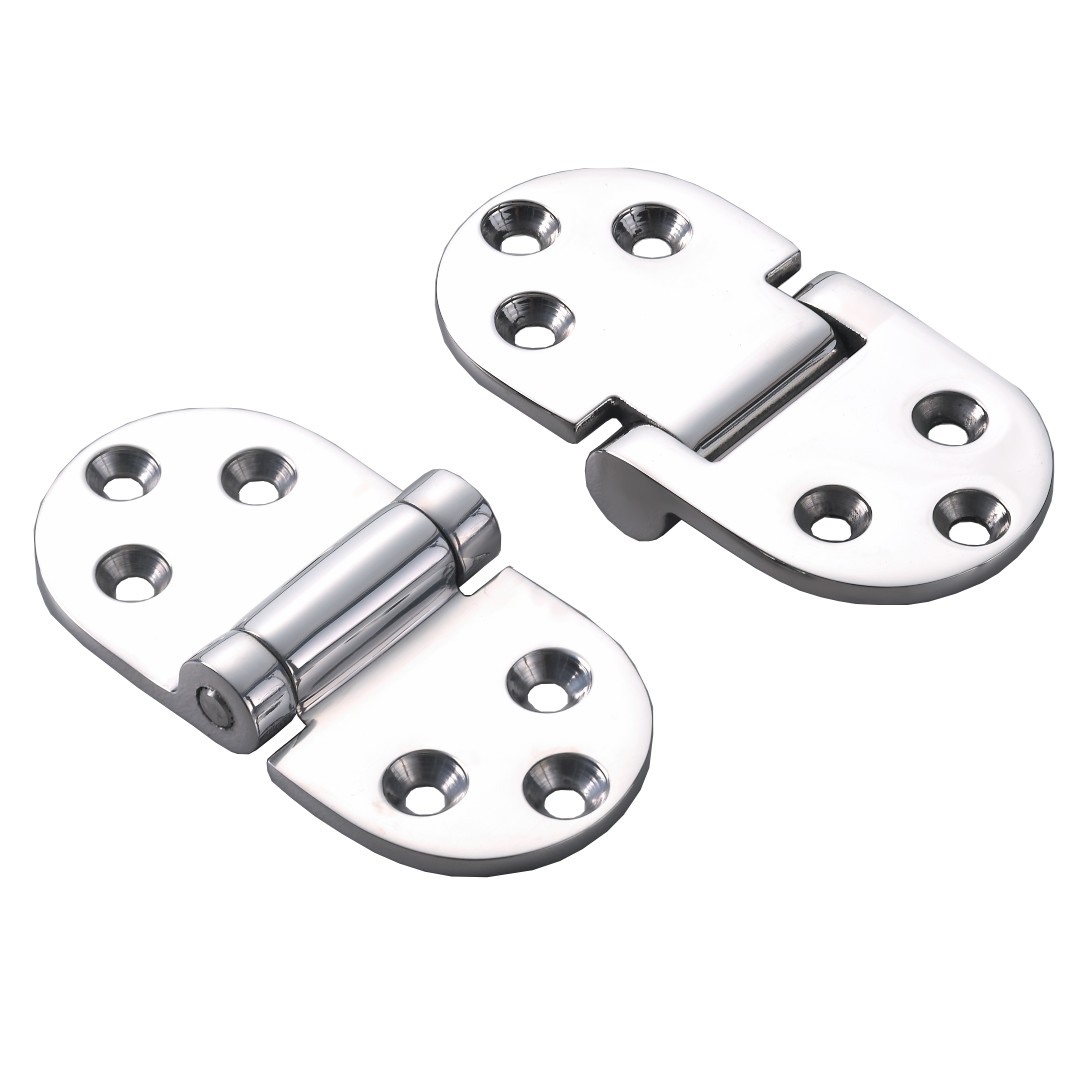

Stainless Steel Torque Hinge

Cast 316 Stainless Steel with constant torque to hold hatch, door or cover in any desired position.

Description

2 hinges can hold a 2kg hatch that is 40cm wide. Tested to 20'000 cycles with less than 20% loss of friction. #8 CSK Screw.

10A-88384 - 67mm x 38mm (Top Pin) - 30 KGF-CM +/- 15%

10A-88384R - 67mm x 38mm (Under Pin) - 30 KGF-CM +/- 15%

10A-88393 - 38mm x 38mm (Top Pin) - 30 KGF-CM +/- 15%

10A-88393R - 38mm x 38mm (Under Pin) - 30 KGF-CM +/- 15%

10A-86394 - 76mm x 38mm (Top Pin) - 30 KGF-CM +/- 15%

10A-86394R - 76mm x 38mm (Under Pin) - 30 KGF-CM +/- 15%

10A-88395 - 51mm x 76mm (Top Pin) - 40 KGF-CM +/- 15%

10A-88395R - 51mm x 76mm (Under Pin) - 40 KGF-CM +/- 15%

Technical Drawing PDF Documents

Technical Drawing PDF - 10A-88384

Technical Drawing PDF - 10A-88393

Technical Drawing PDF - 10A-86394

Technical Drawing PDF - 10A-88395

Additional

Options67mm x 38mm (Top Pin), 67mm x 38mm (Under Pin), 38mm x 38mm (Top Pin), 38mm x 38mm (Under Pin), 76mm x 38mm (Top Pin), 76mm x 38mm (Under Pin), 51mm x 76mm (Top Pin), 51mm x 76mm (Under Pin)
BrandC-Quip
