Stainless Steel Friction Hinges
Constant torque 316 Stainless Steel hinge. Beautifully hand buffed to a mirror polish.
- Stock Level
- In Stock
- SKU
- P-70-0319227
Description
Revolutionary patented technology designed into hinge barrel construction creates constant torque.
Designed to hold door open without any torque adjustment. Ideal for overhead door, baitwell lids, glove box, interior door, anchor locker, electronics panels, etc.
Passed 10,000 cycle test within 10% decrease in torque; 20,000 cycle test within 20% decrease. 500 hour salt-spray tested. #8 or M4 Screw
Availble in three different sizes:

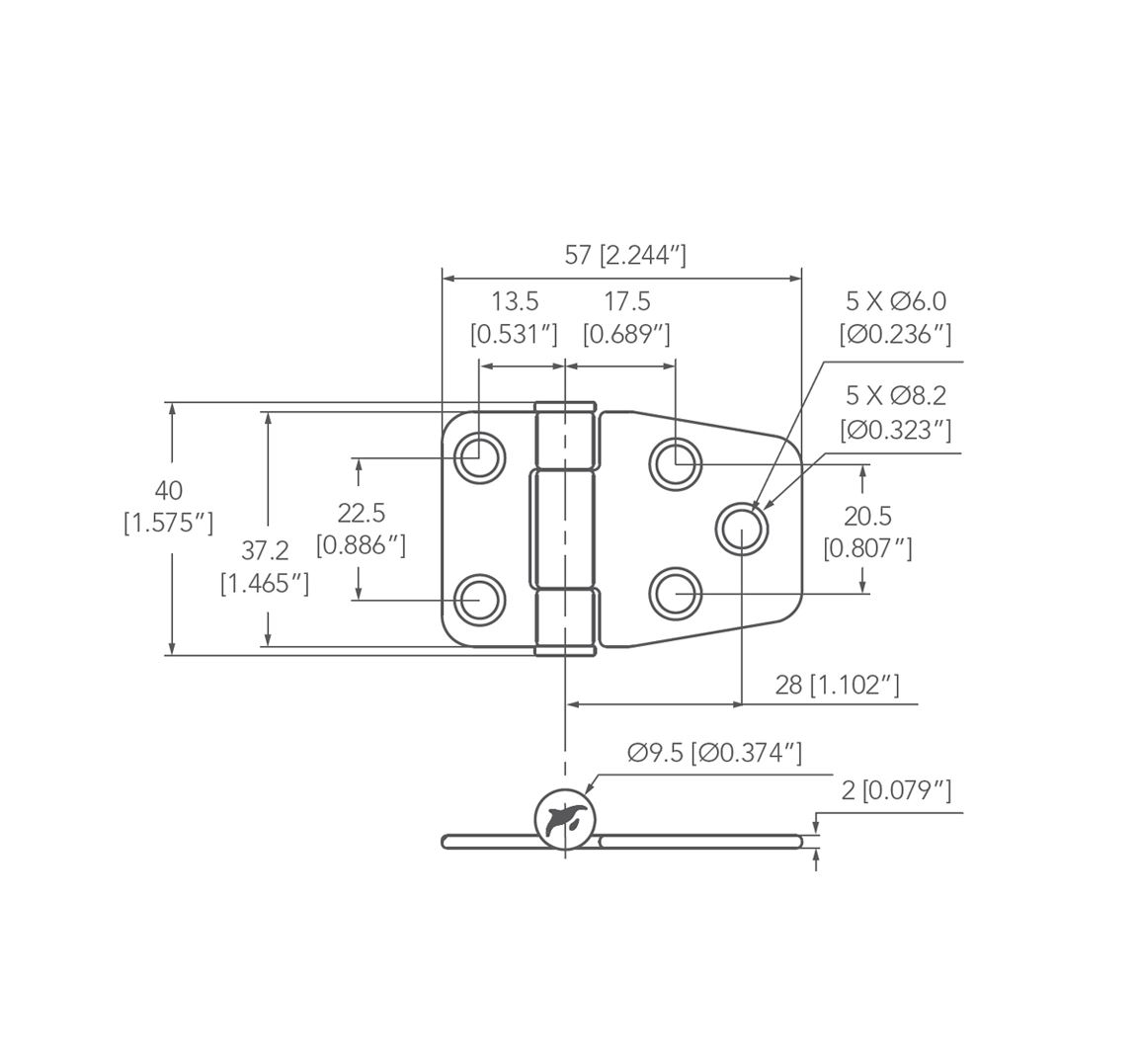

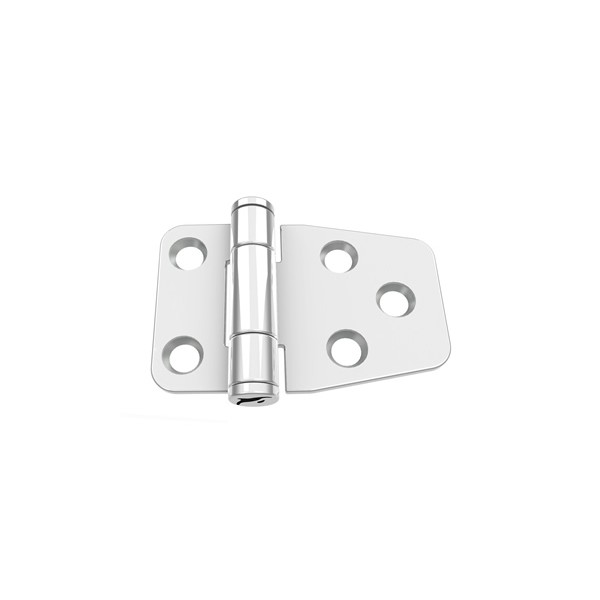

70-0319227 - 40mm x 57mm (Asymmetric Leaf)

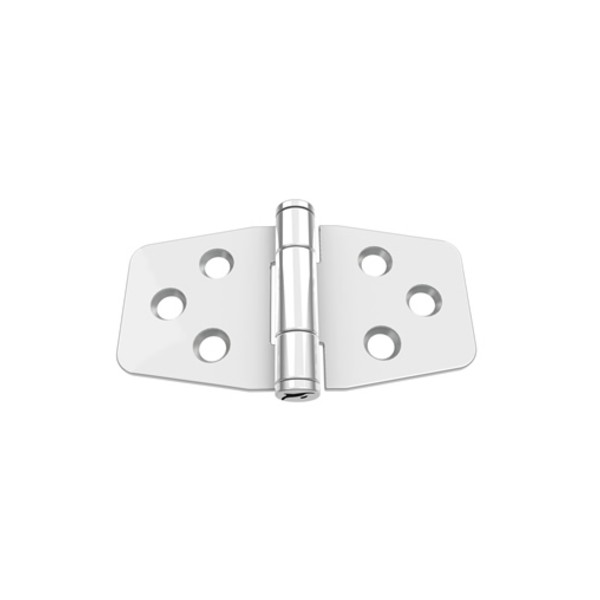

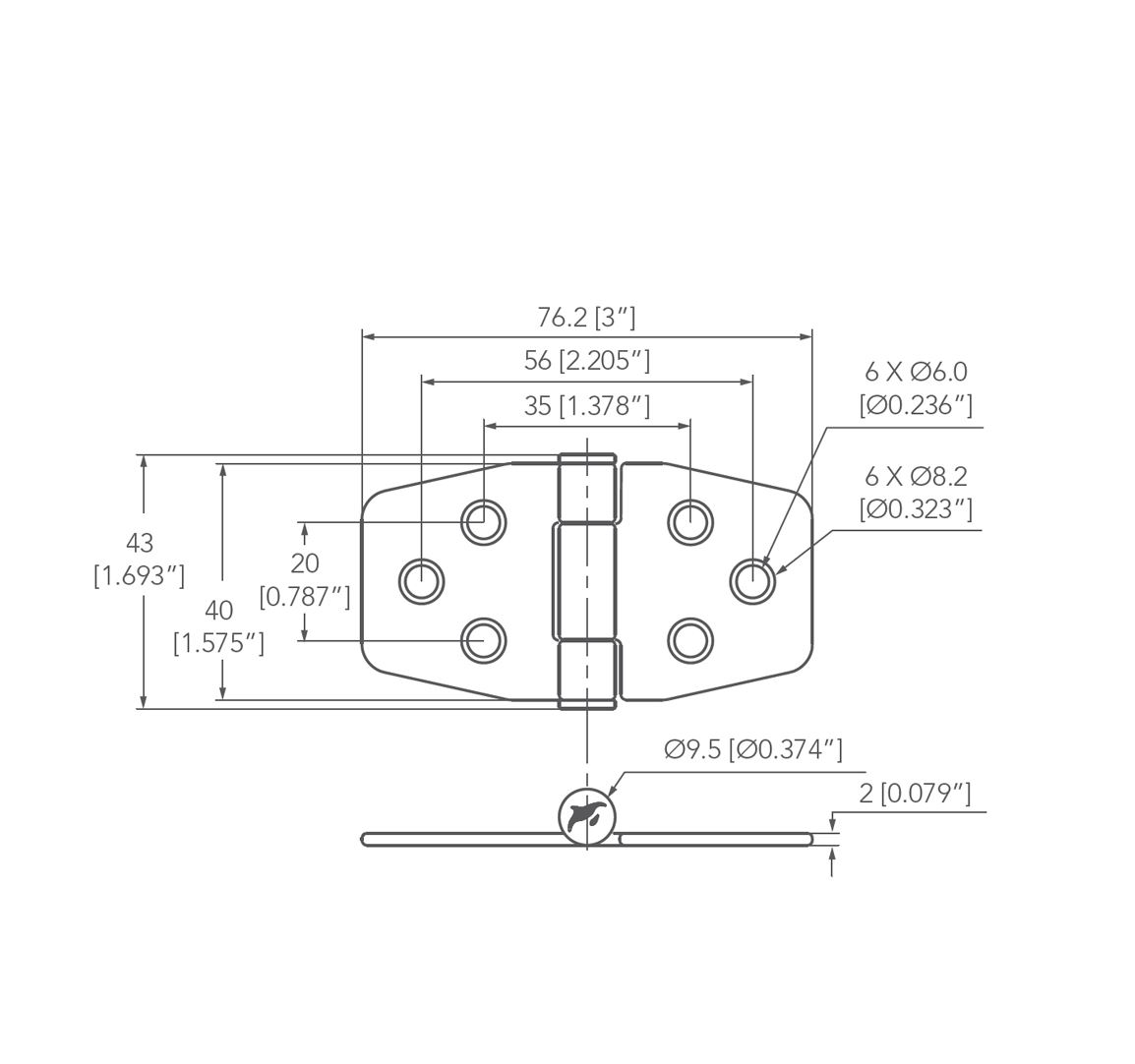

70-0319223 - 40mm x 76mm (Matched Leaf Size)

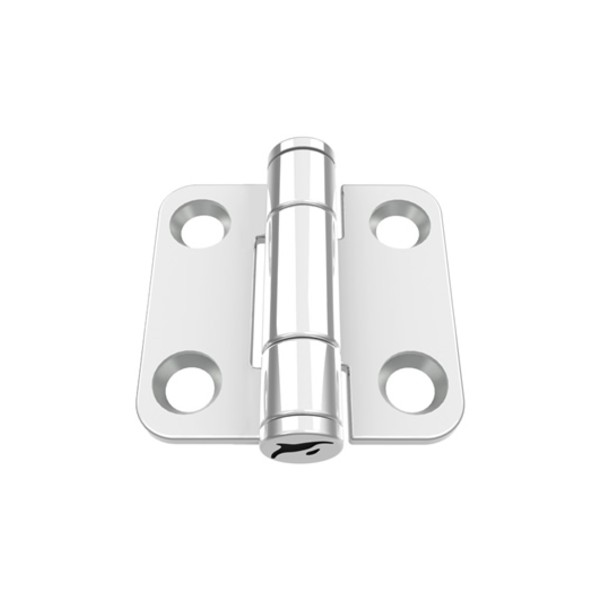

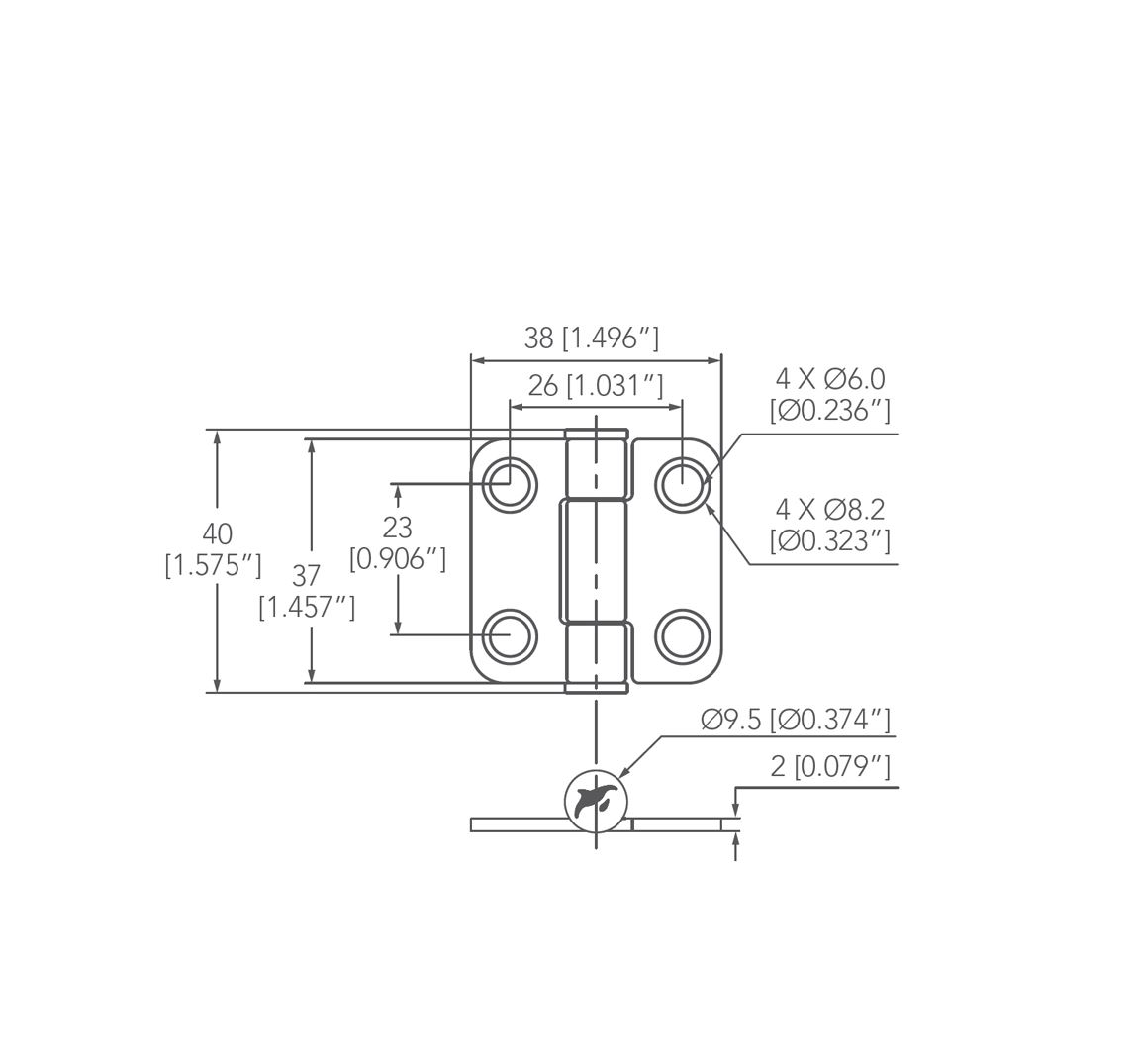

70-0319221 - 37mm x 38mm (Square)
Additional
| Options | 37 x 38mm (Square), 40 x 57mm (Aysmmetric Leaf), 40 x 76mm (Matched Leaf Size) |
|---|---|
| Brand | C Quip |
