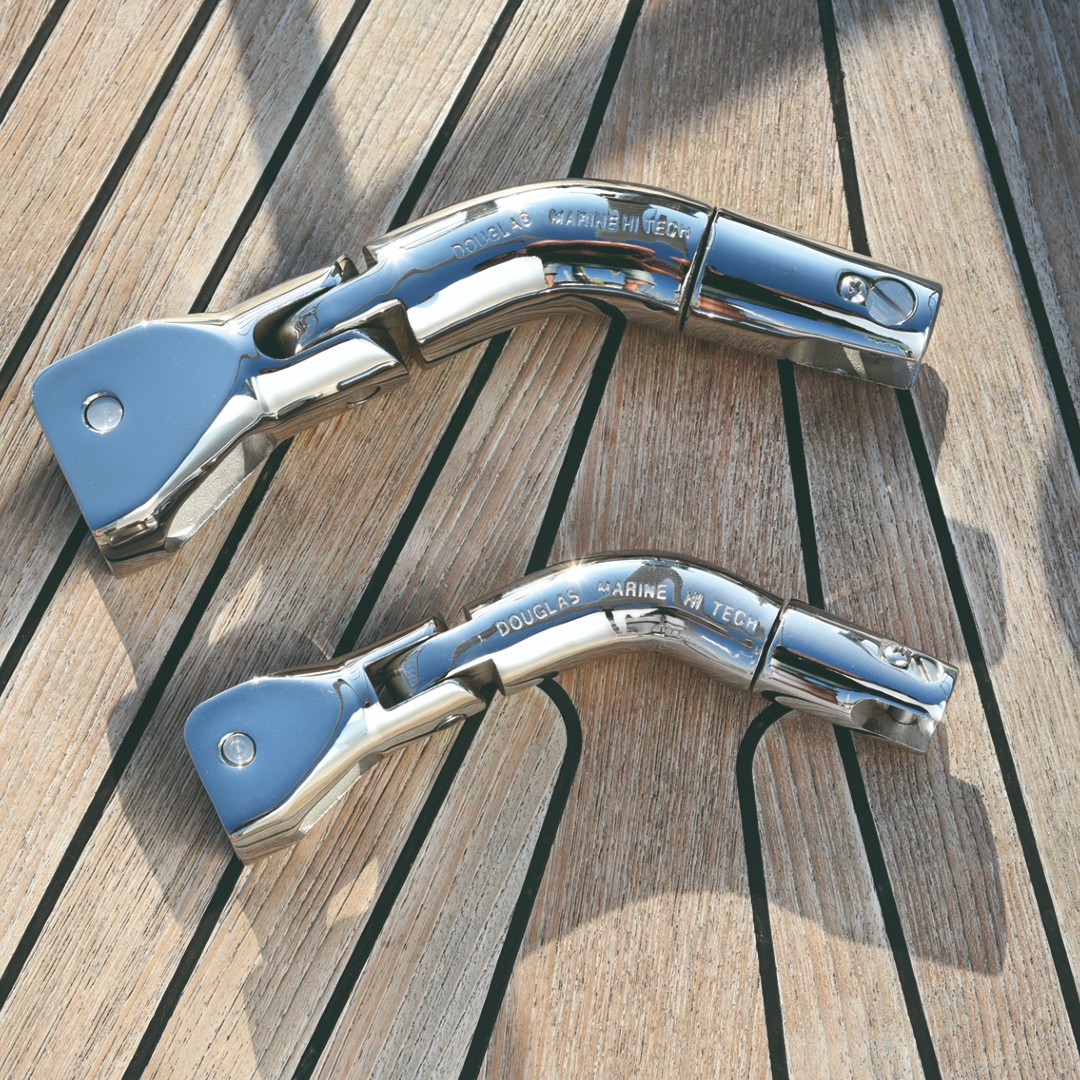

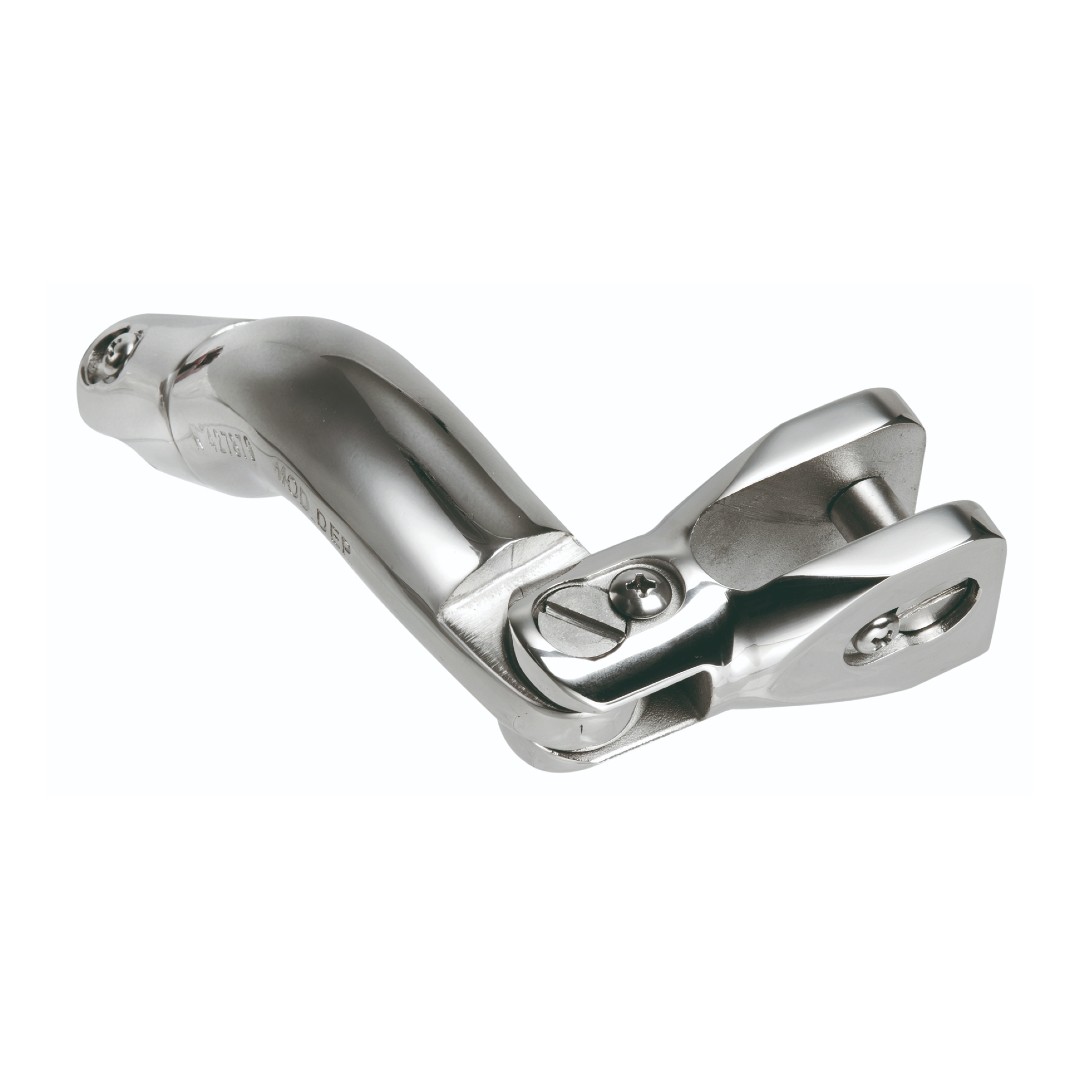

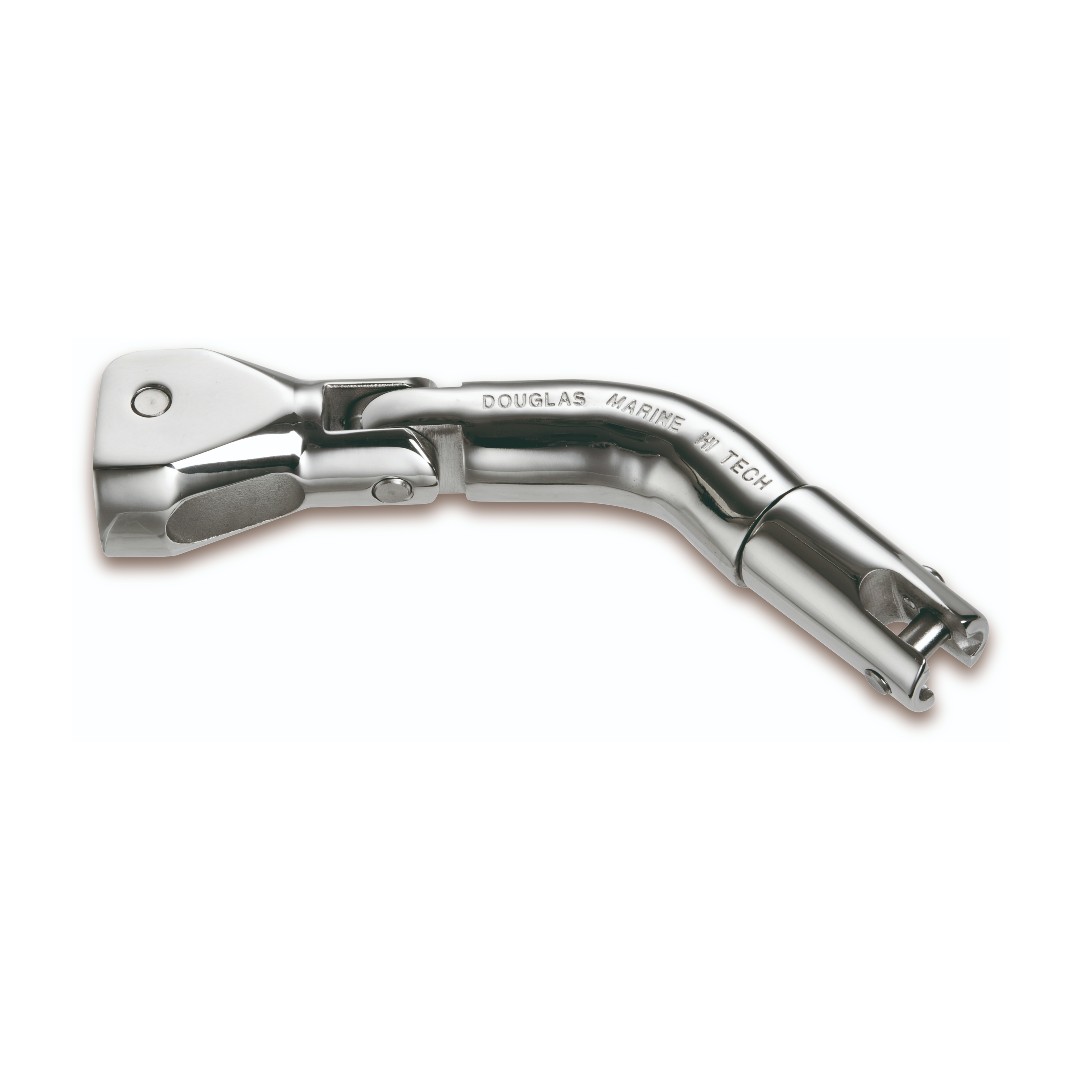

Stainless Steel Double Joint Anchor Connector

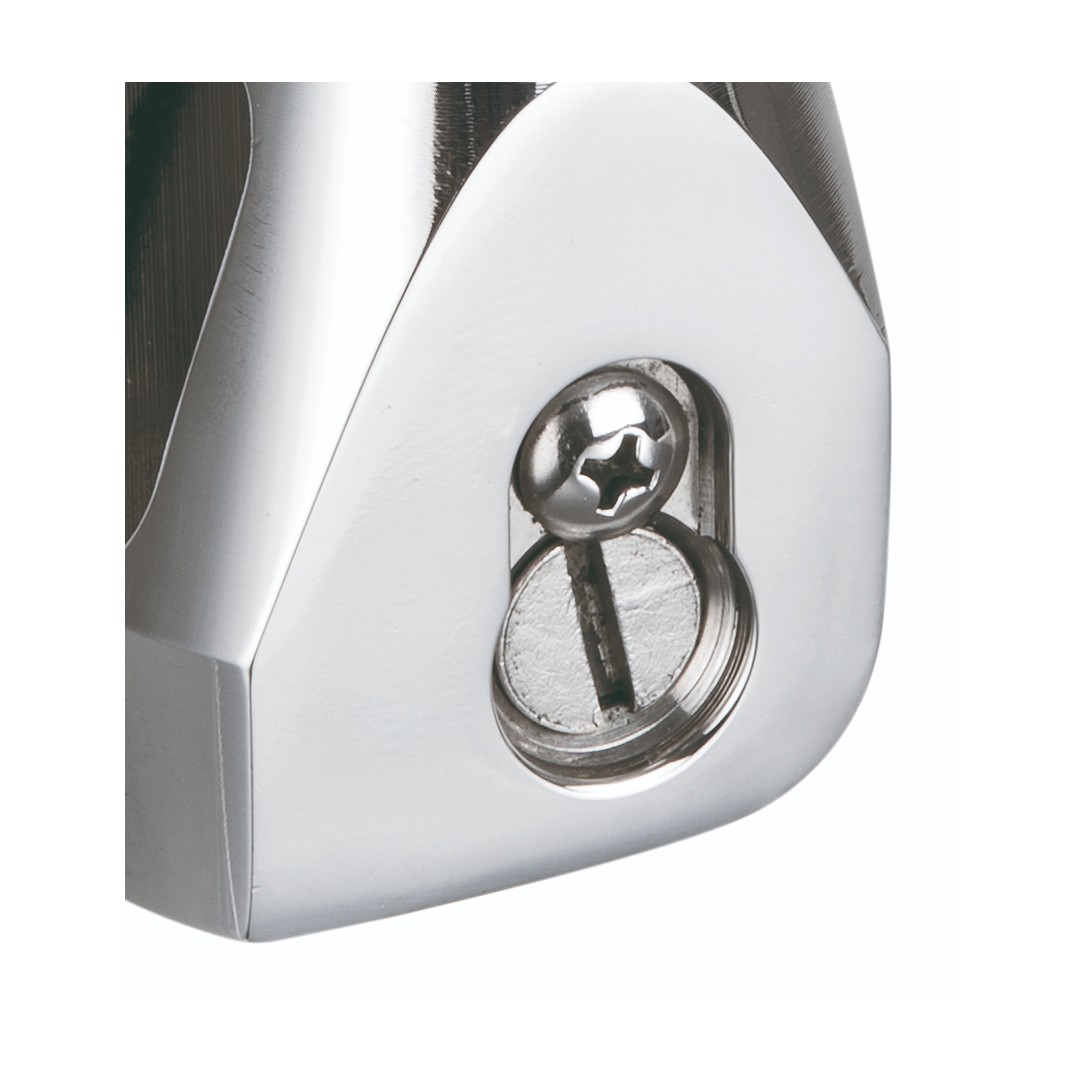

From Douglas Marine. Double joint which avoids lever boom affect. Anti-Rattle. Provided with security screws.

Description

Available in 3 different sizes

56A-010-P1:

  • 6-8mm Diameter Chain
  • 200mm Length
  • 3200kg Breaking Load
  • Recommended Anchor Weight 7-17kg

56B-010-P2:

  • 10-12mm Diameter Chain
  • 230mm Length
  • 8500kg Breaking Load
  • Recommended Anchor Weight 20-30kg

56B-010-P4:

  • 12mm Diameter Chain
  • 235mm Length
  • 12000kg Breaking Load
  • Recommended Anchor Weight 30-50kg

Additional

Options200mm Overall Length, For Anchors 7-17kg, 230mm Overall Length, For Anchors 20-30kg, 235mm Overall Length, For Anchors 30-50kg
BrandDouglas A
