Stainless Steel Compression Fasteners
316 Cast Stainless Steel with heavy duty cast construction. Spring Loaded "Cam-Over" Latch.
Description
The strike Pin has an offset screw hole allowing tension adjustment by 1mm. The new installation Jig allows for accurate installation of the Strike Pin

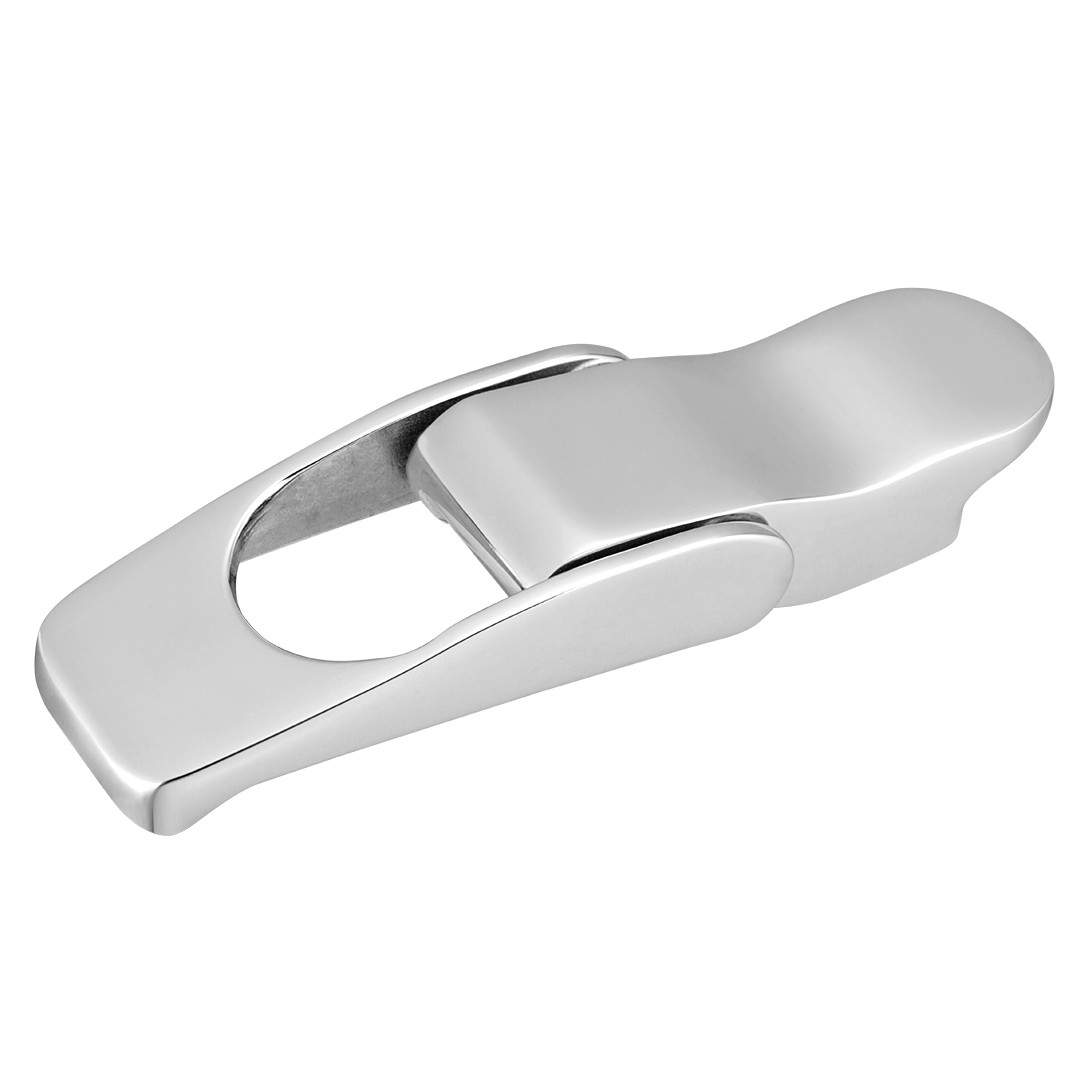

70-9907881 - 82mm No Lock

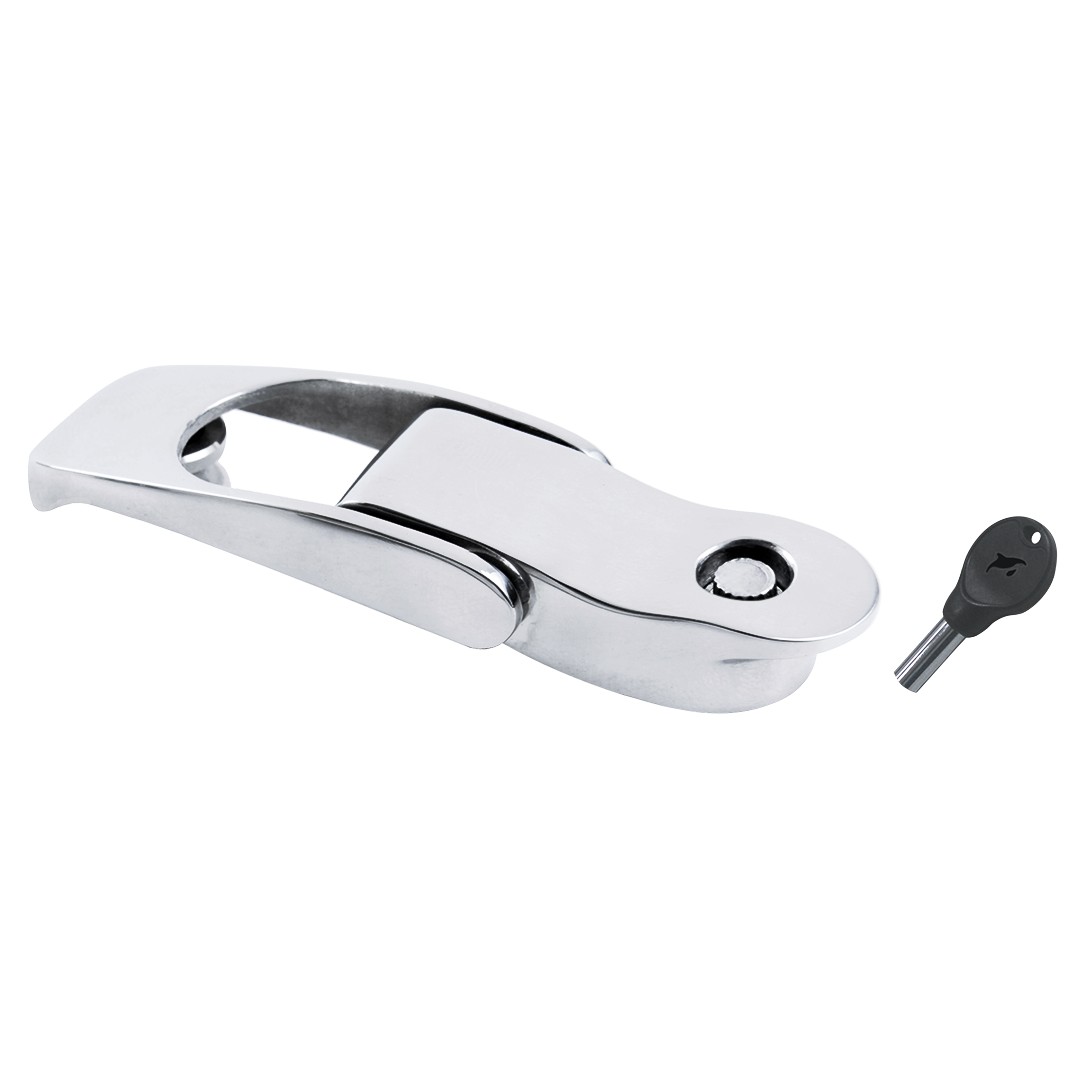

70-9907883 - 82mm With Lock & Key
70-0607981 - 106mm No Lock
70-0607983 - 106mm With Lock & Key

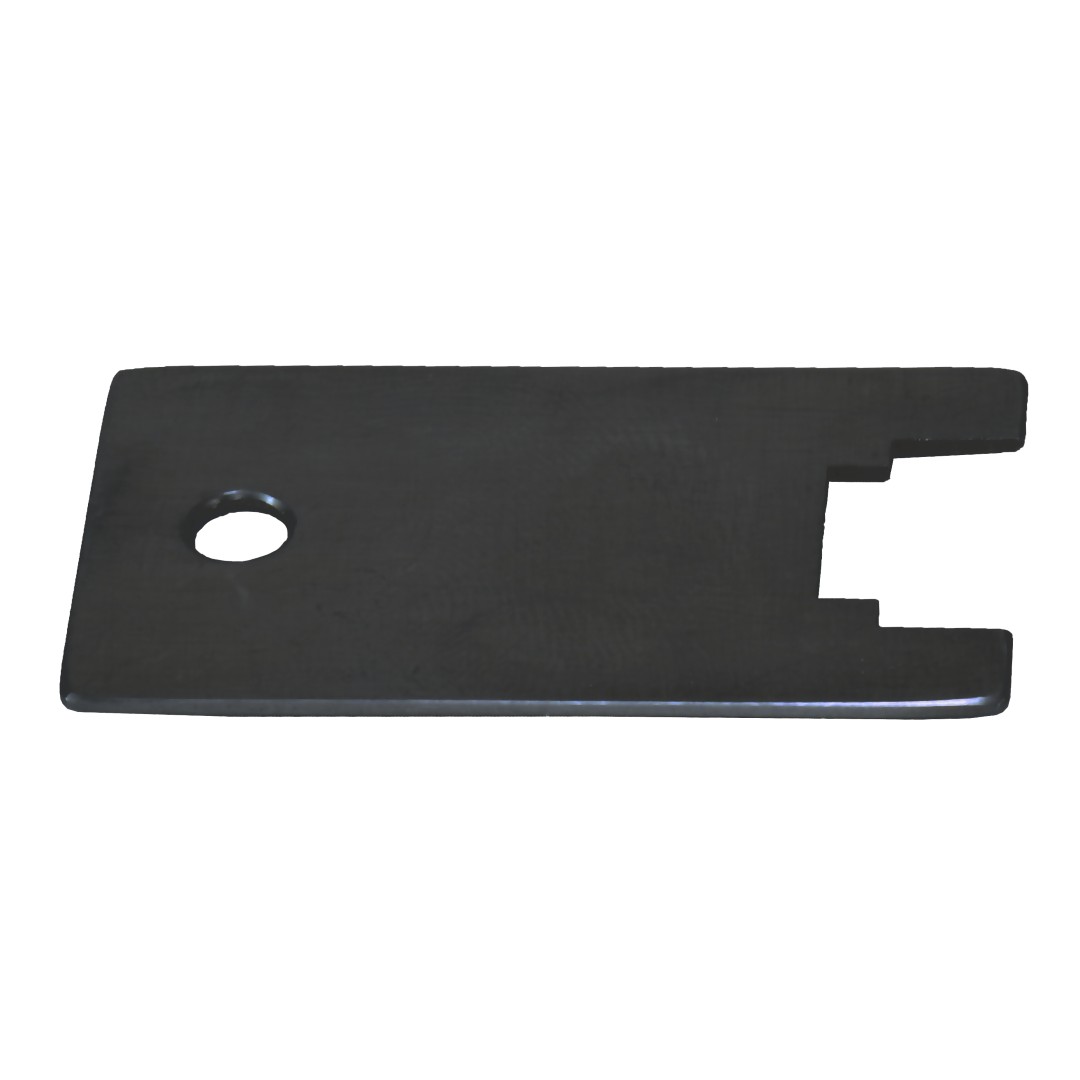

70-9907881-G - Installation Jig for 70-9907881 and 70-9907883
70-0607981-G- Installation Jig for 70-0607981 and 70-0607983
70-9907881 and 70-9907883
Length when closed 82mm
Width 25mm
Height 15mm
70-0607981 and 70-0607983
Length when closed 106mm
Width 32mm
Height 19mm
Additional
| Option | 82mm Compression Fastener, 82mm Compression Fastener With Lock & Key, 106mm Compression Fastener, 106mm Compression Fastener With Lock & Key, Installation Jig for 70-9907881 and 70-9907883, Installation Jig for 70-0607981 and 70-0607983 |
|---|---|
| Brand | C Quip |
