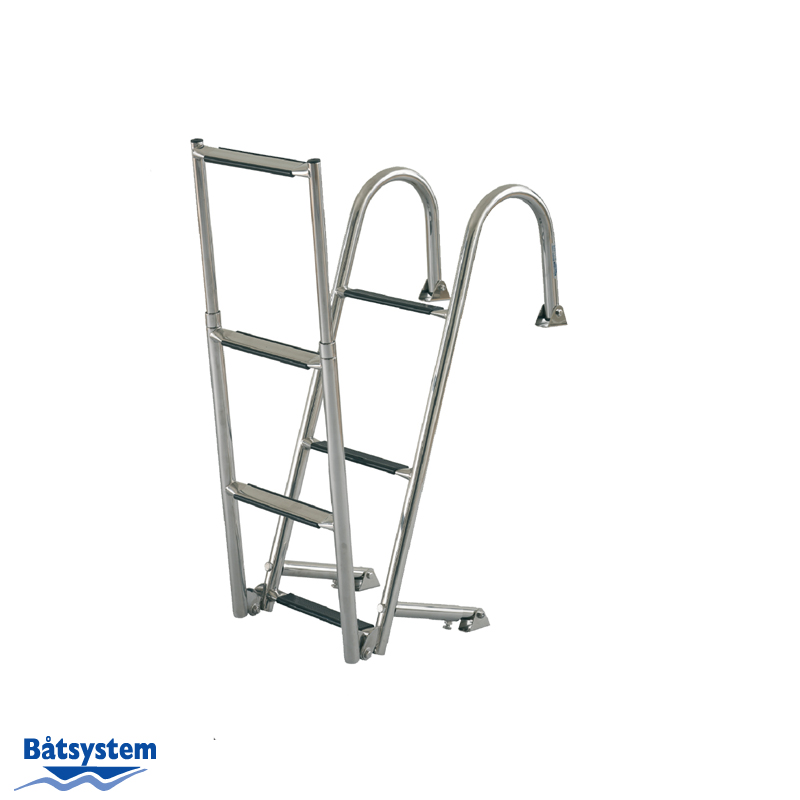

Stainless Steel 6/7/8 Step Bathing Ladder

Description

Bathing ladder with extended length and handles. Excellent as a bathing ladder as well as a rescue ladder.

Thanks to the high handles, it ensures safety when boarding/disembarking. Bottom half of these ladders are able to be folded upwards when not in use. Also, the last step on the 6 & 7 step ladders are telescopic for practical length adjustment. (Feature not available on the 8 step)

Attach with two U-fittings on deck, as well as two U-fittings on the transom. The struts are adjustable in length and the fittings can be angled horizontally. Suitable for mounting together with our stern platforms 14-PS55 & 14-PS65. (Stern platforms can be purchased separately)

Made of 316 stainless steel and hand polished for the best finish.

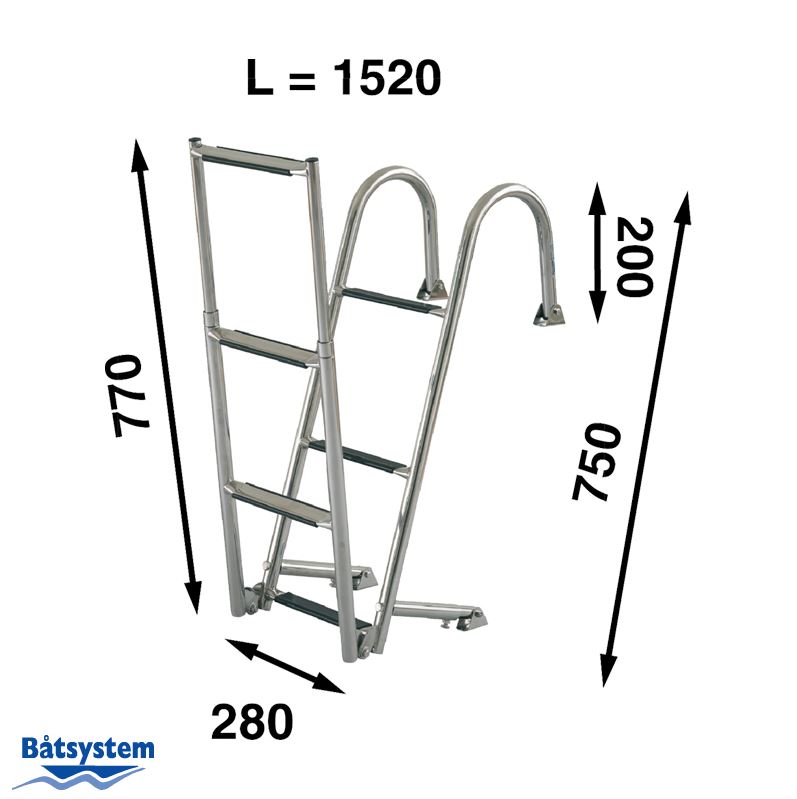

14-BUT75 (6 Step)

Length, total: 1520 mm

Length, folded: 770 mm

Width: 280 mm

Bow height: 200 mm

Adjustable struts: Yes

Length, strut: 150-300 mm

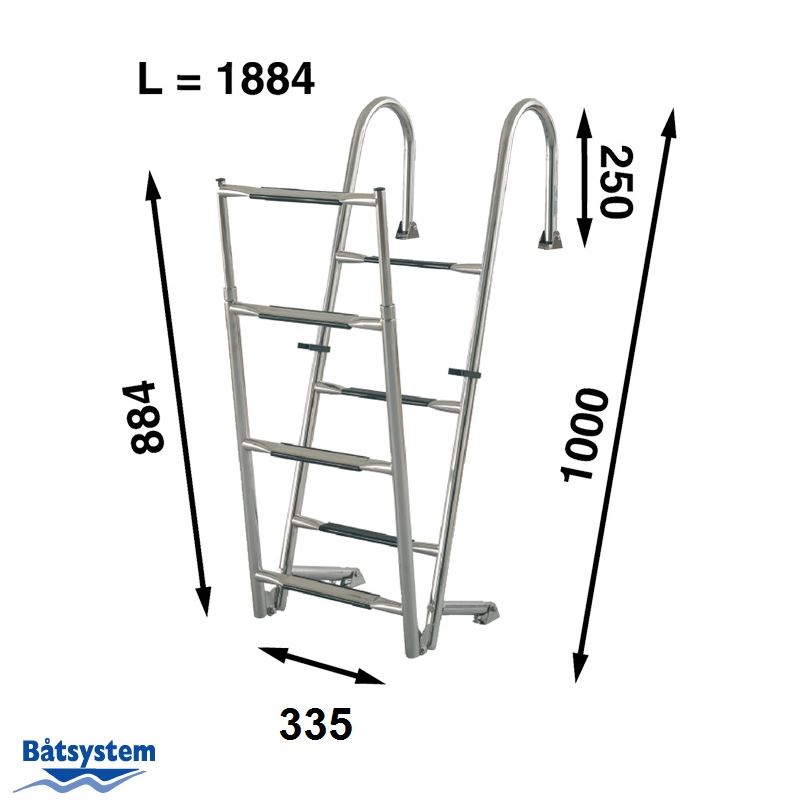

14-BUT100 (7 Step)

Length, total: 1884 mm

Length, folded: 1000 mm

Width: 335 mm

Bow height: 250 mm

Adjustable struts: Yes

Length, strut: 150-300 mm

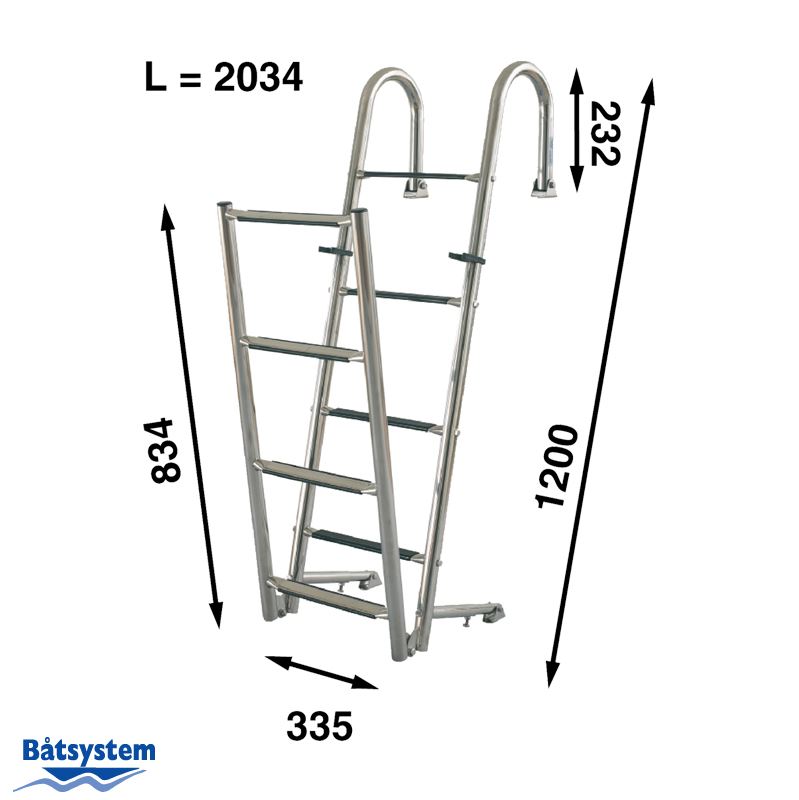

14-BUT125 (8 Step)

Length, total: 2034 mm

Length, folded: 1200 mm

Width: 335 mm

Bow height: 232 mm

Adjustable struts: Yes

Length, strut: 150-300 mm

14-BUT75, 14-BUT100 & 14-BUT125 - Mounting Instructions PDF
