SEAM Friction Hinge

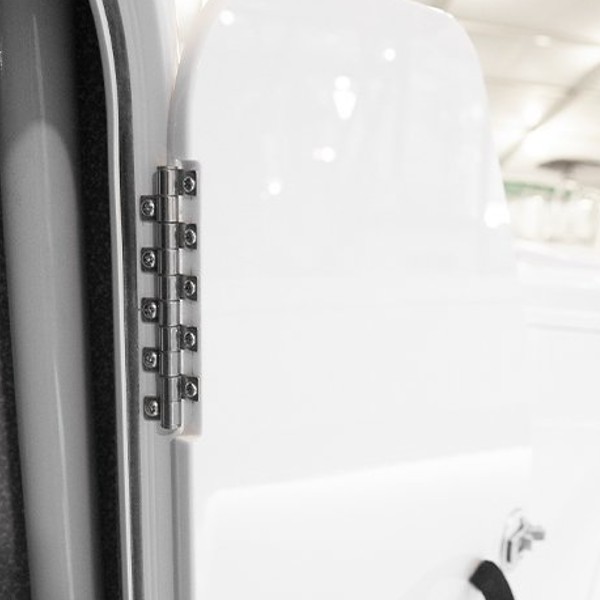

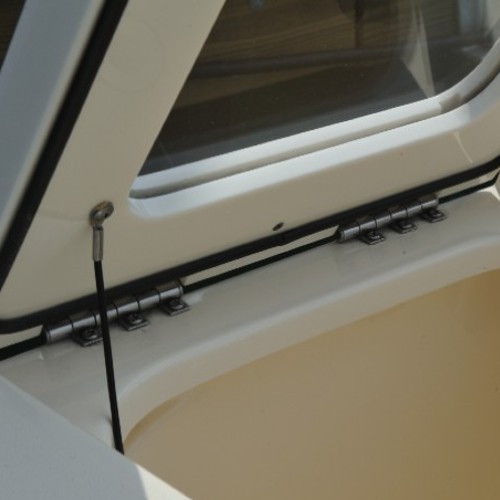

SEAM Friction Hinge. Construction creates constant torque throughout the range of movement for stay-less opening. Ideal for locker doors, baitwell lids, glove box, interior doors, electric panels, access hatch.
Description

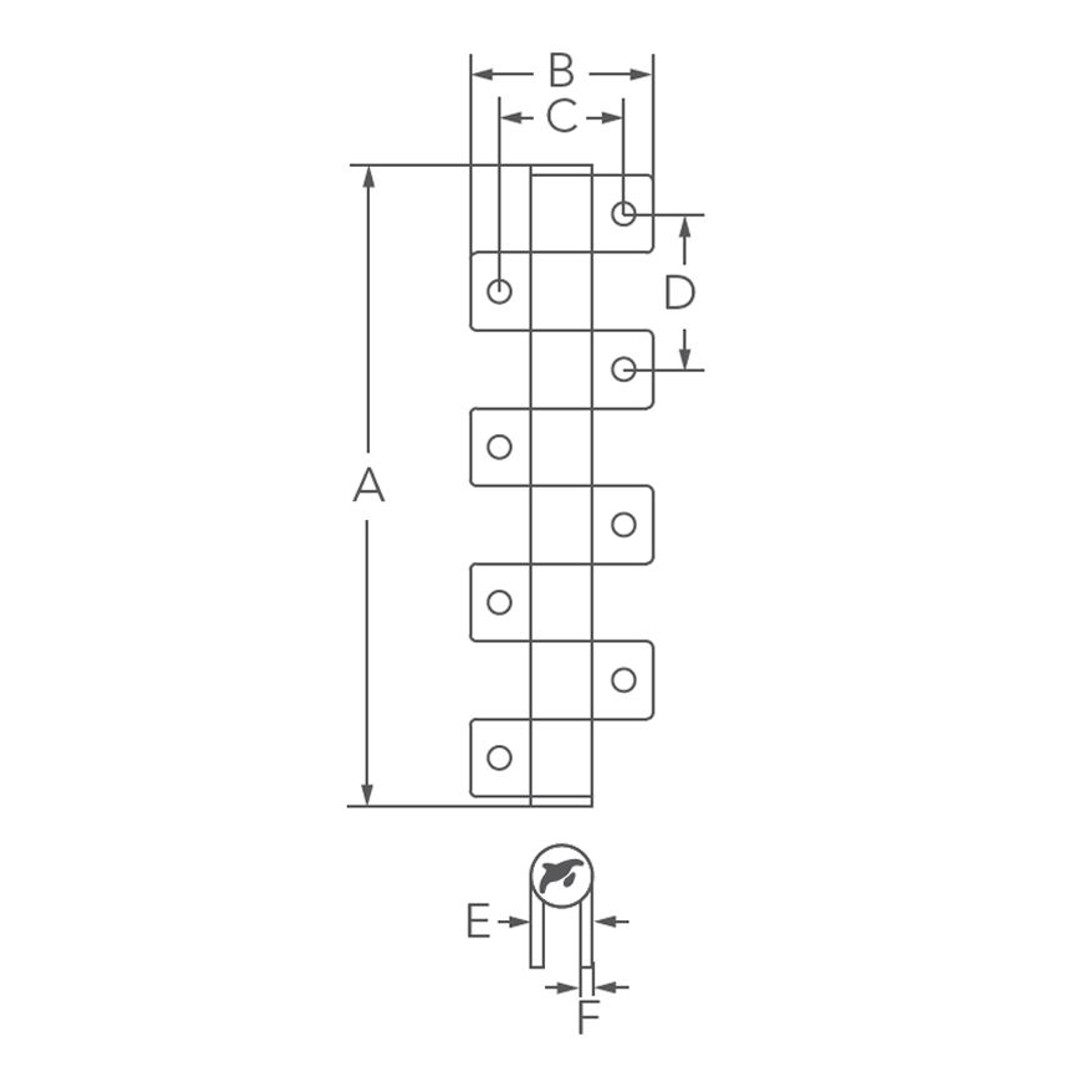

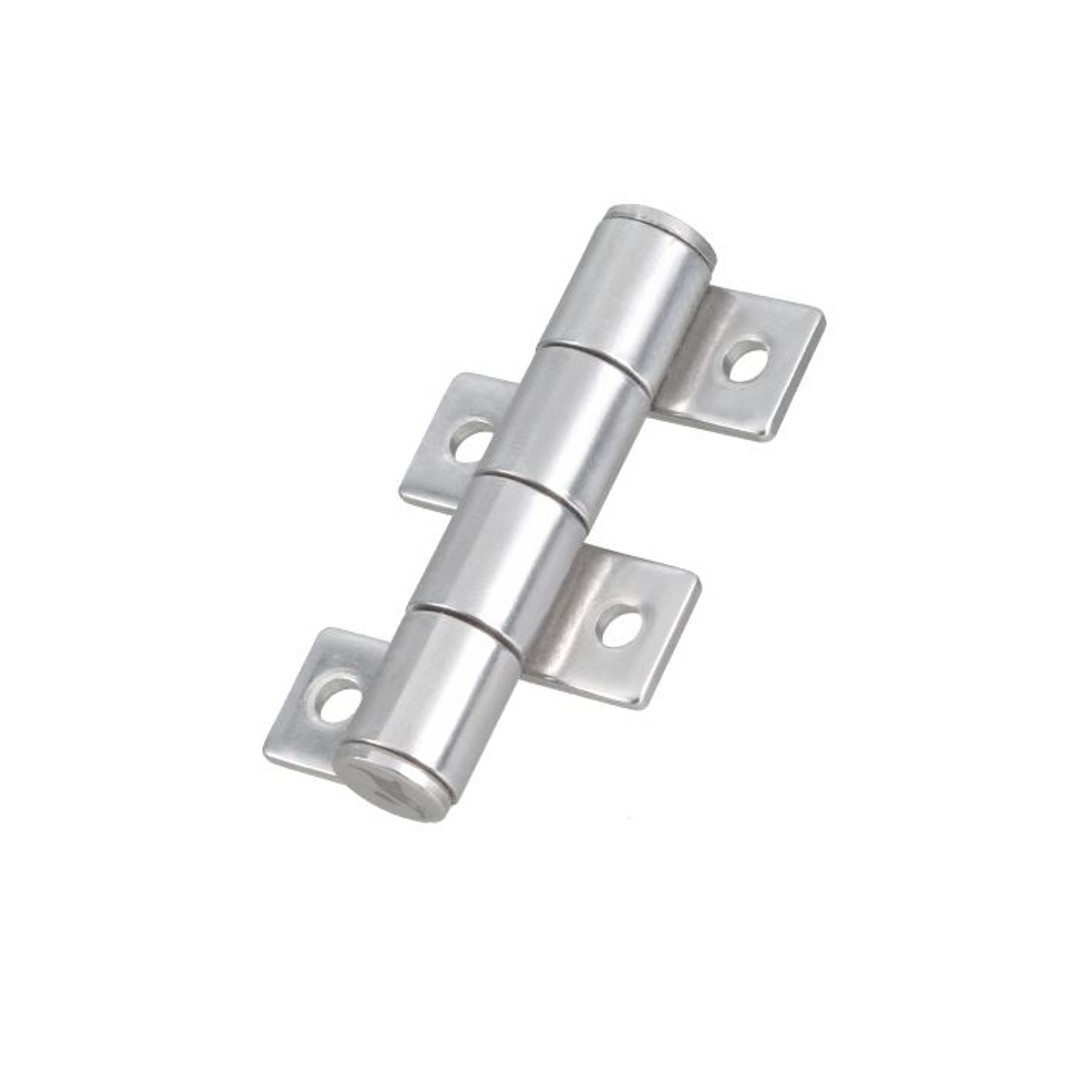

70-0419619 - 2" (51mm) SEAM Friction Hinge:
A 51mm B 28mm C 19mm D 24mm E 10.6mm F 2mm

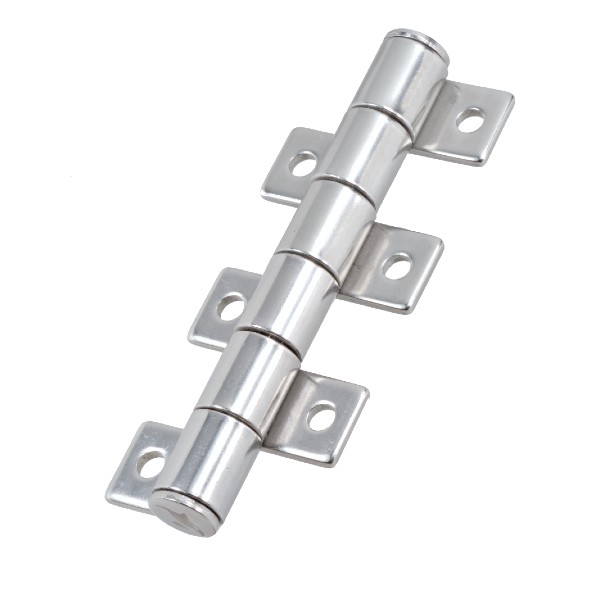

70-0419620 - 3" (75mm) SEAM Friction Hinge:
A 75mm B 28mm C 19mm D 24mm E 10.6mm F 2mm

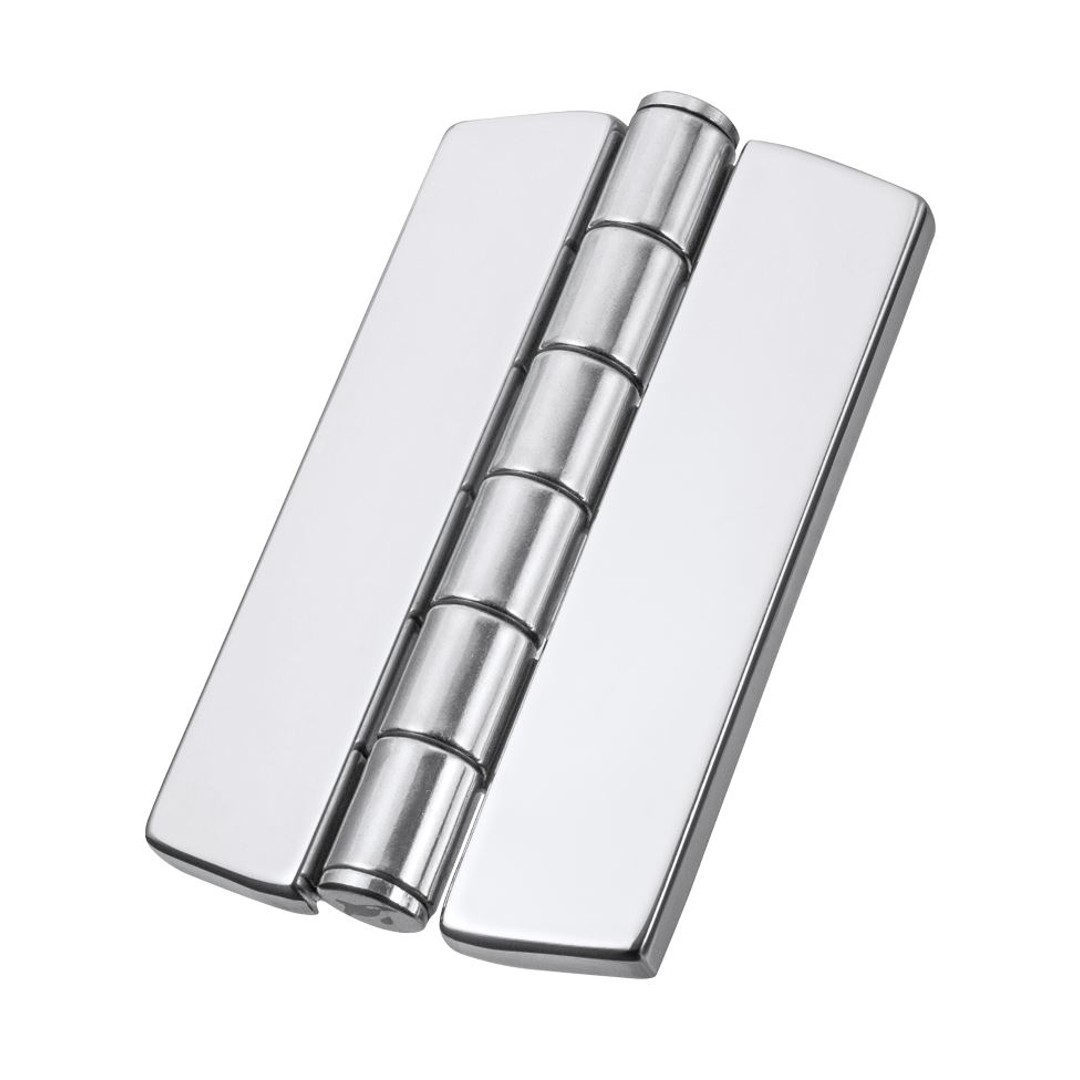

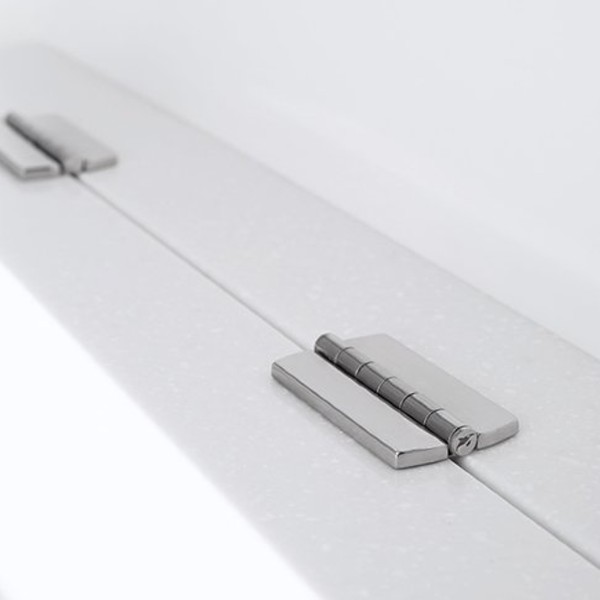

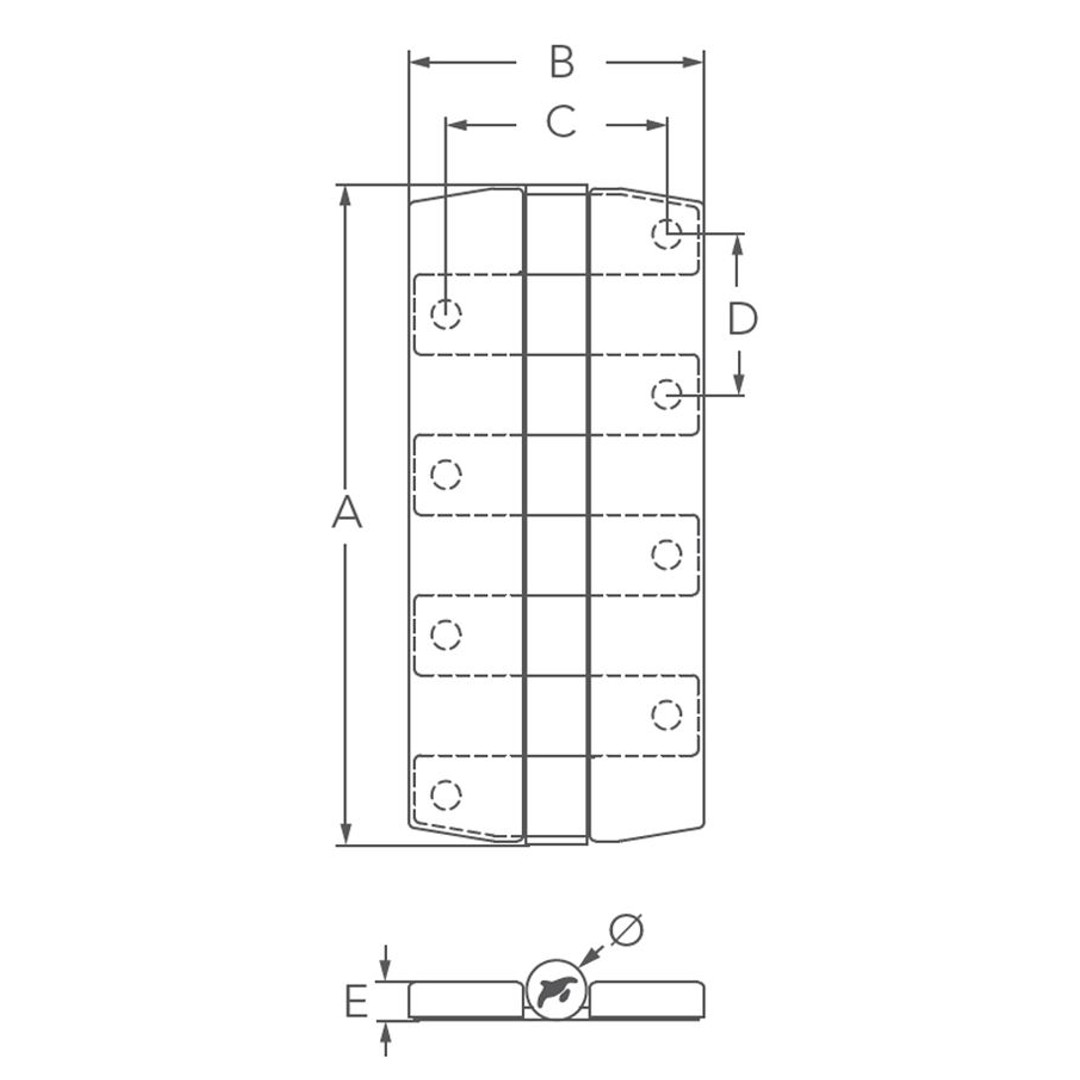

70-0419627 - 3" (75mm) SEAM Friction Hinge (With Cover):
A 79.2mm B 47mm C 35mm D 25.4mm E 6mm
Other sizes are available, with extended leaves if required.
- 316 Stainless Steel
- Holds doors at any angle without torque adjustment
- Passed 10,000 times cycle test and lost less than 20% torque
- Passed 500 hour salt spray test
Additional
| Options | 2" (51mm), 3" (75mm), 3" (75mm) with Cover |
|---|---|
| Brand | C Quip |
