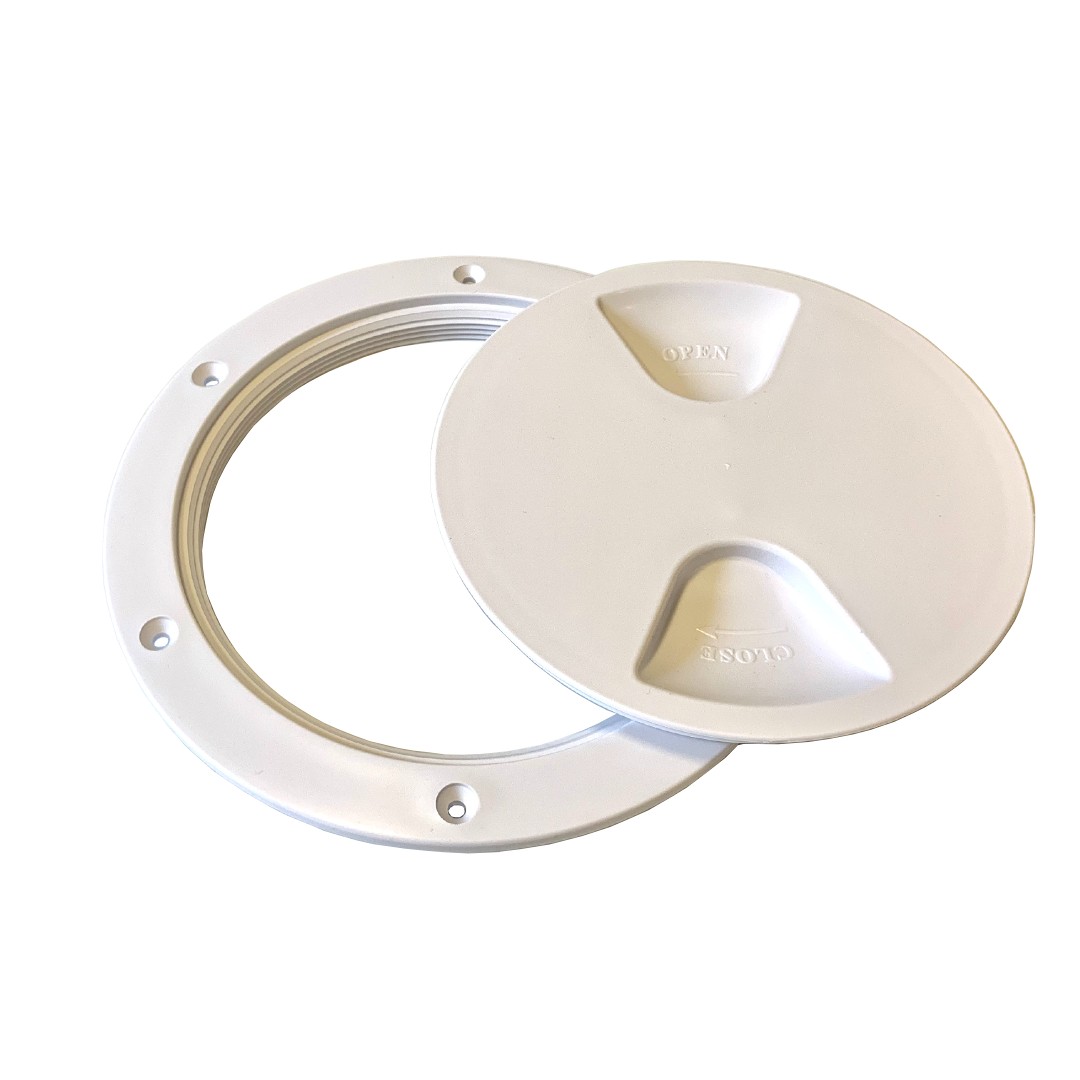

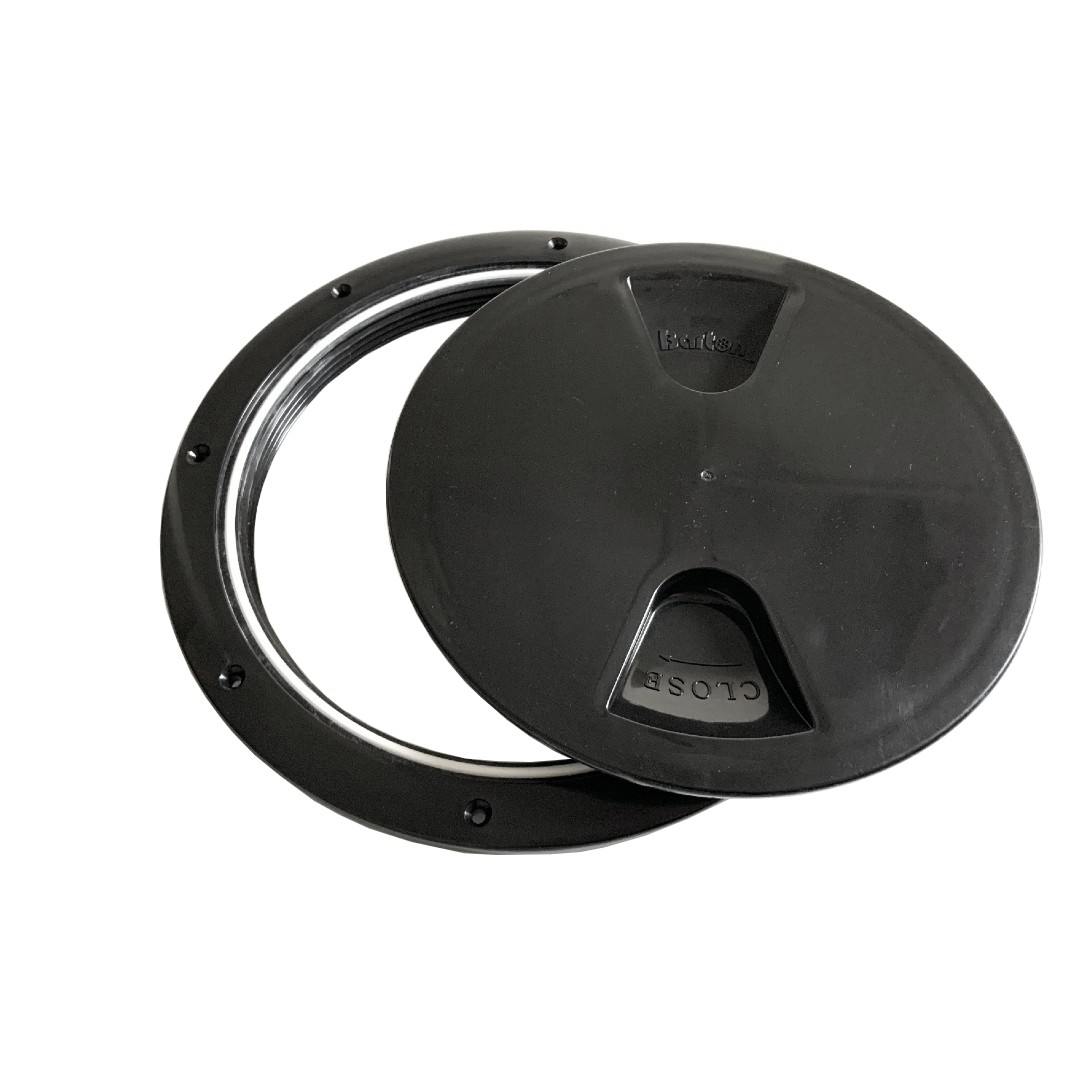

Screw In Inspection Deck Plates
Moulded Polypropylene Deck Plates are 'Acetone' proof. When open, the lid is secured by a strap to prevent losing overboard.
Related Products
Heavy Duty Butt Hinge
Select options This product has multiple variants. The options may be chosen on the product page
Description
Available in white or black and in 4 different sizes.
10-17540B (White) 10-17541B (Black)
Overall Diameter - 145mm (5.7")
Internal Diameter - 103mm (4")
Cut Out Diameter - 114mm (4.5")
10-17550B (White) 10-17551B (Black)
Overall Diameter - 170mm (6.7")
Internal Diameter - 128mm (5")
Cut Out Diameter - 139mm (5.5")
10-17560B (White) 10-17561B (Black)
Overall Diameter - 205mm (8.1")
Internal Diameter - 152mm (6")
Cut Out Diameter - 165mm (6.5")
10-17570B (White) 10-17571B (Black)
Overall Diameter - 259mm (10.2")
Internal Diameter - 202mm (8")
Cut Out Diameter - 216mm (8.5")
Additional
| Options | 4" (103mm) Black, 4" (103mm) White, 5" (128mm) Black, 5" (128mm) White, 6" (155mm) Black, 6" (155mm) White, 8" (202mm) Black, 8" (202mm) White |
|---|---|
| Brand | C-Quip |
