Description

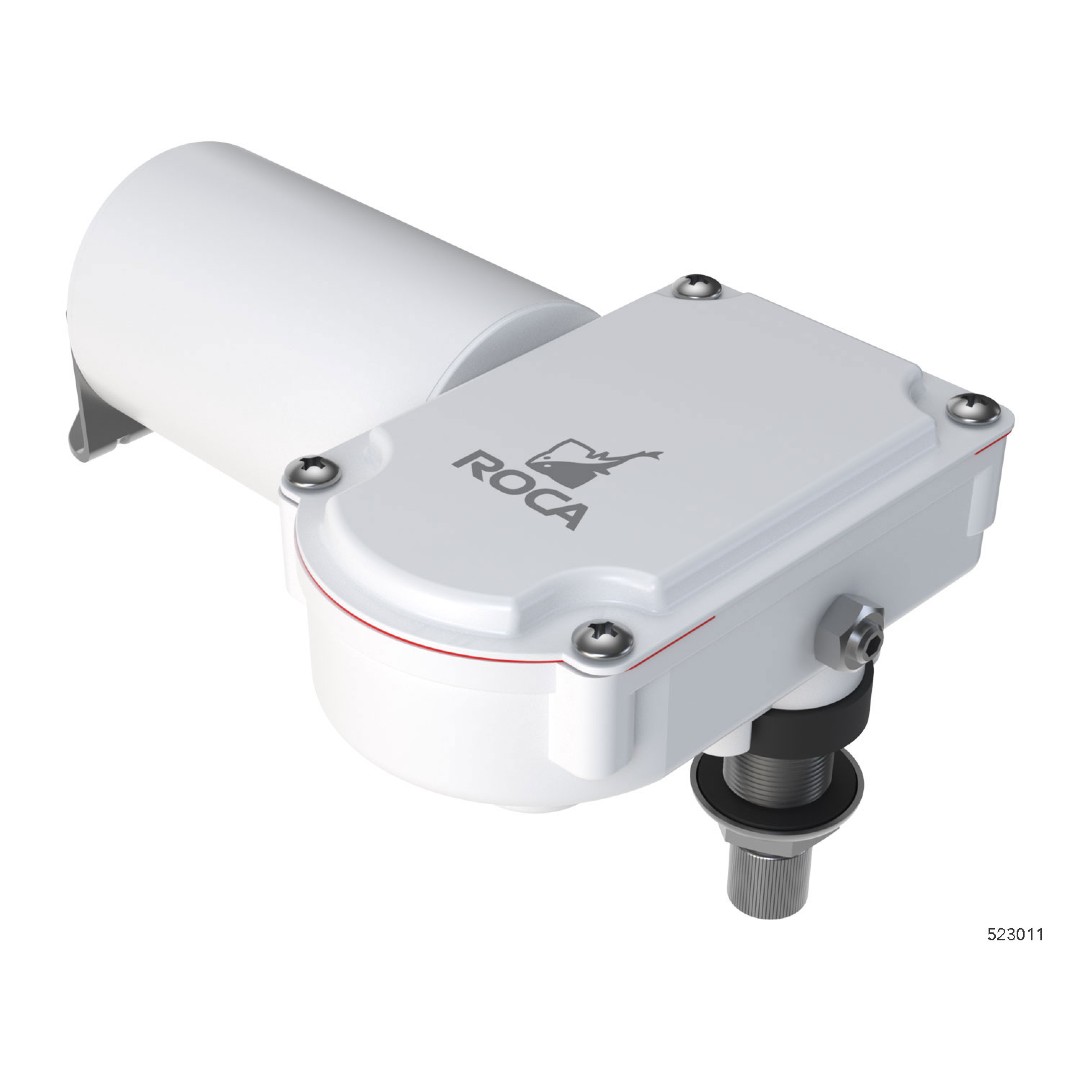

The W10 wiper motor has two speeds and offers an easily adjustable eight-step sweep angle.
The smooth adjustment of the W10 sweep angle and the telescopic wiper arm along with the pressure that’s exactly adapted to the windscreen angle, guarantee the best possible wiping effect.
Specifications
- Self-parking – Left or Right
- Easily adjustable sweep angles: 40°, 50°, 60°, 70°, 80°, 90°, 100°, and 110°
- Torque 10 Nm
- Two speeds: Slow 35 sweeps/min and fast 55 sweeps/min
- 12 VDC
- CE approved; EMC protected
- Driveshaft in stainless steel
- Insulated ground for metal, plastic and wooden boats
- Powers up to 610 mm / 560 mm /24″ x 22″ arm/blade combinations
PDF Documents
Roca W10 Technical Drawing PDF
Roca W10 Wiring Diagram PDF
Roca W10 Installation Instructions PDF
