Sugatsune Push Knob Latch DPL-OV

Description

When the knob is pushed in, the product becomes flush with its surroundings for a safe and smart design.

Pushing the knob in while the door is closed will lock it. Pushing the knob again will unlock it.

Available for both overlay and inset doors.

This product is sold as a set and comes with both a latch and a push knob

Specification

Applicable door thickness: 15–25mm

Accessories

Binding head tapping screw 4×20 (SUS)
Pan head tapping screw 3×14 (SUS)

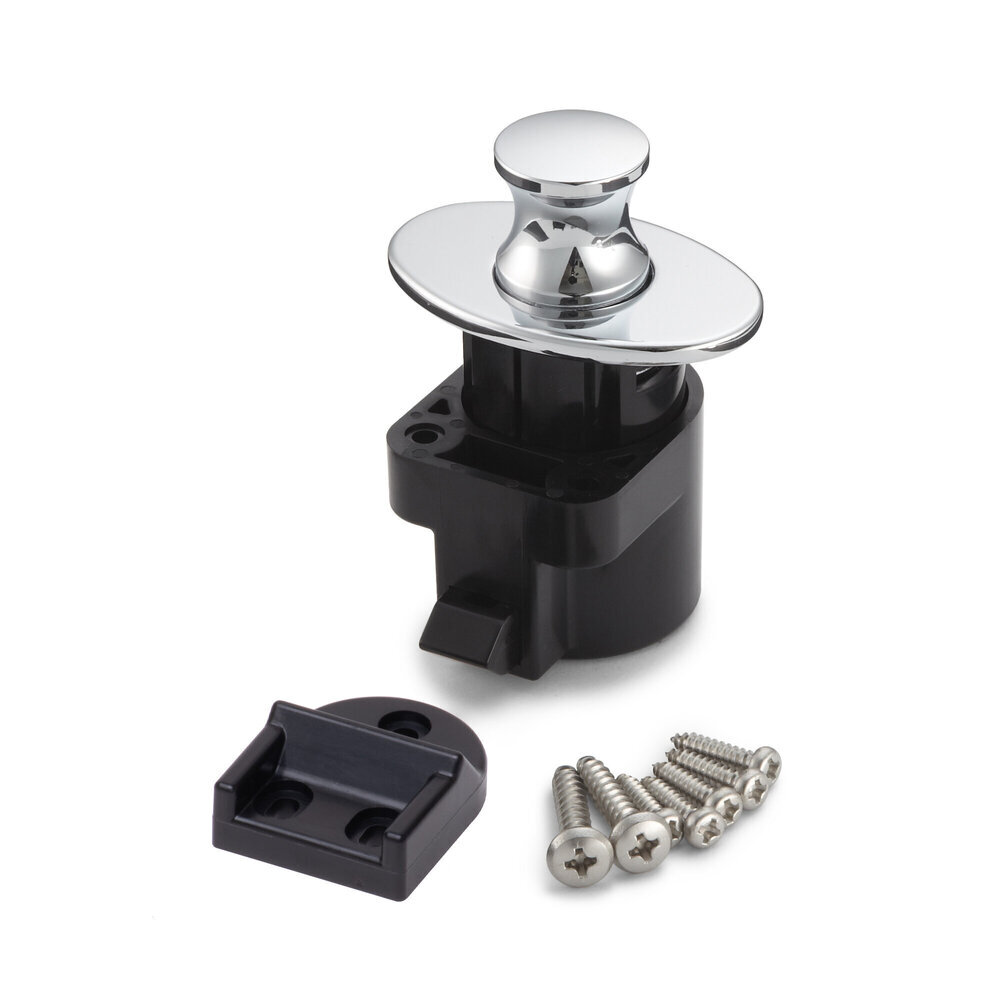

52-DPL-OV-CR - Chrome finish

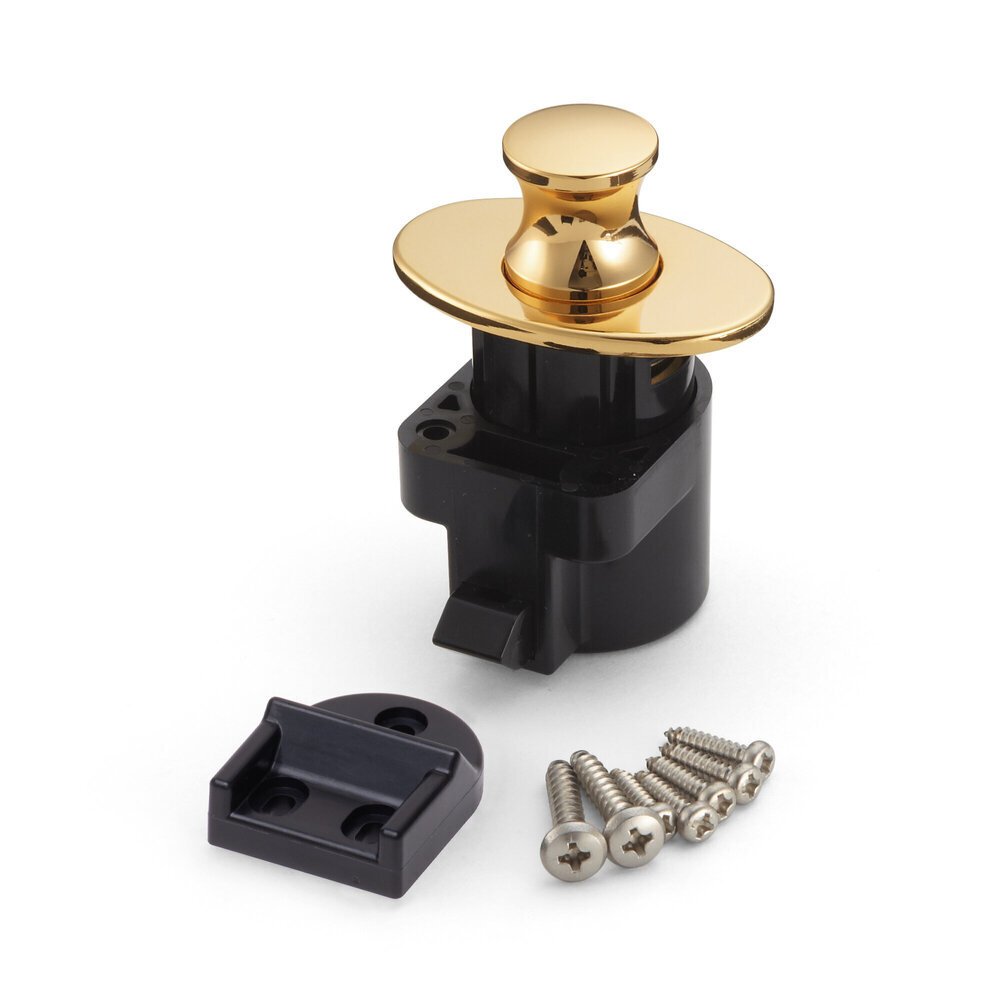

52-DPL-OV-GO - Gold finish

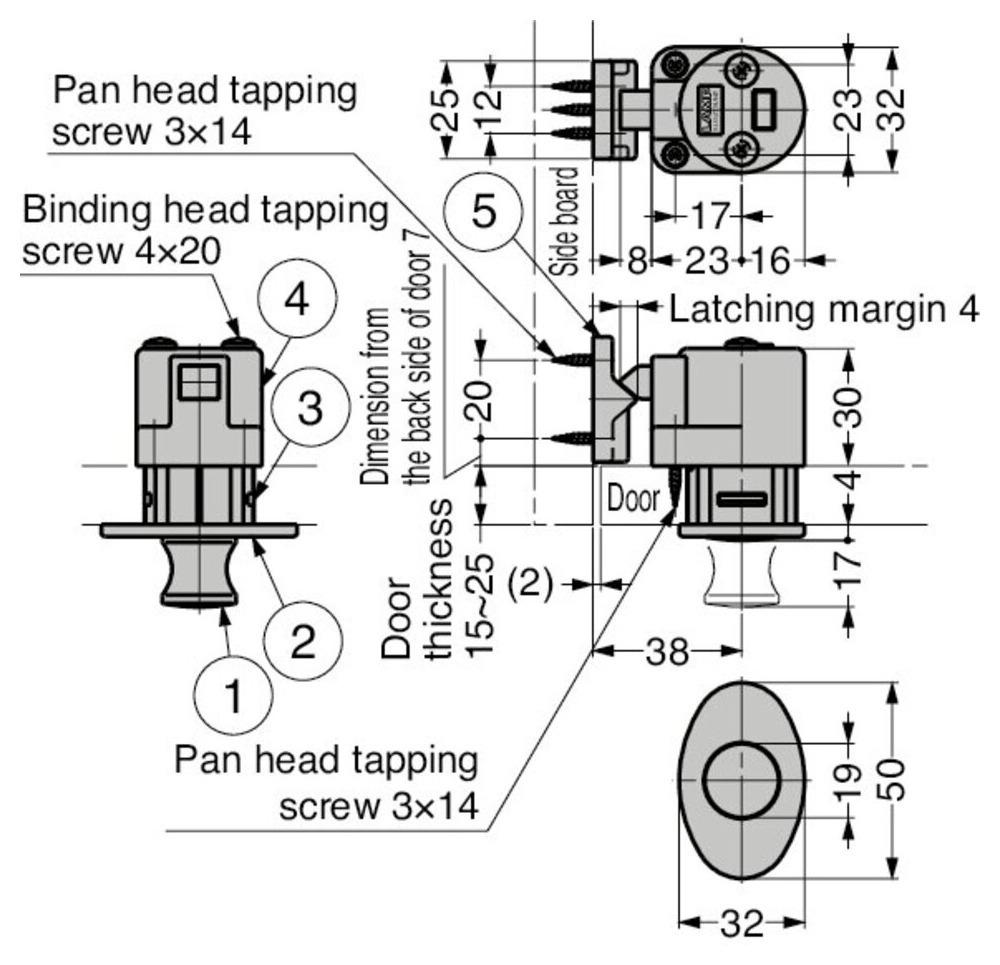

Technical Drawing
Installation Guide
