Performance Bowsprit for Sailing Yachts 32-39ft
Provided with a Code Zero kit as well as fittings for a Gennaker up to 80 m². The Performance series are designed for sailors who want to get the most out of Code-0 or Gennaker sailing.
You may also like…
Stainless Steel 4 Step Hook Ladder (For 14-PB120 & 14-PB140 Bowsprits) – 220mm Depth (For 14-PB120 & 14-PB140 Bowsprits)
Your Price£527.50inc. VAT£439.58ex. VATAdd to basket
Under Platform Telescopic Ladder (For 14-PB120 & 14-PB140 Bowsprits)
Your Price£388.00inc. VAT£323.33ex. VATAdd to basketStainless Steel 4 Step Hook Ladder (For 14-PB120 & 14-PB140 Bowsprits)
Select options This product has multiple variants. The options may be chosen on the product page
Description
The Performance PB1200 bowsprit is recommended for sailing yachts from 32 to 39 feet. It is designed to handle both Code and Gennaker setups, featuring a gennaker tack point at the very front and a dedicated mounting area for a Code furler just behind it.
This model can be configured with or without an integrated anchor holder system, accommodating most standard anchors up to 21 kg.
Note on anchor choice: The 21 kg rating refers to the physical size class rather than a strict weight limit. While the bowsprit can physically support heavier loads, larger anchors are bulkier and may not fit or handle as seamlessly within the platform’s geometry.
The PB1200 comes with a durable Accoya step surface. To keep deck space clear and ensure safe boarding, it can be equipped with a telescopic ladder housed in an under-deck casing, or used with optional hook ladders (both sold separately).
In terms of sail capacity, the structure is dimensioned for gennakers up to 115 m² or a Code 0 sail with a maximum load of 2500 kg.
- Length: 1200 mm
- Recommended for sailing yachts from 32 to 39 feet.
- Separate tack points for gennaker (front) and Code furler (behind).
- Available with or without an anchor holder
- Fits common anchors up to 21 kg.
- Two available waterstay lengths: 800 mm (standard and included) and 1000 mm (optional).
- Step surface in Accoya.
- Compatible with an under-mount telescopic ladder casing or hook ladders (sold separately).
- Maximum capacity: 115 m² gennaker or 2500 kg Code 0 load.
Accoya offers several key advantages compared to traditional tropical hardwoods such as teak:
|
Bowsprit Versions
- 14-PB1200AC-1 - Bowsprit no anchor roller - Accoya Surface

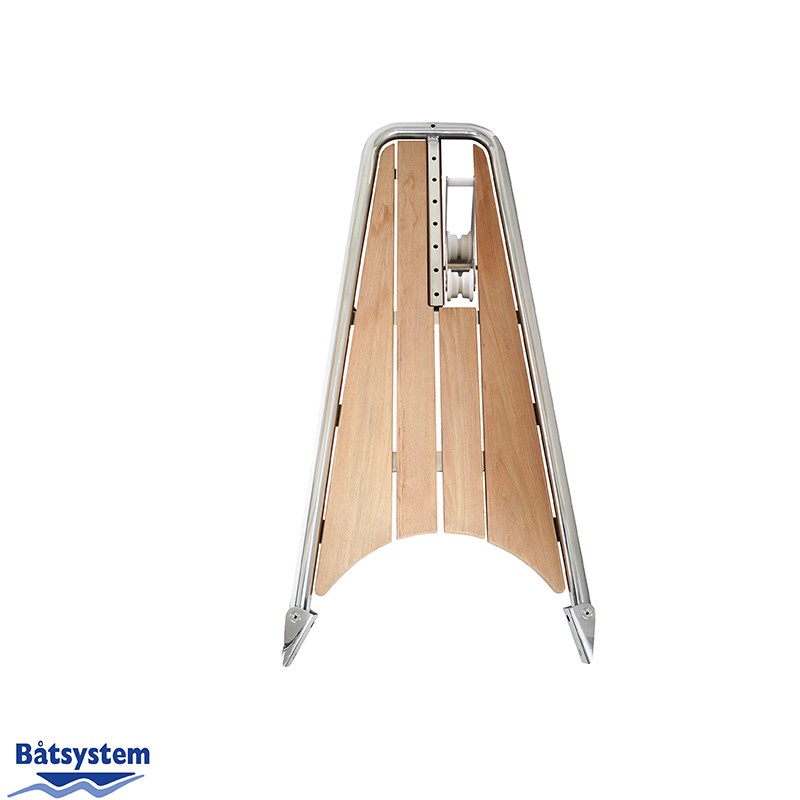

- 14-PB1200AC-S - Bowsprit with anchor roller - Accoya Surface
- 14-PB1200AC-V - Bowsprit with pivoting anchor roller - Accoya Surface
Ladders
- 14-BKT73A - 3 Step Telescopic Ladder
- 14-BU75P-4 - 4 Step Hook Ladder
- 14-BU76P-12 - 4 Step Hook Ladder
Specifications
- Length - 1180 mm
- Width - 435 +/- 50 mm
- Pipe dimension - 42 mm
- Working Load Code-Zero - Max 2500 kg
Mounting Instructions
Additional
| Options | Accoya Surface, Accoya Surface with Anchor Roller, Accoya Surface with Pivoting Anchor Roller |
|---|---|
| Brand | Batsystem |
| Boat Type | Sailing Yacht |
| Boat Length | 32ft to 39ft |
| With Ladder | No |
| Anchor Roller | No, Yes |
| Length | 1200mm |
| Width | 435mm |
| Material | Accoya |
| Maximum Gennaker Size | 115 m² |
| Code 0 Load | 2500 kg |
