Description

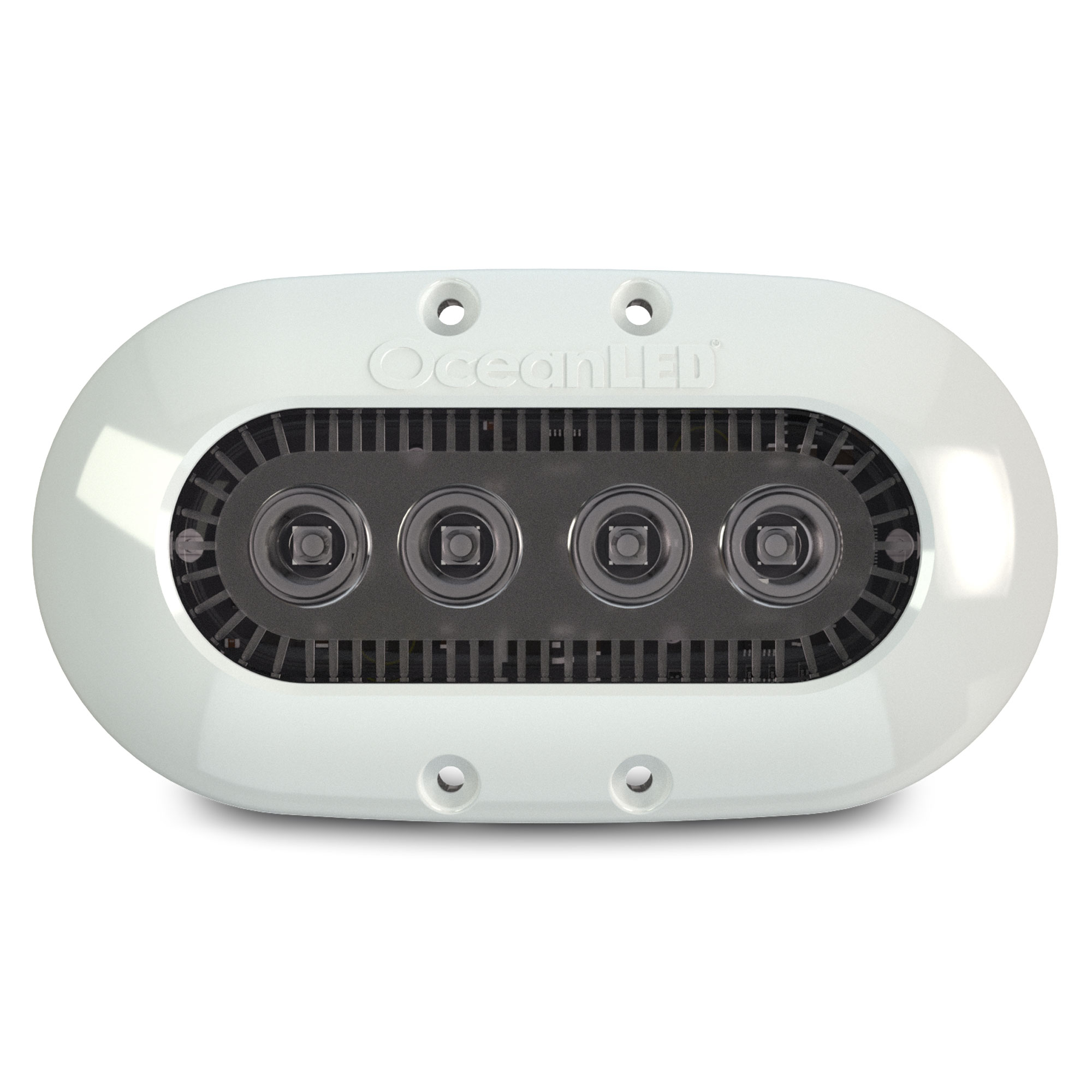

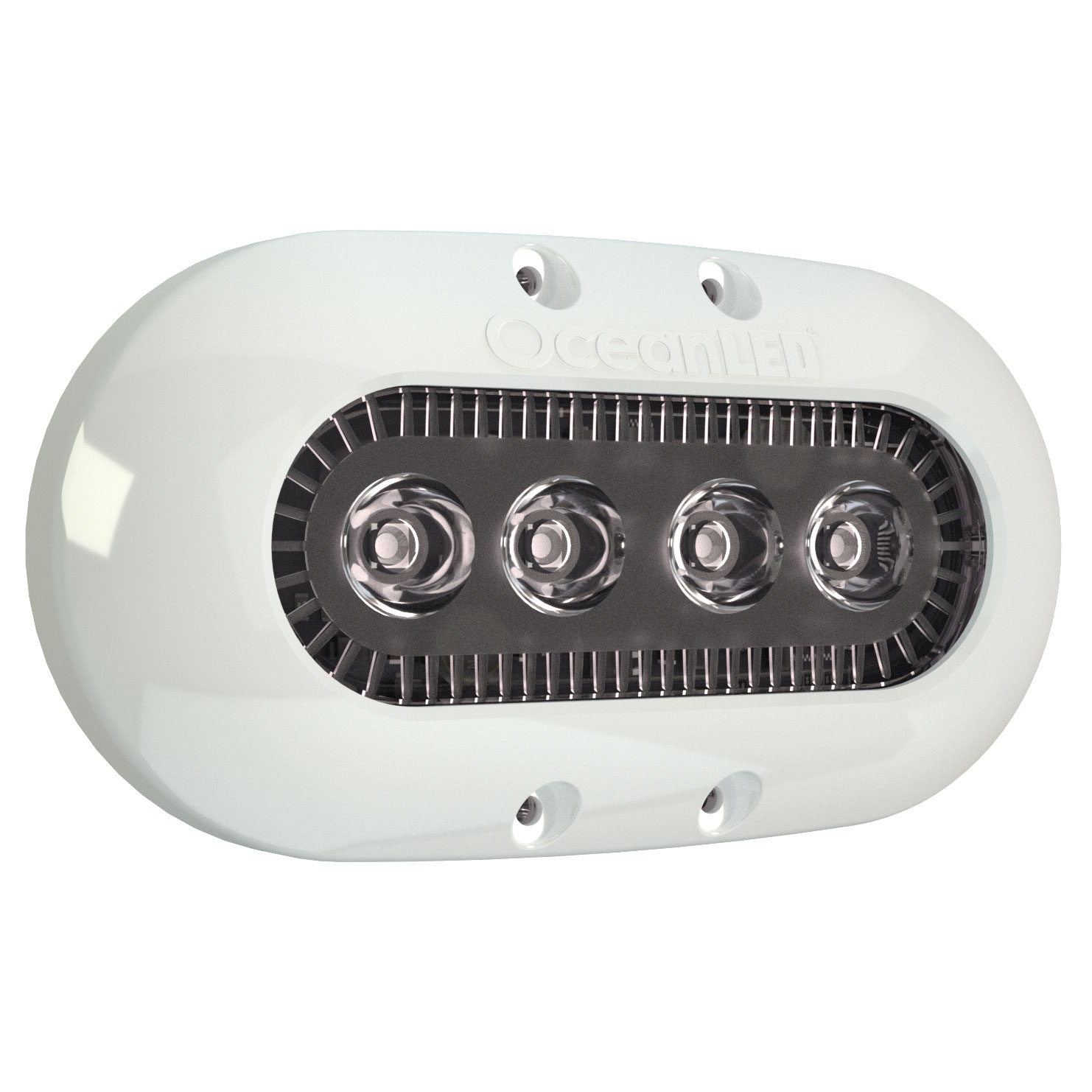

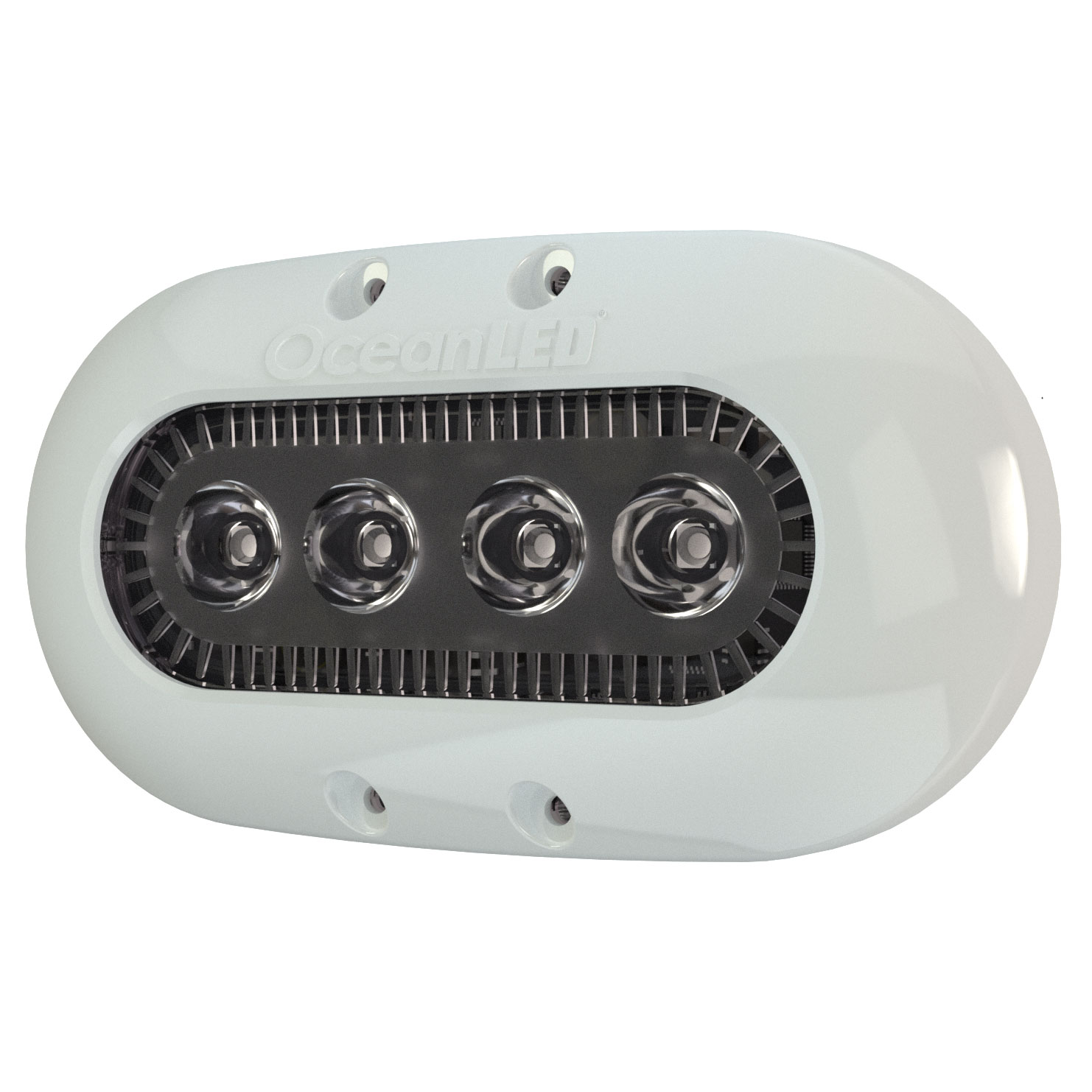

OceanLED X Series X4

Made from a chemically resistant optical polymer with a built in driver, there is a lot packed into this compact light. The X4 is a small but bright light for a variety of uses and installation types.

IP69 Protection

The X-Series is now certified to the highest achievable rating of protection against water ingress, also known as IP69k.

IP69k goes one step further than the industry standard IP68, the rating for continuous immersion in water. IP69k gives our customers total peace of mind when choosing the best possible solution for their yacht.

No Quibble Warranty

OceanLED underwater lights now benefit from an industry first ‘No Quibble Warranty’.  If a light fails during the warranty period it will be replaced completely free, no questions asked.

More information on the ‘No Quibble Warranty’ can be found here.

Key Features

• 60° Side & Top Beam Angle
• IP69
• Simple to Install
• Fish Strobe Mode
• White Plastic

Technical Information

• Fixture Lumens – Up To 1150
• 9-30VDC
• Current Amp / Draw – 12V DC 0.8A 24V DC 0.4A
• Approx. light penetration (avg. water quality) – 20’ (6m)
• Approx. Light penetration (perfect water quality) – up to 45’ (13+m)

Mounting Information

• Boat size – up to 30’ (9m)
• Transom / Hull spacing – 2-3’ (0.5-1m)
• Transom quantity – 2-4
• Installation depth (to top of fixture) – 4-8” (10-20cm)

PDF Documents

• X Series Product Guide
• X Series Installation & Operation Manual
• X Series Quick Installation Guide
• X Series Mounting Template
• Which Series Guide
• Warranty Document
