Sugatsune Lever Latch

Description

The LL-66GR Magnetic Catch is now available in a sleek new chrome finish, combining modern aesthetics with reliable performance. Designed for use on overlay and flap doors where the door length exceeds the frame height, it offers a clean, streamlined solution without the need for handles or pulls.

Engineered for durability and stability, the LL-66GR provides exceptional resistance to vibrations caused by movement or earthquakes, helping doors stay securely closed in demanding environments. For easier installation and precise alignment, the mounting position can be adjusted with vertical movement of ±1.5 mm on the body and horizontal movement of ±1.5 mm on the counter plate.

Manufactured using flame-retardant material rated UL94 V-0, the LL-66GR delivers added safety alongside its refined appearance and dependable functionality.

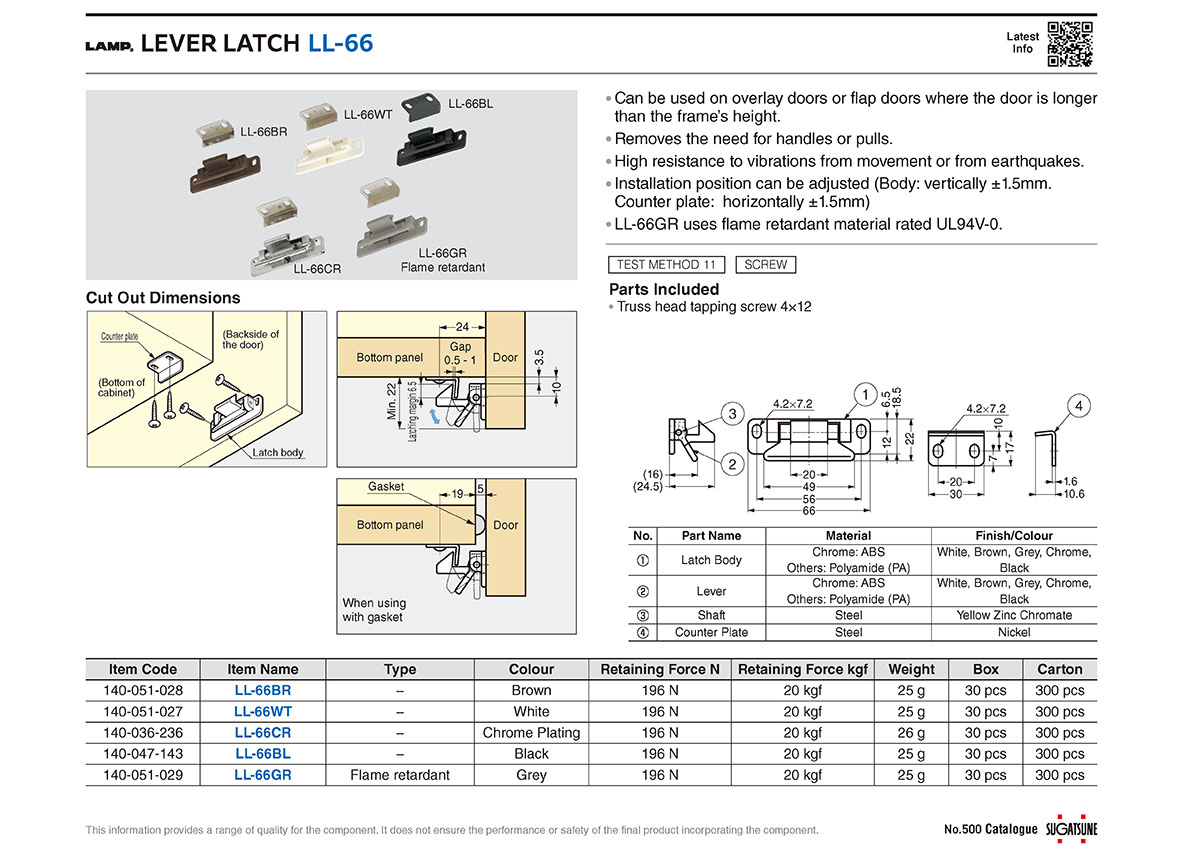

Technical Drawing
Installation Manual
