£8.05 - £12.07

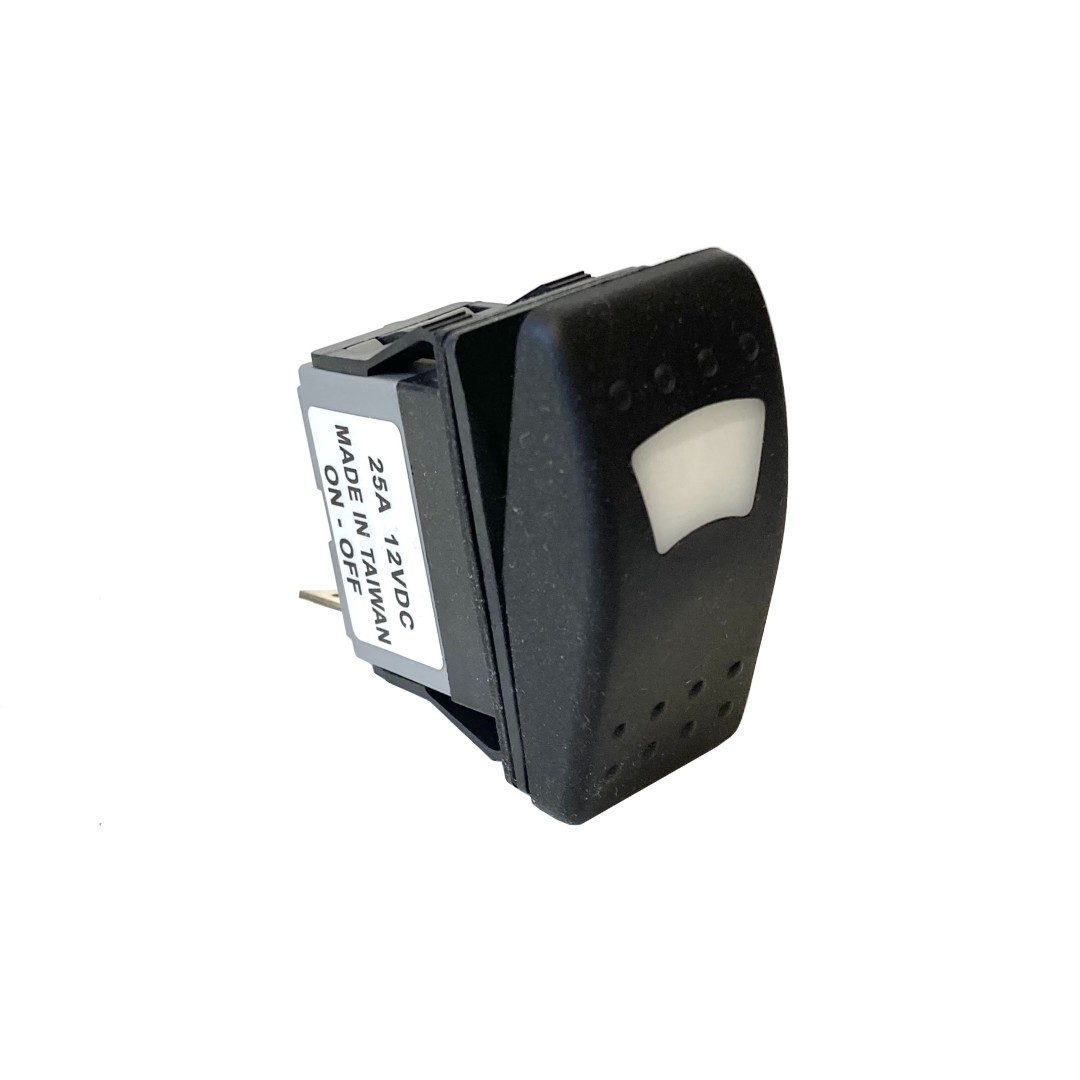

LED Rocker Switches

These ergonomically and aesthetically pleasing rocker switches utilise LED technology, using minimal power….

Description

These ergonomically and aesthetically pleasing rocker switches utilise LED technology, using minimal power.
Available in four different circuit types:
Single Pole Single Throw – (SPST)
A switch that only has a single input and can connect to only one output. This means it only has one input terminal and one output terminal. The SPST serves as an on/off switch.
Single Pole Double Throw – (SPDT)
A switch that has a single input and can connect to, and switch, between two outputs. This means it only has one input terminal and two output terminals. The SPDT can serve a variety of functions in a circuit, including an on/off switch (depending on how the circuit is wired) or it can serve to connect circuits to any two various paths that a circuit may need to function in.
Double Pole Single Throw – (DPST)
A switch that has two inputs and two outputs, each input as one corresponding output. Each of the terminals of a DPST switch can either be in the ‘on’ position (closed) or the ‘off’ position (open). A DPST has a lot of versatility being that it accepts two inputs, which makes it able to drive two different outputs in a circuit, resulting in it being able to turn both outputs on/off together.
Double Pole Double Throw – (DPDT)
A switch that has two inputs and four outputs, each input as two corresponding outputs. Each of the terminals of a DPDT can be in 1 of 2 positions. With two inputs, it can connect to four different outputs, resulting in being able to reroute a circuit into two different modes of operation. For example, you could connect the DPDT switch to a lamp & LED and a speaker & buzzer. When you press the switch one way, it turns on the lamp & LED. When the switch is pressed the opposite way, the lamp & LED turns off and the speaker & buzzer is turned on.
IMPORTANT
These switches DO NOT come with a cap. Please ensure you order the appropriate cap separately.
All Caps have a printed “logo” (e.g. Anchor sign for Anchor Winch) unless prefixed by “txt”, in which case the actual word is printed on the cap.

Additional information

Options

, , , , , , , , , , , , ,

SKU P-10-30661-1L Categories , ,
