Index Marine Galvanic Isolators

Description

Galvanic isolators play a key role in the prevention of expensive and potentially dangerous corrosive damage to metalwork on boats in contact with water such as hulls, rudders, propellors, shafts and tubes.

Prevents galvanic corrosion caused by galvanic current flow. This range of Galvanic Isolators wok by placing a rectifier network between the earth connection, the boat, and shore-based mains power supply.
This stops the small continuous electrical currents that are generated by galvanic reactions between the various metals, in contact with one another and the water which can cause rapid and heavy corrosion of underwater metalwork.

Variants are available to cater for 16Amp, 32 Amp and 70 Amp shore and vessel electrical systems. The appropriate variant should be installed in-line in the earth cable between where shore power enters the boat and the vessels electrical distribution panel.
All vessels will benefit from the installation of a correctly installed galvanic isolator, and many marinas make their use mandatory.

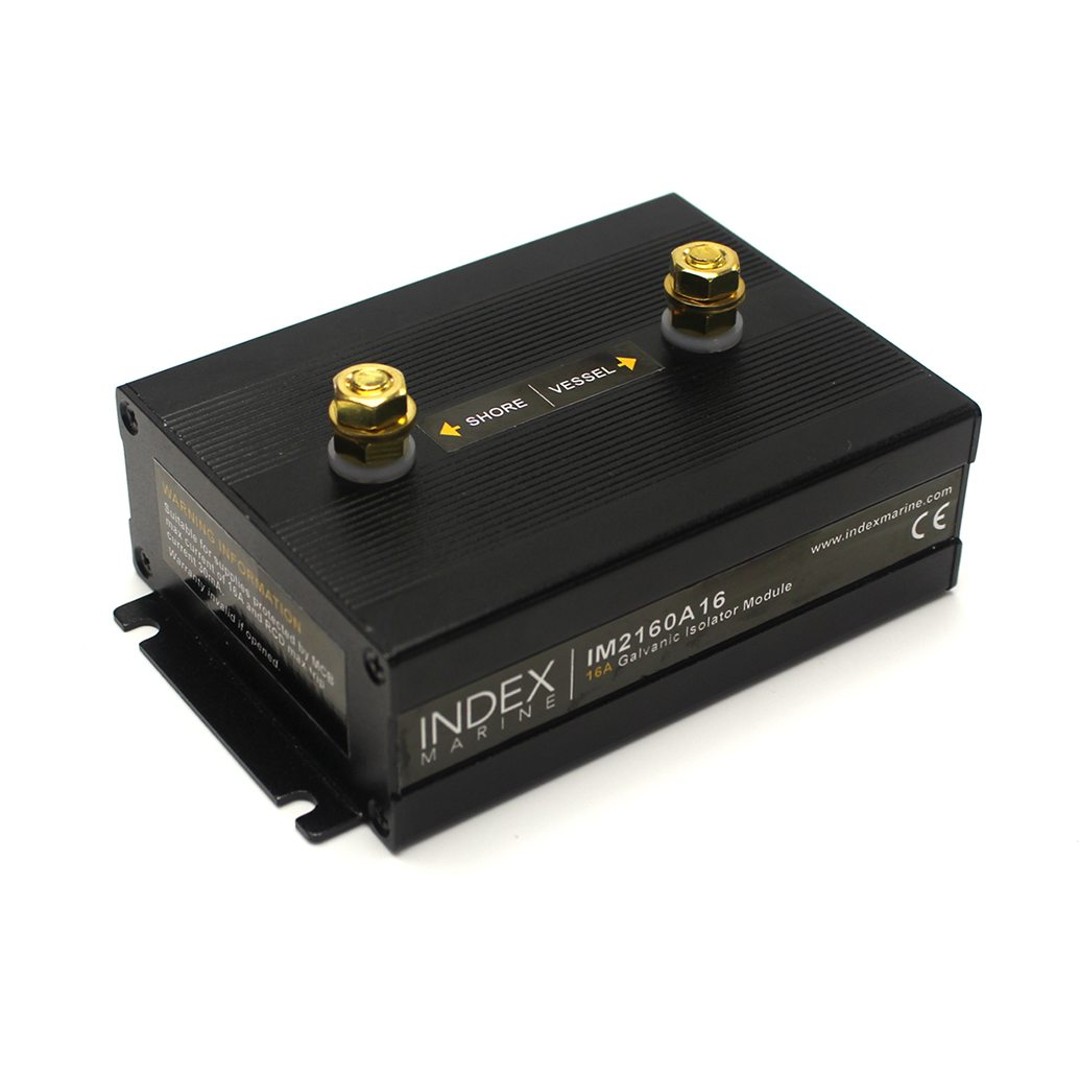

07-H-2160A16 | 16 Amp | 120 x 77 x 85 mm

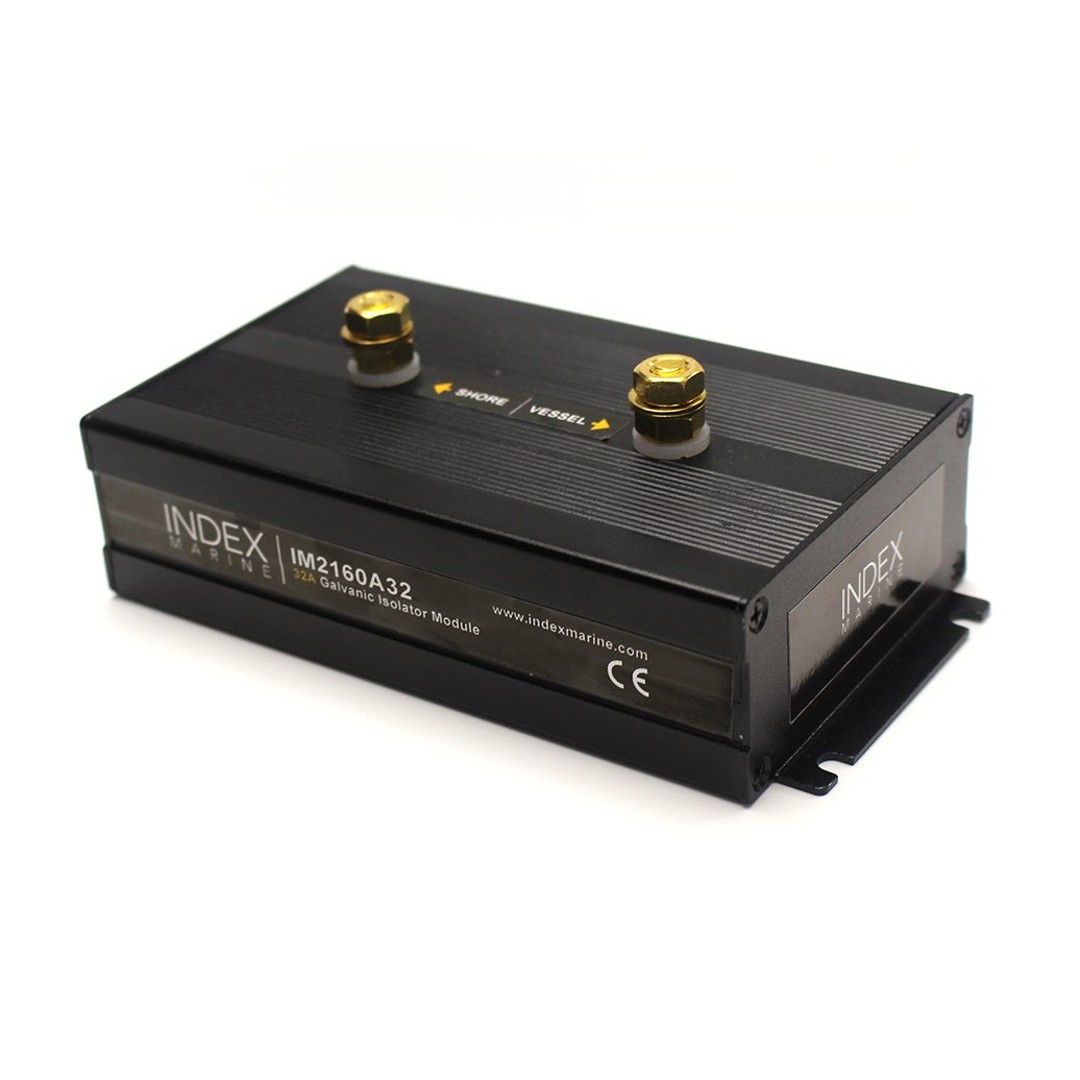

07-H-2160A32 | 32 Amp | 144 x 77 x 85 mm

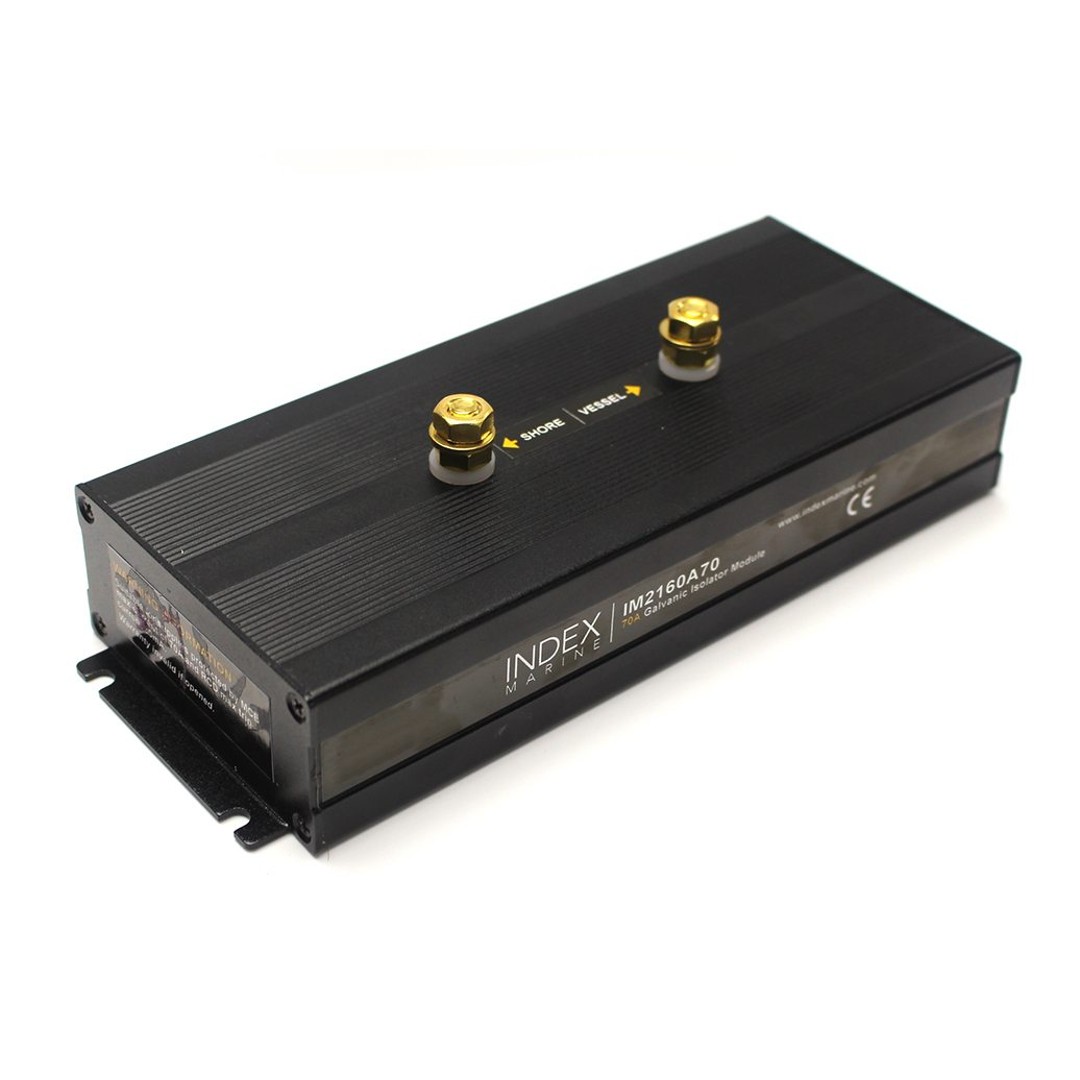

07-H-2160A70 | 70 Amp | 194 x 77 x 85 mm
