Index Marine Cable Glands
This range are all rated as IP68, ensuring the level of cable protection is incredibly resilient to the outdoors and other harsh environments
- Stock Level
- In Stock
- SKU
- P-07-A6-312
Description
Index Marine has a range of metric threaded cable glands offering excellent strain relief and cable protection. Cable glands allow you to mount a cable into a pre-drilled hole ensuring a tight seal.

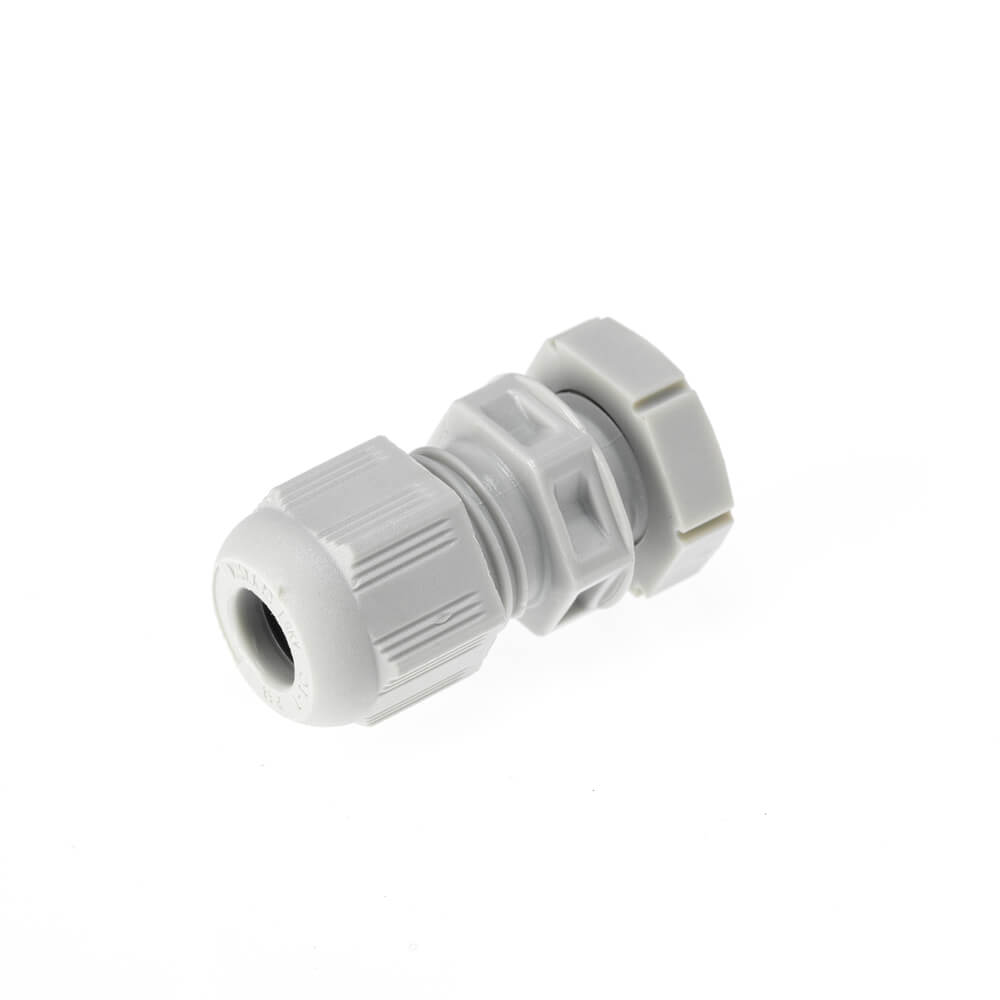

07-A6-312 - CG1 M12 Cable Gland:
Max Cable Size - 7mm
Min Cable Size - 3mm

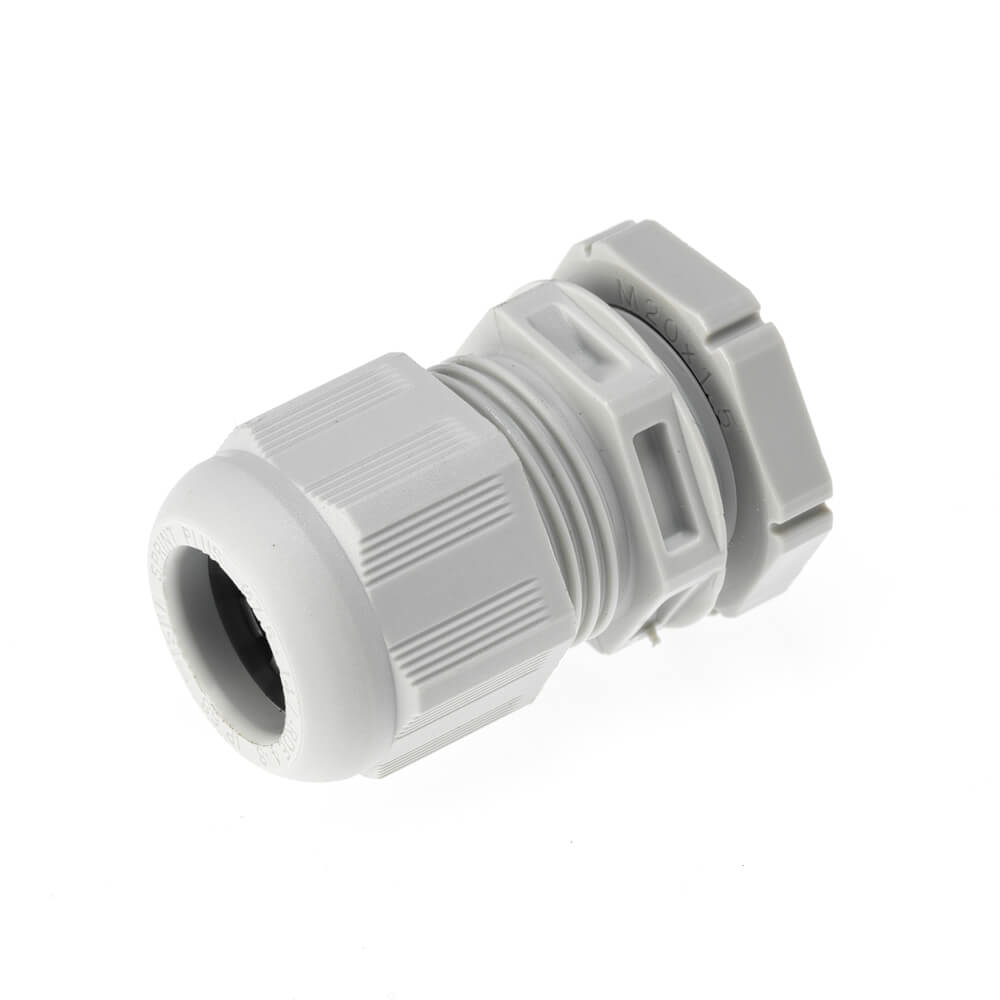

07-A6-320 - CG2 M20 Cable Gland:
Max Cable Size - 13mm
Min Cable Size - 6mm

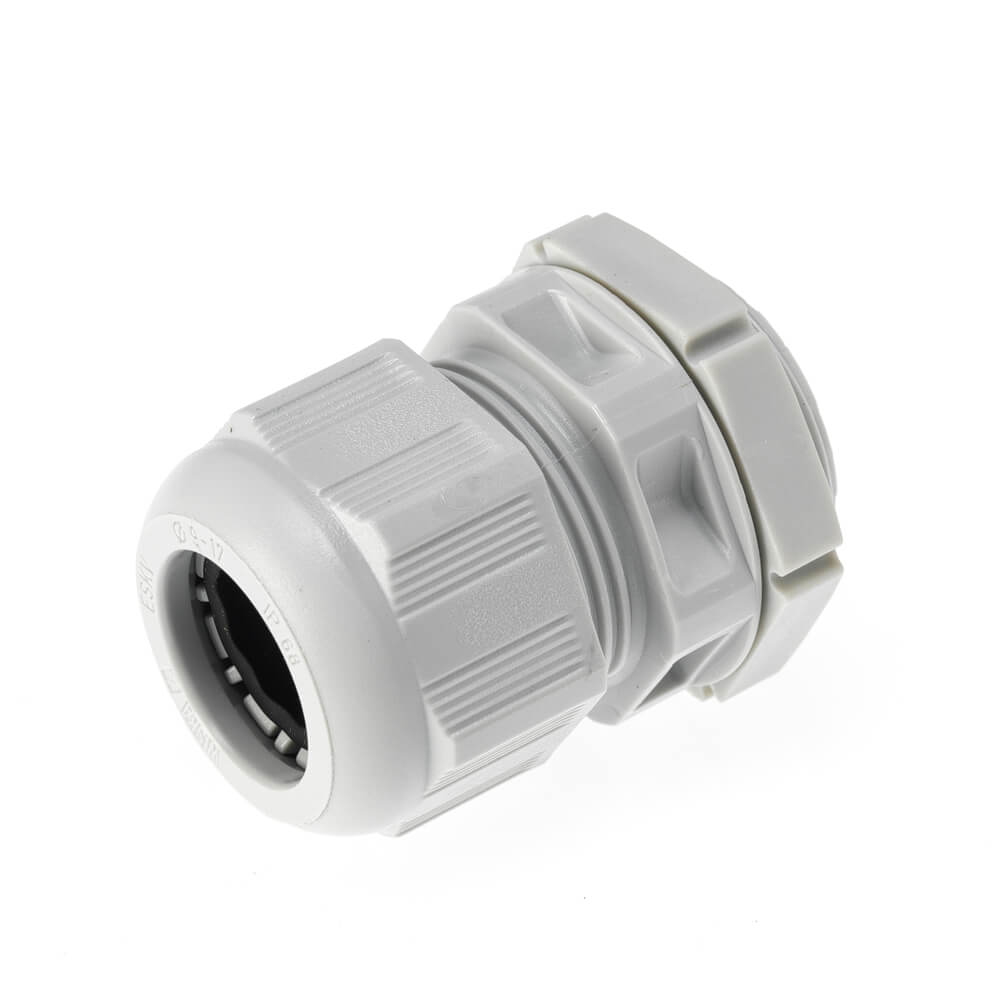

07-A6-325 - CG4 M25 Cable Gland:
Max Cable Size - 17mm
Min Cable Size - 9mm

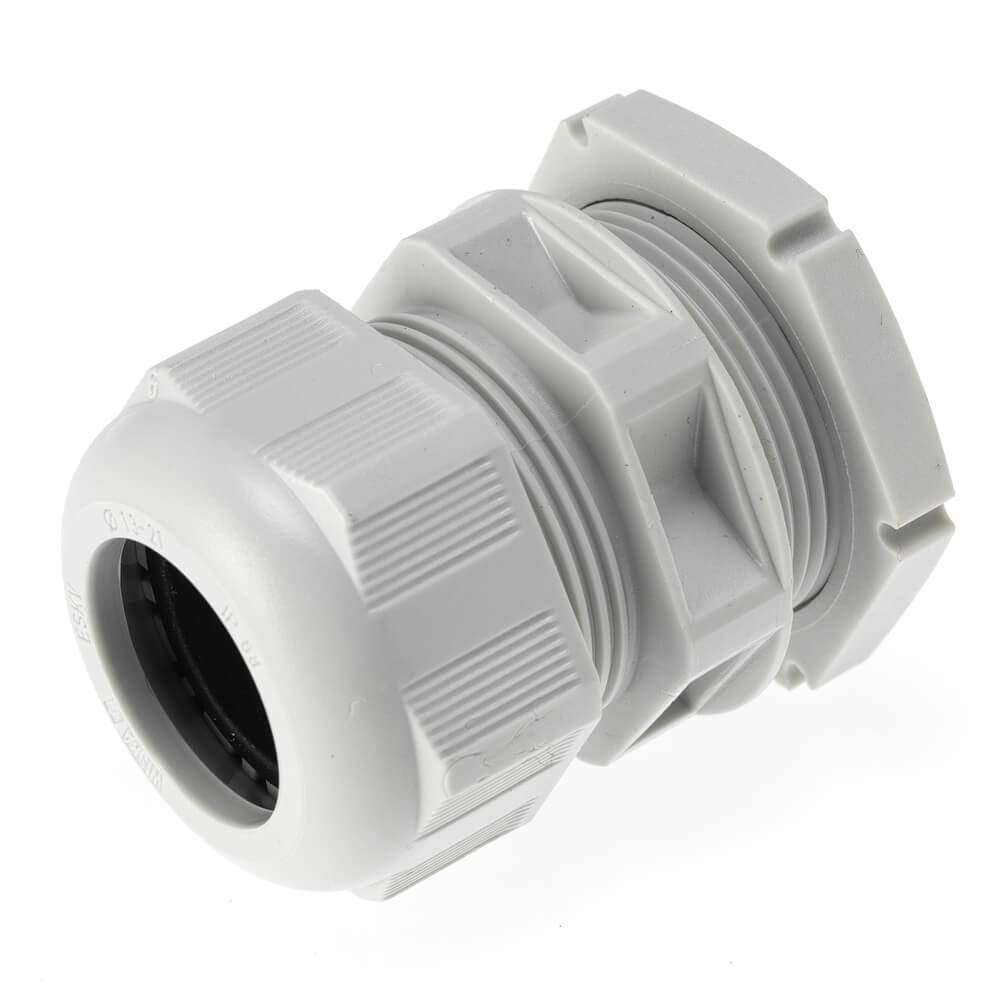

07-A6-332 - CG5 M32 Cable Gland:
Max Cable Size - 21mm
Min Cable Size - 13mm

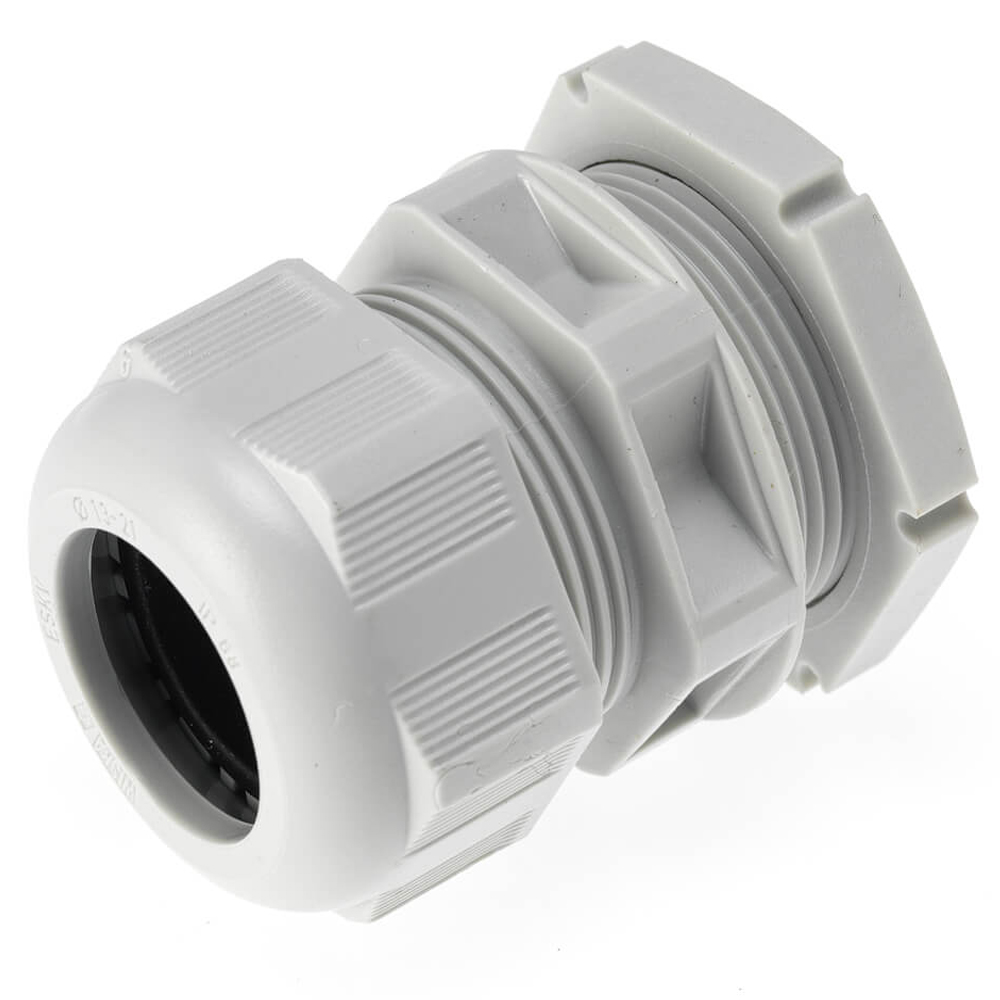

07-A6-226 - CG6 M40 Cable Gland:
Max Cable Size - 32mm
Min Cable Size - 22mm
Additional
| Options | CG1 M12 Cable Gland (3-7mm Cable Size), CG2 M20 Cable Gland (6-13mm Cable Size), CG4 M25 Cable Gland (9-17mm Cable Size), CG5 M32 Cable Gland (13-21mm Cable Size), CG6 M40 Cable Gland (22-32mm Cable Size) |
|---|---|
| Brand | Index |
