Heavy Duty Cast Hinge - 65 x 65mm

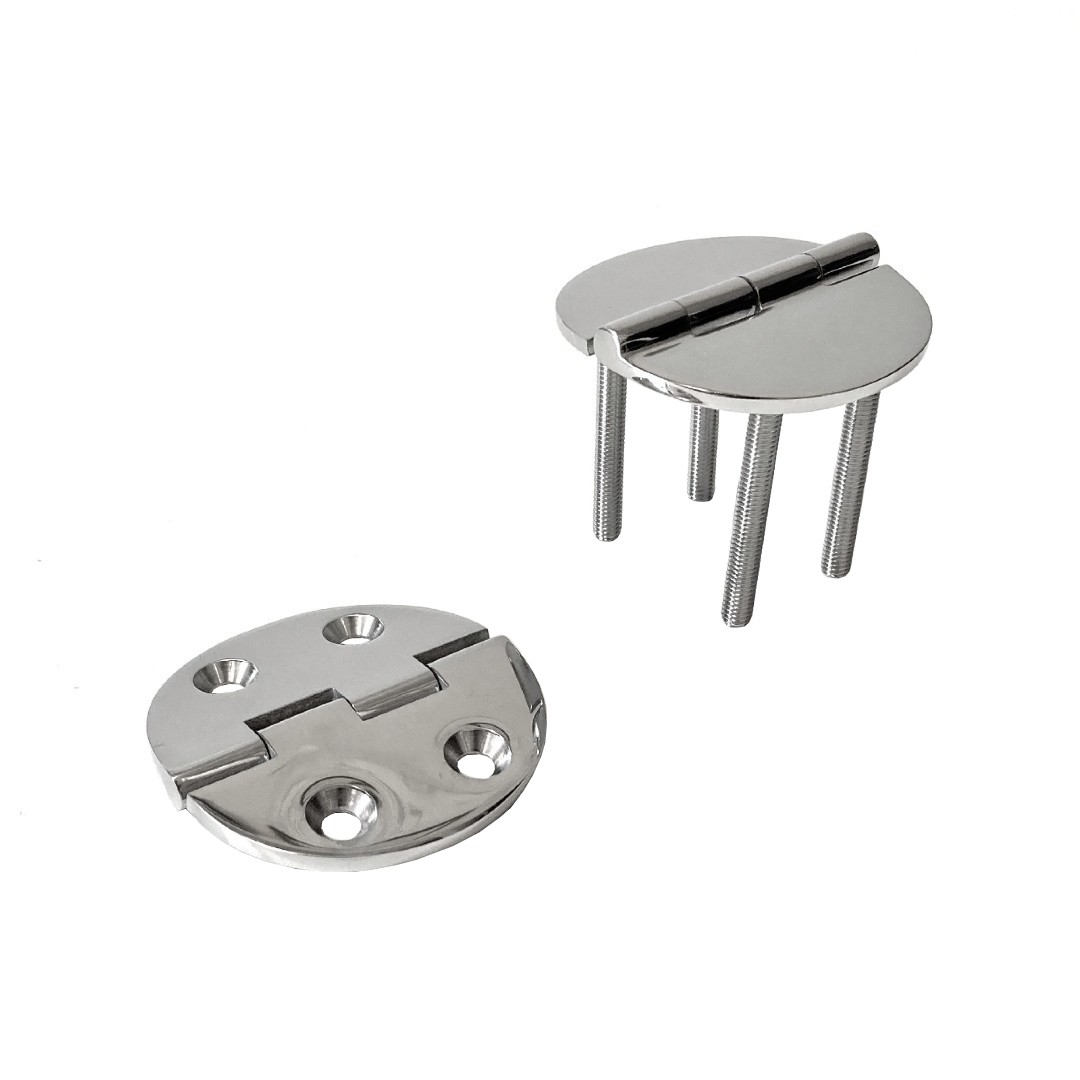

These heavy-duty hinges are manufactured from cast 316 Stainless Steel and are hand polished for an elegant finish. They can be supplied in four configurations. Top pin (hinge opens 180 deg.), under pin (hinge opens 95 deg.), countersunk (for surface mounting) or studs (for under mounting).
Description
These heavy-duty hinges are manufactured from cast 316 Stainless Steel and are hand polished for an elegant finish. They can be supplied in four configurations. Top pin (hinge opens 180 deg.), under pin (hinge opens 95 deg.), countersunk (for surface mounting) or studs (for under mounting).
All Stud mounted hinges have an M6 Stud, whilst the surface mounted hinges require a #6 Countersunk Screw. Other combinations are available at special request. Please contact our office for further details.
10A-86320A - Under Pin, Countersunk - 65mm x 65mm
10A-86320B - Under Pin, Stud - 65mm x 65mm
10A-86320C - Top Pin, Countersunk - 65mm x 65mm
10A-86320D - Top Pin, Stud - 65mm x 65mm
Technical Drawing - 10A-86320A
Technical Drawing - 10A-86320D
Additional
| Options | Top Pin Countersunk, Top Pin Stud, Under Pin Countersunk, Under Pin Stud |
|---|---|
| Brand | C-Quip |
| Mounting Options | Countersunk - Top Pin, Countersunk - Underpin, Stud Mount - Bottom PIn, Stud Mount - Top Pin |
| Hinge Length | 65mm |
| Hinge Width | 65mm |
| Hinge Type | Heavy Duty Cast |
