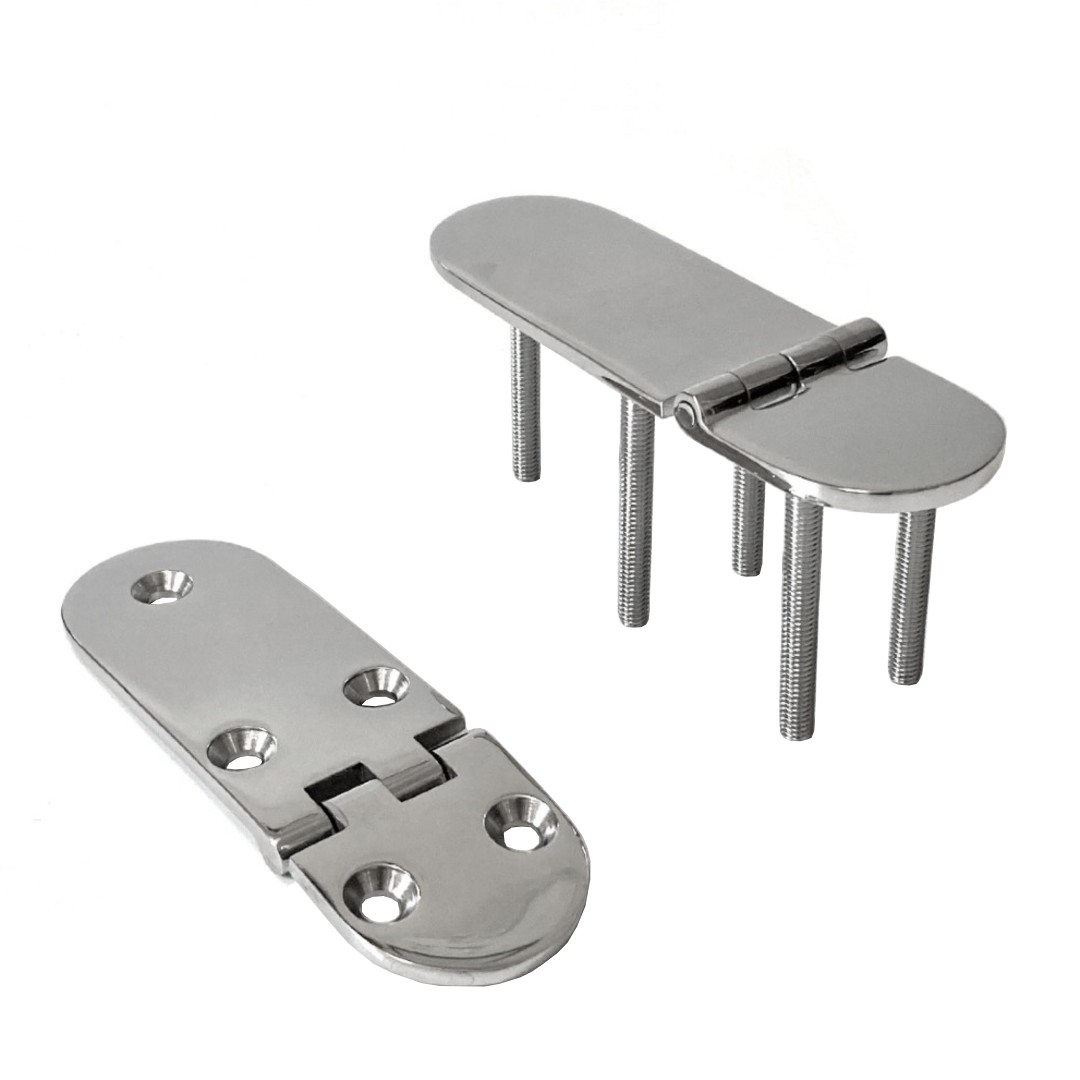

These heavy-duty hinges are manufactured from cast 316 Stainless Steel and are hand polished for an elegant finish. They can be supplied in four configurations. Top pin (hinge opens 180 deg.), under pin (hinge opens 95 deg.), countersunk (for surface mounting) or studs (for under mounting).
All Stud mounted hinges have an M6 Stud, whilst the surface mounted hinges require a #6 Countersunk Screw. Other combinations are available at special request. Please contact our office for further details.

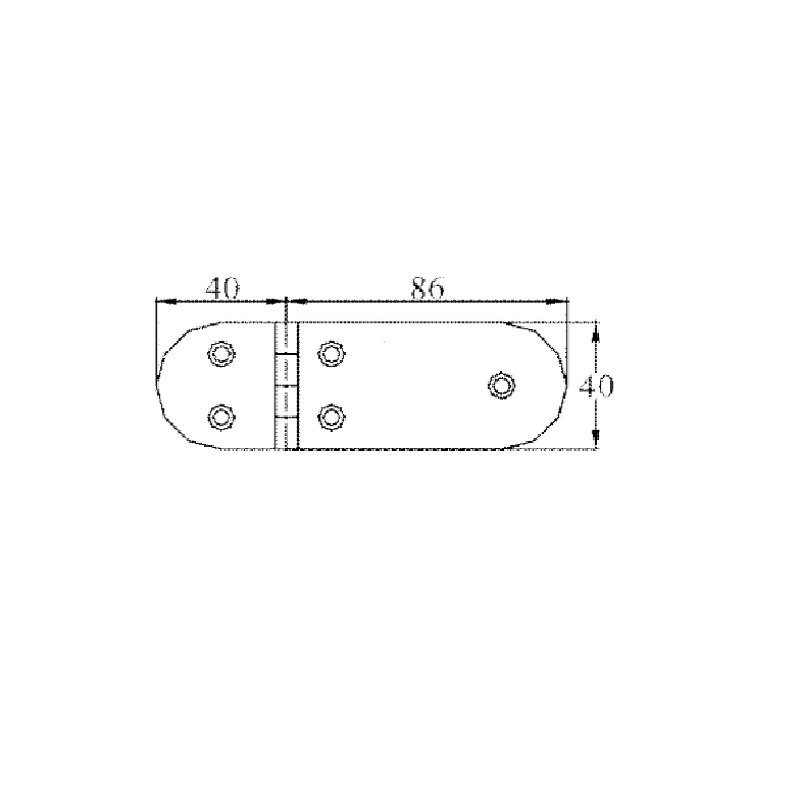

10A-86332A – Under Pin, Counter sunk – 40mm x 126mm
10A-86332B – Under Pin, Stud – 40mm x 126mm
10A-86332C – Top Pin, Countersunk – 40mm x 126mm
10A-86332D – Top Pin, Stud – 40mm x 126mm
