Halyard Noise Insulation Materials

Description

Halyard noise insulation uses high performance barrier materials to achieve excellent acoustic results with low frequency noise associated with diesel engines and other onboard noise generating equipment.

Technical Specification

  • Fire Safety - Compliant with European Recreational Craft Directive (RCD)
  • Class 0 fire rated (BS476-7) - (Excludes Halcoustic and SilentWave)
  • Lowest possible weight
  • All materials tested to ISO 4589-3 (oxygen index – elevated temperature)
  • Compliant to ISO 9094-2 Fire Protection for craft with a hull over 15m
  • Bulkhead performance up to Rw 54dB (EN ISO 717-1)
  • Fuel & oil-resistant facing

Packing (12, 25 and 32mm materials):

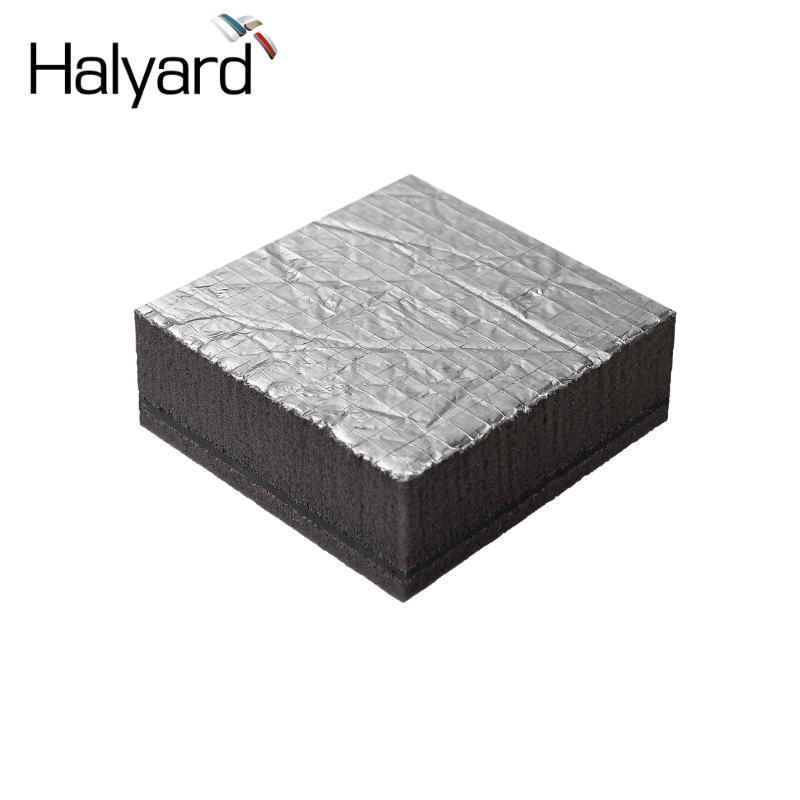

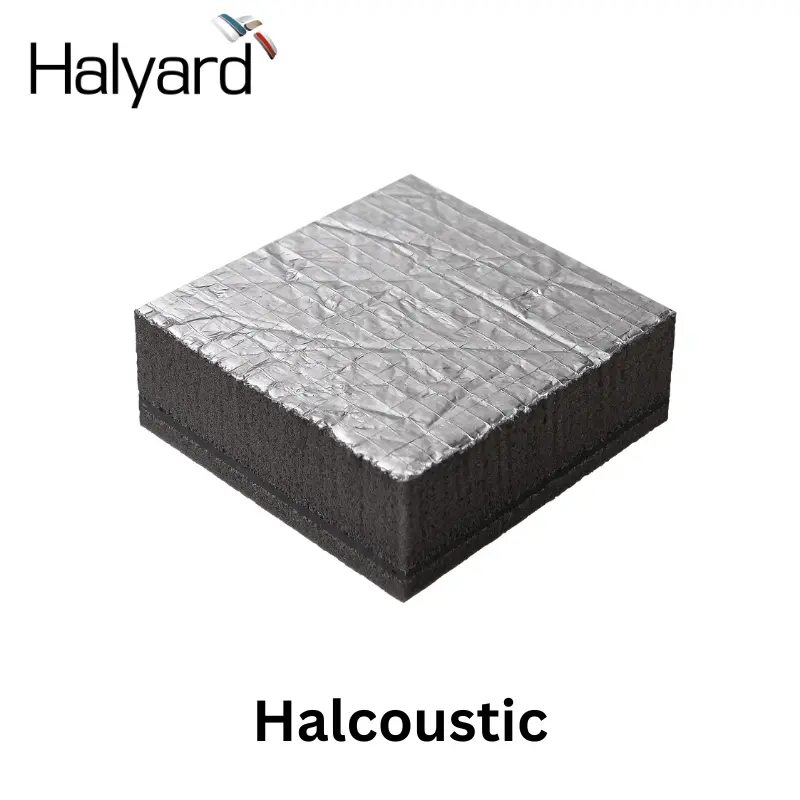

Halcoustic only: 25mm supplied in packs of 4 sheets 990mm x 590mm (2.3m2)

12 & 32mm supplied in packs of 4 sheets 1000mm x 600mm (2.4m2)

Box weight is approximately 14kg for 12mm, 16kg for 25mm and 19kg for 32mm.

Packing (45mm materials):

45mm supplied in packs of 2 sheets 1000mm x 600mm (1.2m2). Box weight is approximately 16kg.

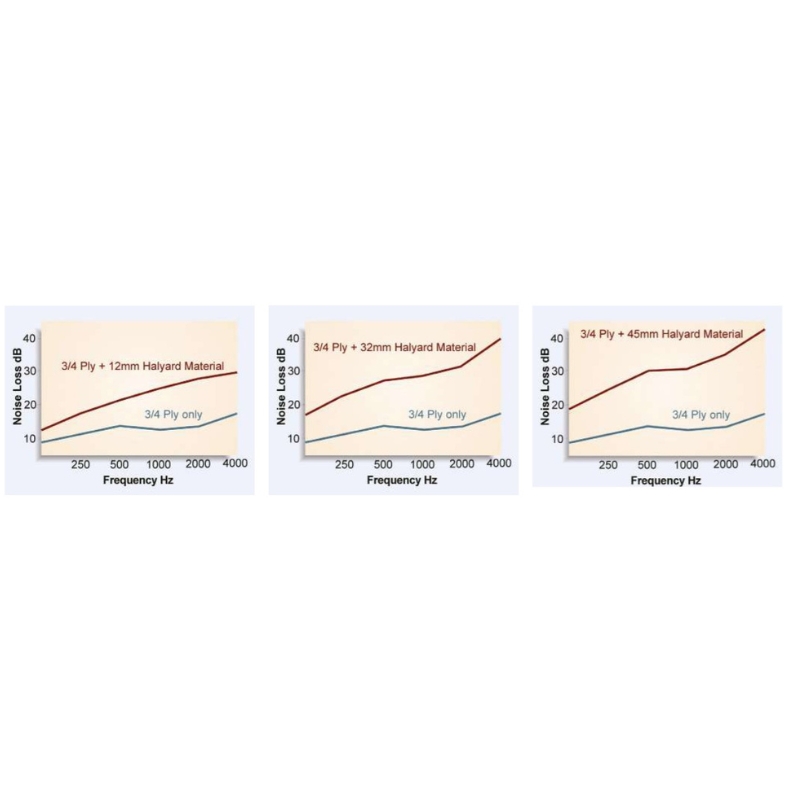

Actual noise attenuation achievable with the products is dependent on many factors relating to the specific installation. Please note the above graphs are indicative only.

Please contact Halyard for further information and detailed product specifications to suit your particular installation requirements.

Additional

BrandHalyard

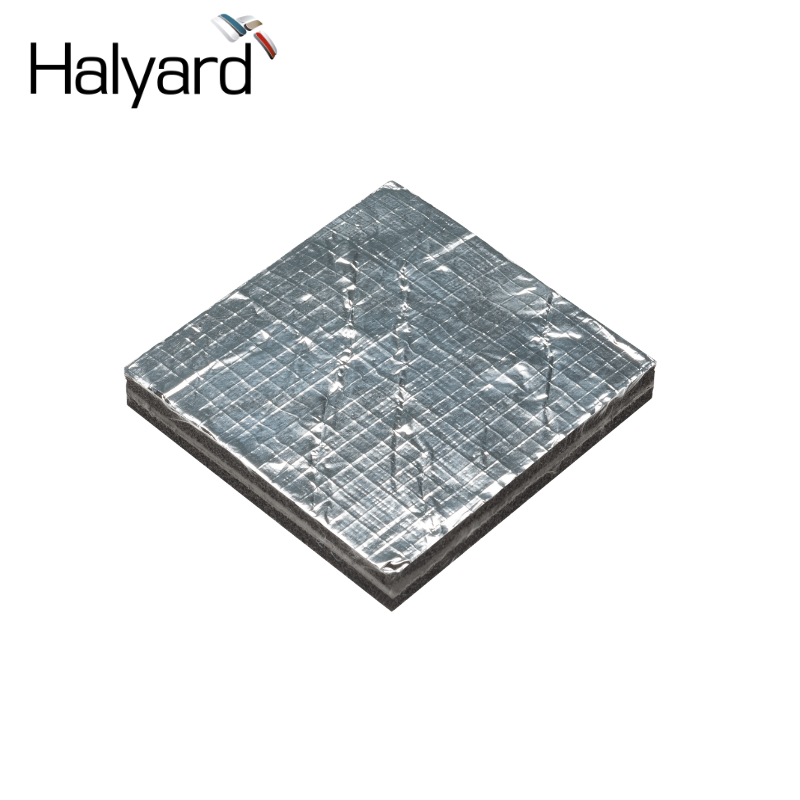

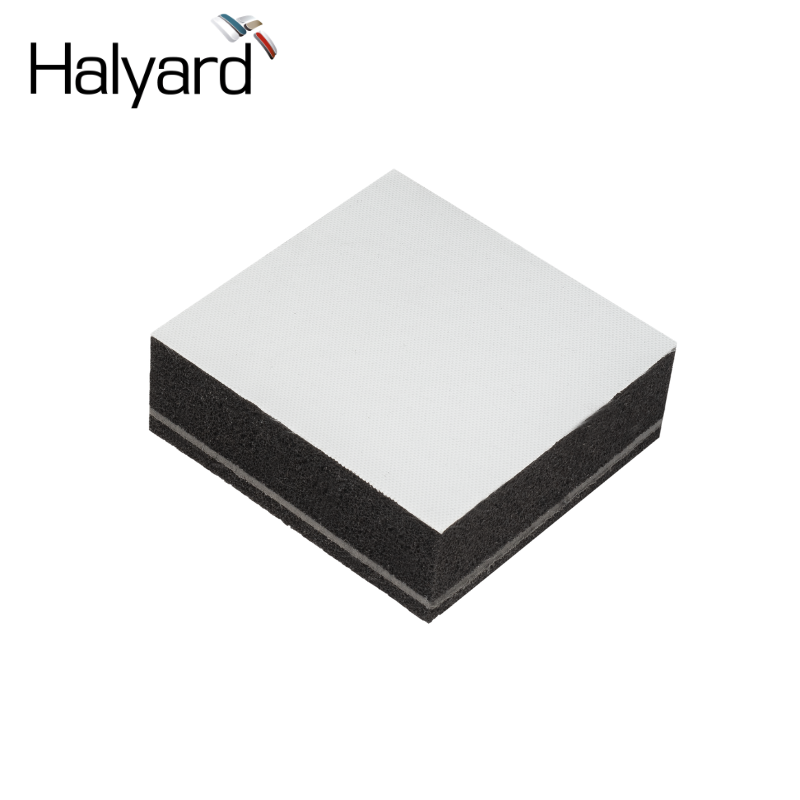

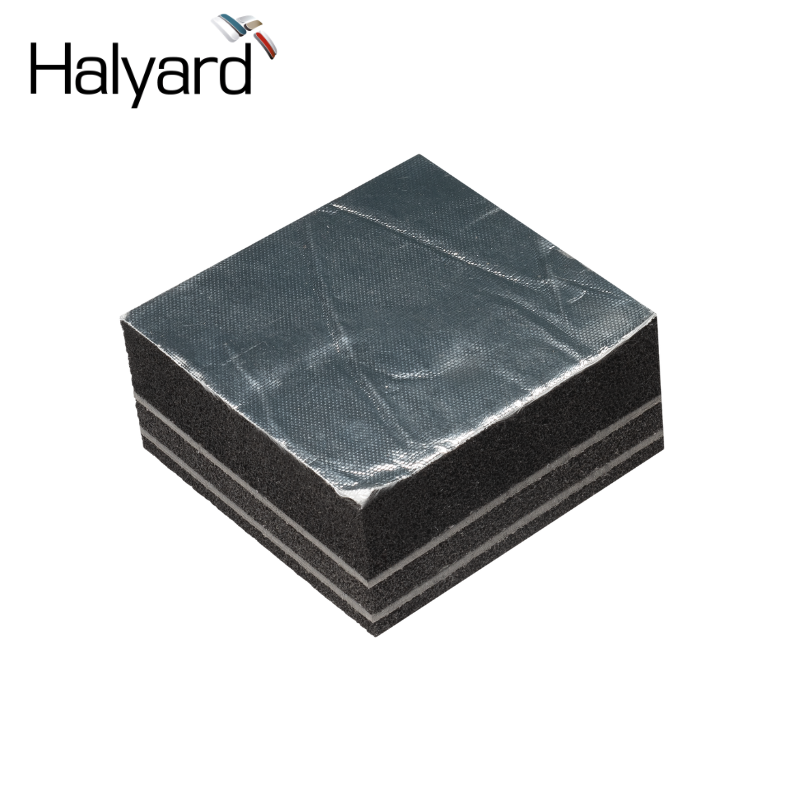

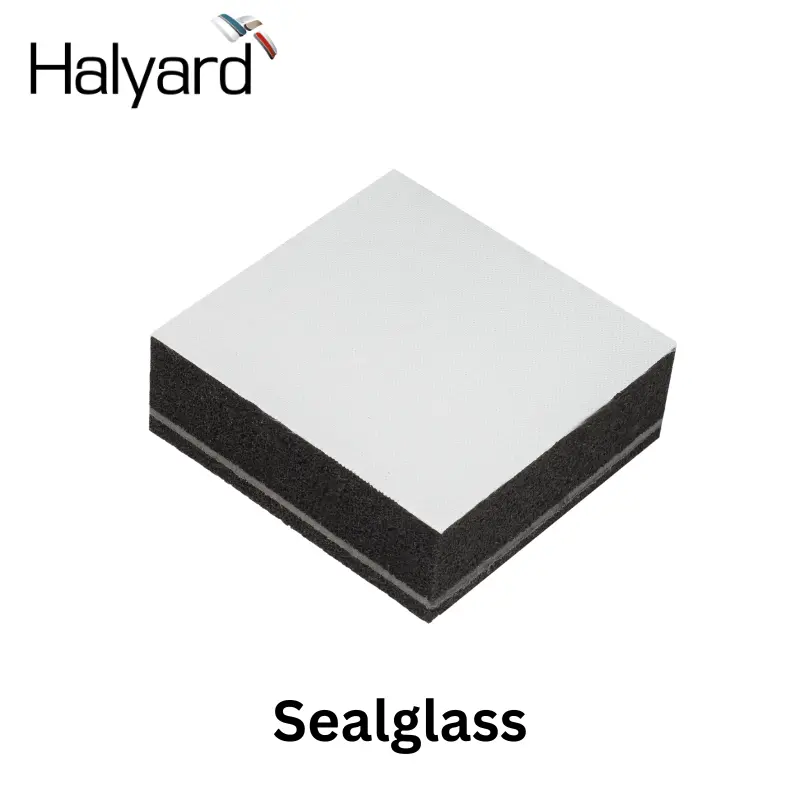

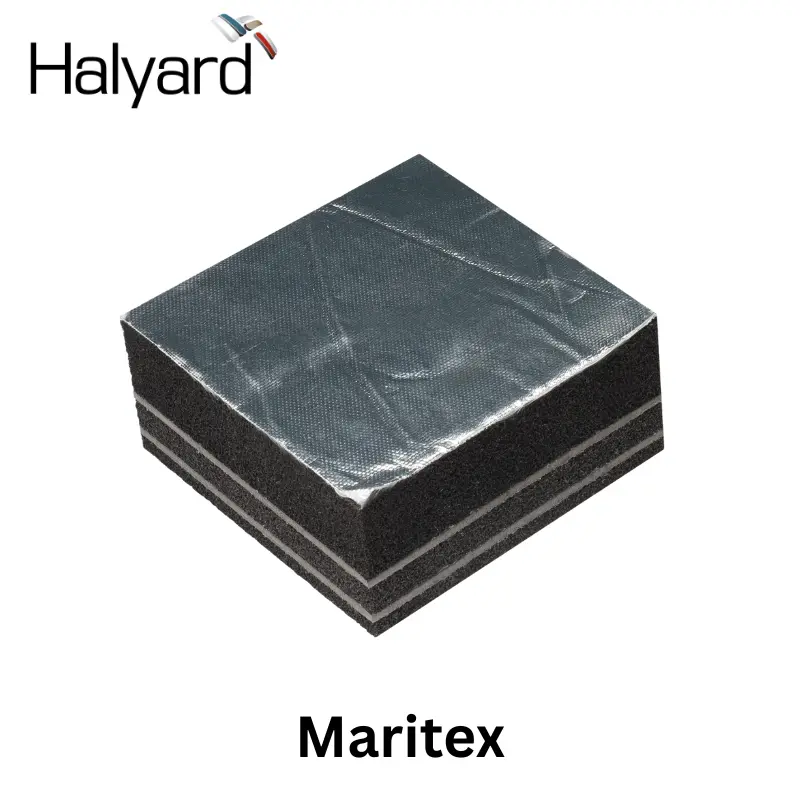

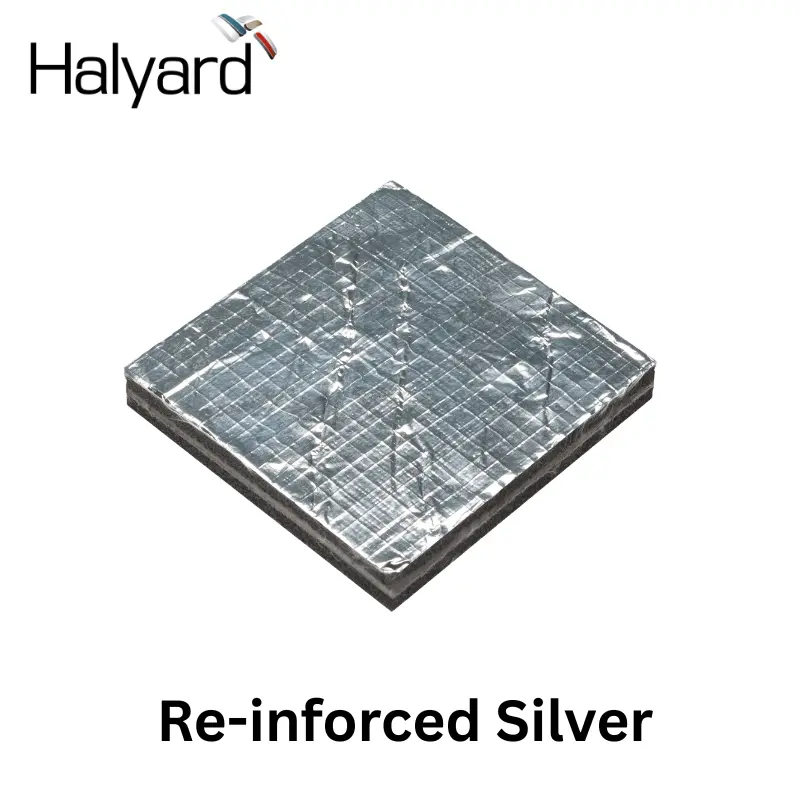

Options12mm (1/2”) Materials (2.4 sq metre packs) - Maritex, 12mm (1/2”) Materials (2.4 sq metre packs) - Sealglass, 12mm (1/2”) Materials (2.4 sq metre packs) - Reinforced Silver, 12mm (1/2”) Self Adhesive Materials (2.4sq metre packs) - Maritex, 12mm (1/2”) Self Adhesive Materials (2.4sq metre packs) - Sealglass, 12mm (1/2”) Self Adhesive Materials (2.4sq metre packs) - Reinforced Silver, 25mm (1”) Value Materials (2.4sq metre packs) - Halcoustic 25 - Non-adhesive Backing, 25mm (1”) Value Materials (2.4sq metre packs) - Halcoustic 25SA - Self-adhesive Backing, 32mm (11/2”) Materials (2.4 sq metre packs) - Maritex, 32mm (11/2”) Materials (2.4 sq metre packs) - Sealglass, 32mm (11/2”) Materials (2.4 sq metre packs) - Reinforced Silver, 32mm (11/2”) Materials (2.4 sq metre packs) - Maritex, 32mm (11/2”) Materials (2.4 sq metre packs) - Sealglass, 32mm (11/2”) Materials (2.4 sq metre packs) - Reinforced Silver, 32mm (11/2”) Self Adhesive Materials (2.4sq metre packs) - Maritex, 32mm (11/2”) Self Adhesive Materials (2.4sq metre packs) - Sealglass, 32mm (11/2”) Self Adhesive Materials (2.4sq metre packs) - Reinforced Silver, 45mm (13/4”) Materials (1.2sq metre packs) - Maritex, 45mm (13/4”) Materials (1.2sq metre packs) - Sealglass, 45mm (13/4”) Materials (1.2sq metre packs) - Reinforced Silver, 45mm (13/4”) Self Adhesive Materials (1.2sq metre packs) - Maritex, 45mm (13/4”) Self Adhesive Materials (1.2sq metre packs) - Sealglass, 45mm (13/4”) Self Adhesive Materials (1.2sq metre packs) - Reinforced Silver, 20m x 50mm Sealglass Jointng Tape, 5m x 50mm Maritex Jointing Tape, 20m x 50mm Maritex Jointing Tape, 50m x 50mm Silver Polyester Jointing Tape, Stick Pin & Backing Washer
