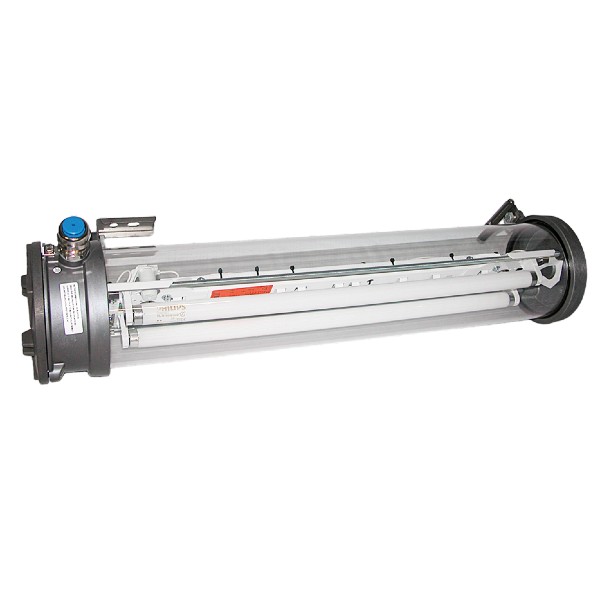

GTX Explosion Proof Lighting Fixture

Description

Surface luminaire for hazardous areas zone 1 and 2 (EN50014, EN50018). Design according to rules of maritime classification societies, additional VDE and IEC/EN.

Polycarbonate tube with white coated endcaps in seawater resistant aluminium. Pressure tested up to 15 bar.

Removable gear tray with all electrical components. Version with battery backup system has integrated NiCd battery, incorporated overloading protection and LED for indication of battery.

With magnetic ballasts and capacitor (F) or electronic ballast (HF). Emergency versions with integral battery available on request.

AC 115, 220, 230 V ± 10% 50<60 Hz. Two tubes T26 (T8), 18 or 36 W IP67
