Grand Slam Latch (Medium)
Medium Grand Slam Latch. Available with or without a lock.
Description

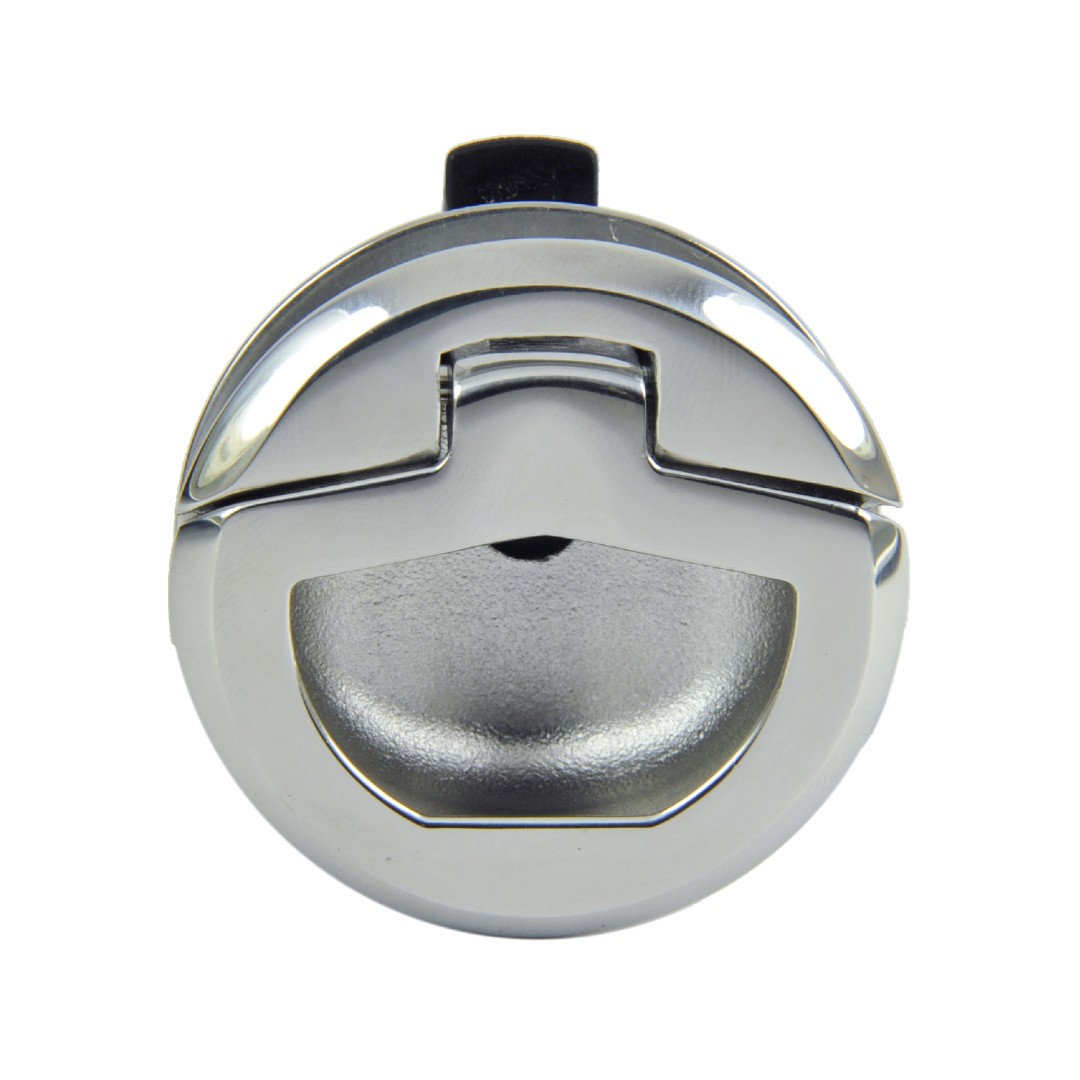

70-1007811 - No Lock

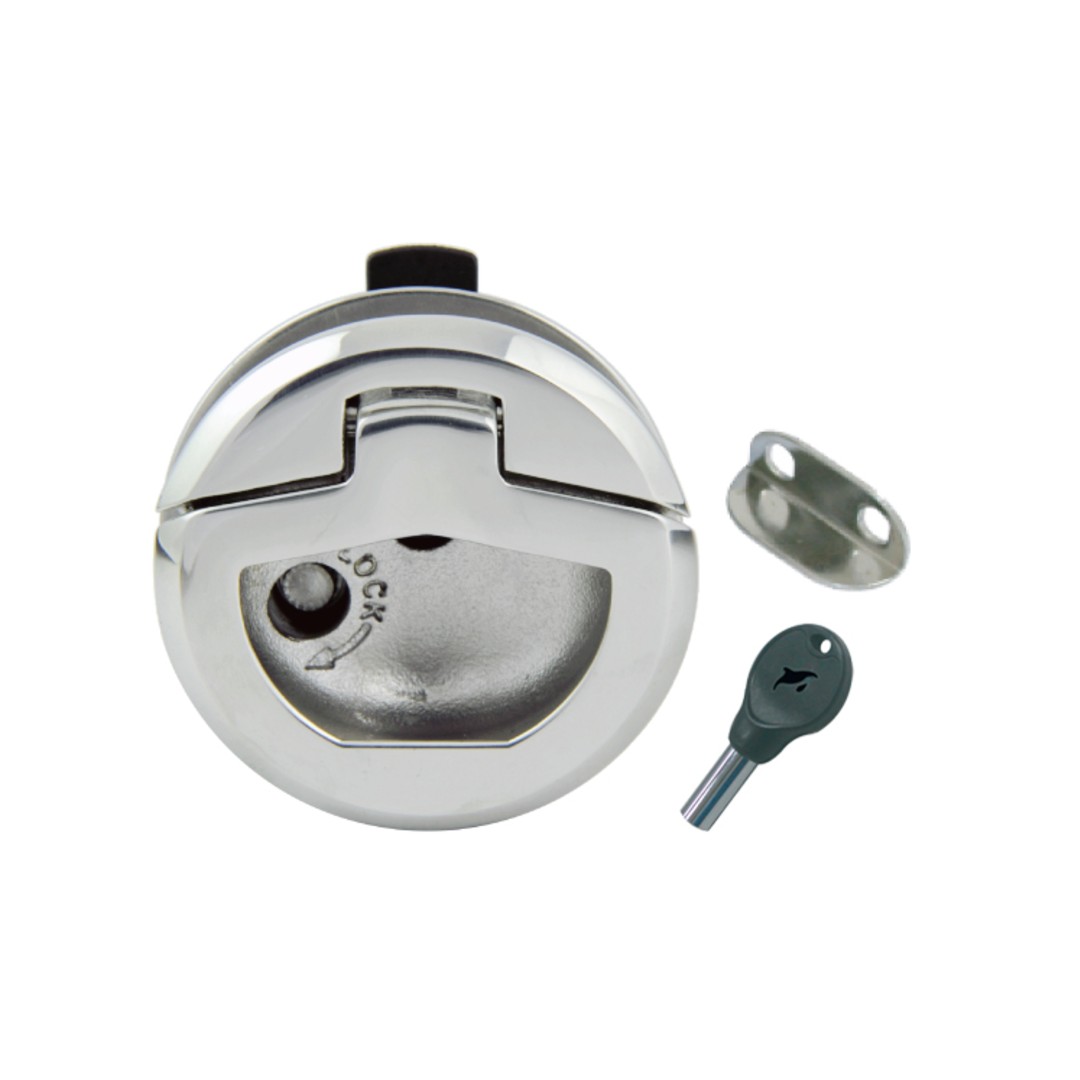

70-1007812 - With Lock
- 45mm Cut Out, 57mm Diameter Overall
- 316 Stainless Steel
- Large handle opening for a comfortable grip
- Anti-rattle design with a nylon slide to ensure the slam latch is quiet when in use
- Reversible backing plate for a wide range of door thicknesses
- Watertight Gasket
-Suitable for door thickness 9mm~22mm(3/8"~7/8")

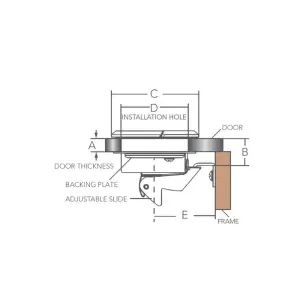

Bulk No. | Shape | Model | A mm | B mm | C mm | D mm | E mm |
| 1007811 | Round | W/O Lock | 9~22(3/8"~7/8") | 19~25(3/4"~1") | 57(2-1/4") | 45(1-3/4") | 40(1-9/16") |
| 1007812 | Round | W/ Lock | 9~22(3/8"~7/8") | 19~25(3/4"~1") | 57(2-1/4") | 45(1-3/4") | 40(1-9/16") |
Additional
| Options | 57mm Diameter, 57mm Diameter with Lock |
|---|---|
| Brand | C Quip |
