Grafter Plug & Panel Mount Socket Kit - Screw Terminal
The Grafter range of environmentally rated sealed circular connectors, plugs and sockets are designed to deliver safe, secure, and reliable connections for harsh environment applications.
- Stock Level
- On Back Order
- SKU
- P-07-KITS2PS
Description
The Grafter range of environmentally rated sealed circular connectors, plugs and sockets are designed to deliver safe, secure, and reliable connections for harsh environment applications.
Rated at up to 250V and 12A the Grafter connectors are suitable for lighting, audio, nav kit and many other electrical accessories. They are small, unobtrusive, and come with waterproof caps to keep water out when disconnected. The Grafter range offers in-line plugs and sockets, and optional mounted sockets.

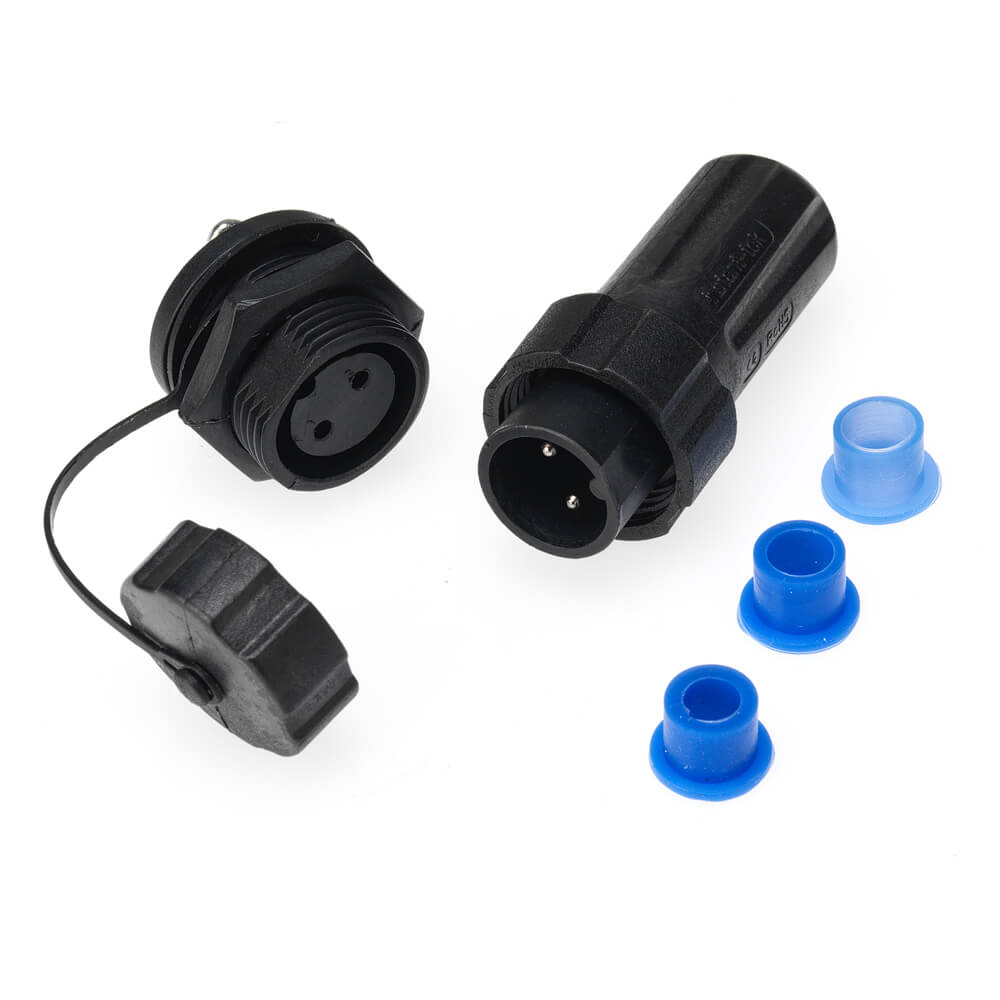

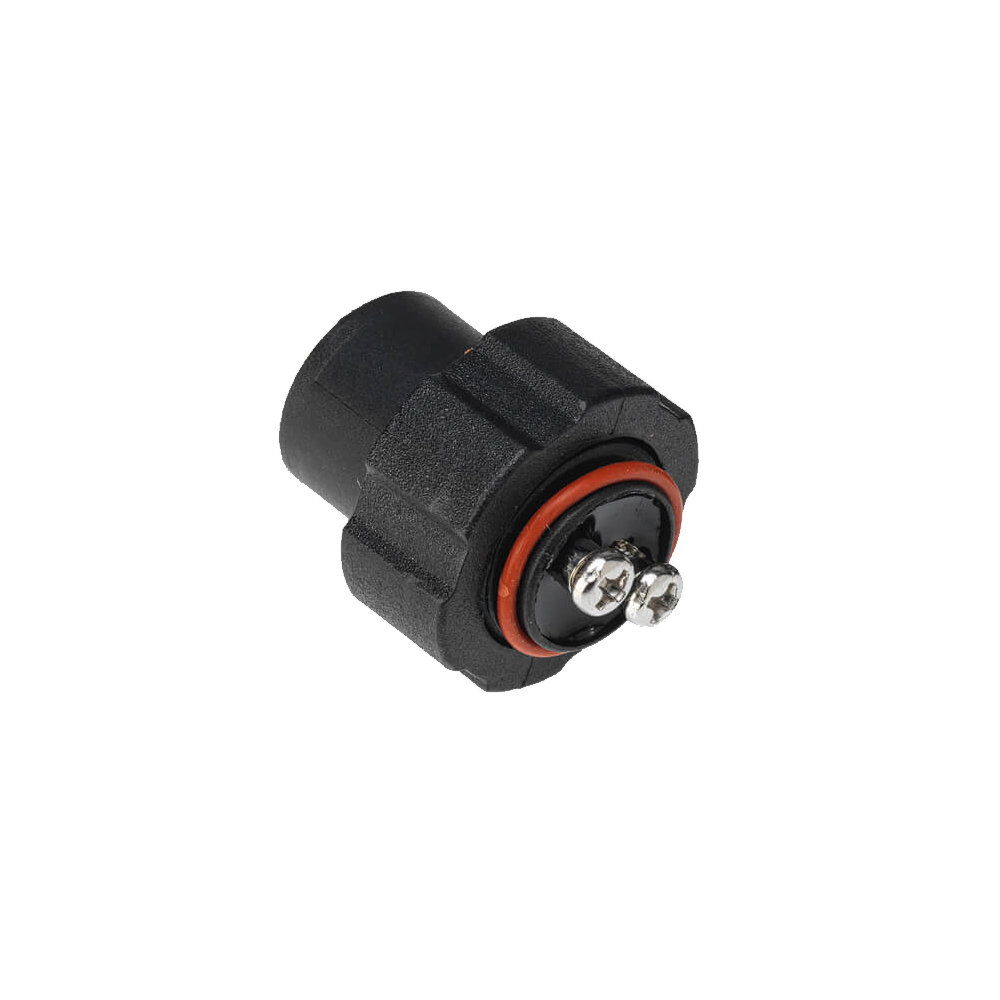

The screw terminal plug and socket pair of connectors are available in: 2 pin, 3 pin and 4 pin variants.
Dimensions - 72 x 31 mm
IP Rating - IP68
Max Cable Size - 6.5 - 8.5 mm
Additional
| Options | 2 Pin (Screw Terminal), 3 Pin (Screw Terminal), 4 Pin (Screw Terminal) |
|---|---|
| Brand | Index |
