£14.30 - £20.80

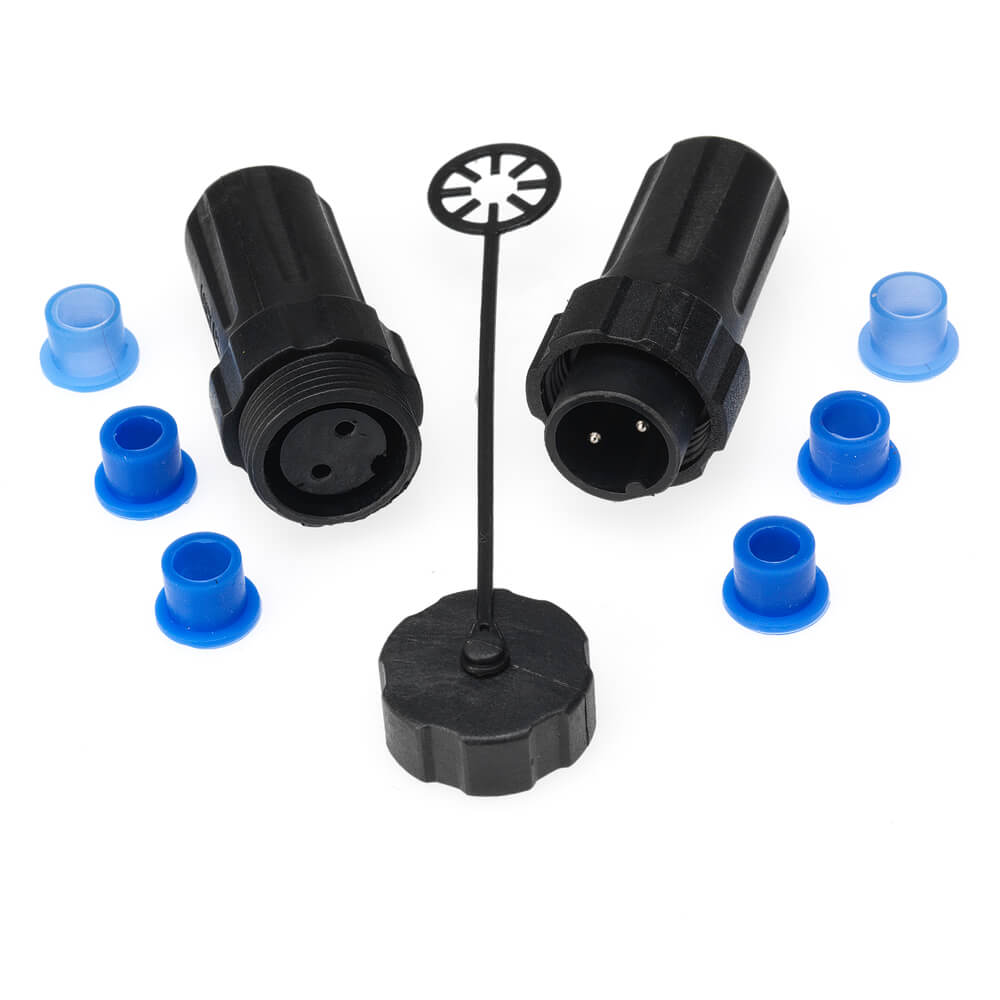

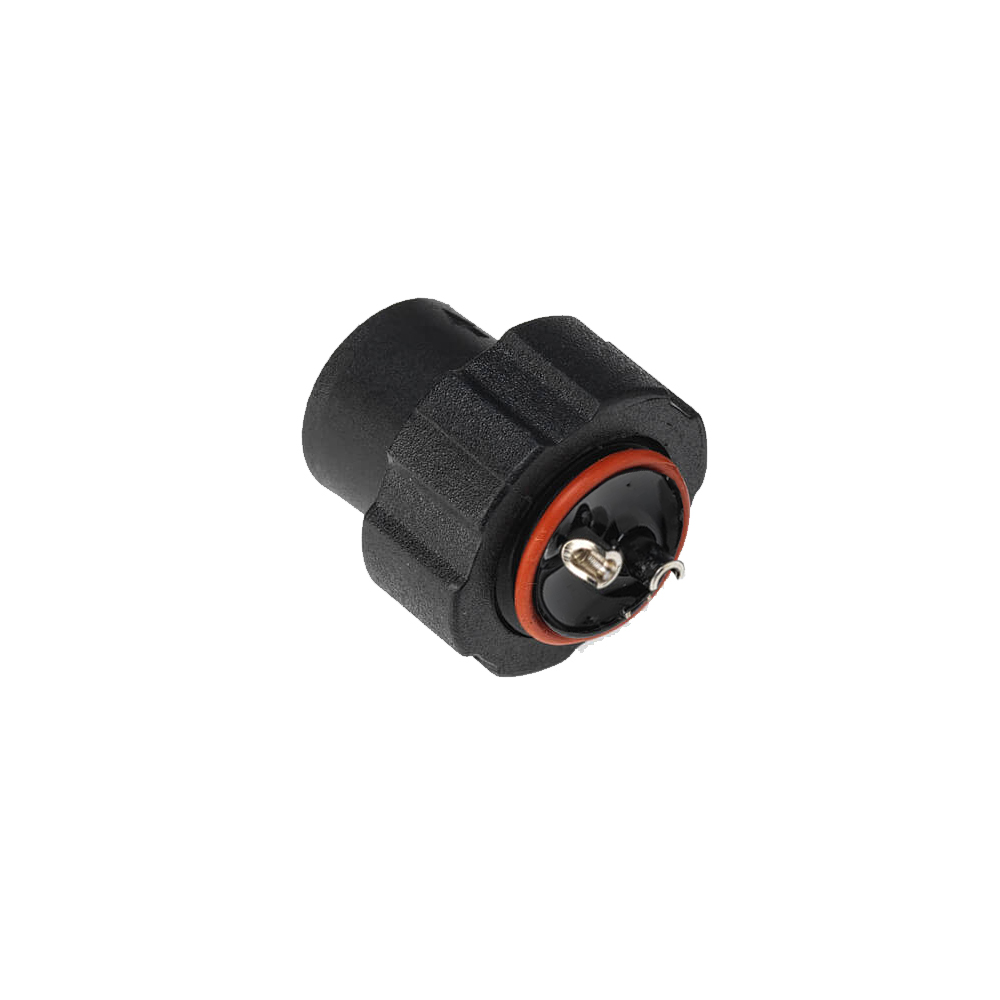

Grafter In Line Plug & Socket Kit – Solder Terminal

The Grafter range of environmentally rated sealed circular connectors, plugs and sockets are designed to deliver safe, secure and reliable connections for harsh environment applications….

Description

The Grafter range of environmentally rated sealed circular connectors, plugs and sockets are designed to deliver safe, secure and reliable connections for harsh environment applications.

Rated at up to 250V and 12A the Grafter connectors are suitable for lighting, audio, nav kit and many other electrical accessories. They are small, unobtrusive and come with waterproof caps to keep water out when disconnected. The Grafter range offers in-line plugs and sockets, and optional mounted sockets.

The solder terminal in-line pair connectors (plug and socket) are available in : 2 pin, 3 pin, 4 pin, 5 pin and 6 pin variants.

Dimensions – 99 × 26 mm

IP Rating – IP68

Rating – 250V 12A (2-4 Pin), 250V 5A (5-6 pin)

Max Cable Size – 6.5 – 8.5 mm

3 Pre-Formed Bungs Included

Additional information

Options

, , , ,

£14.30 - £20.80
