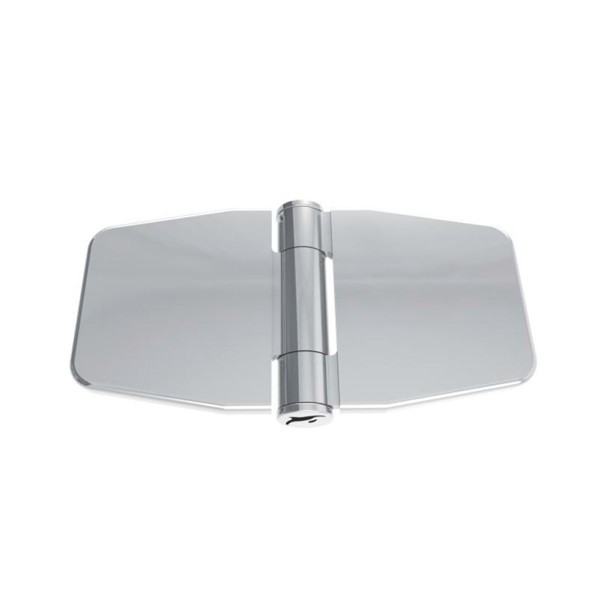

Friction Hinge with Stainless Steel Cover
Friction Hinge with Stainless Steel Cover. Providing constant torque throughout the entire range of motion.
Description
70-0519423 - Top Pin
70-0519523 - Bottom Pin

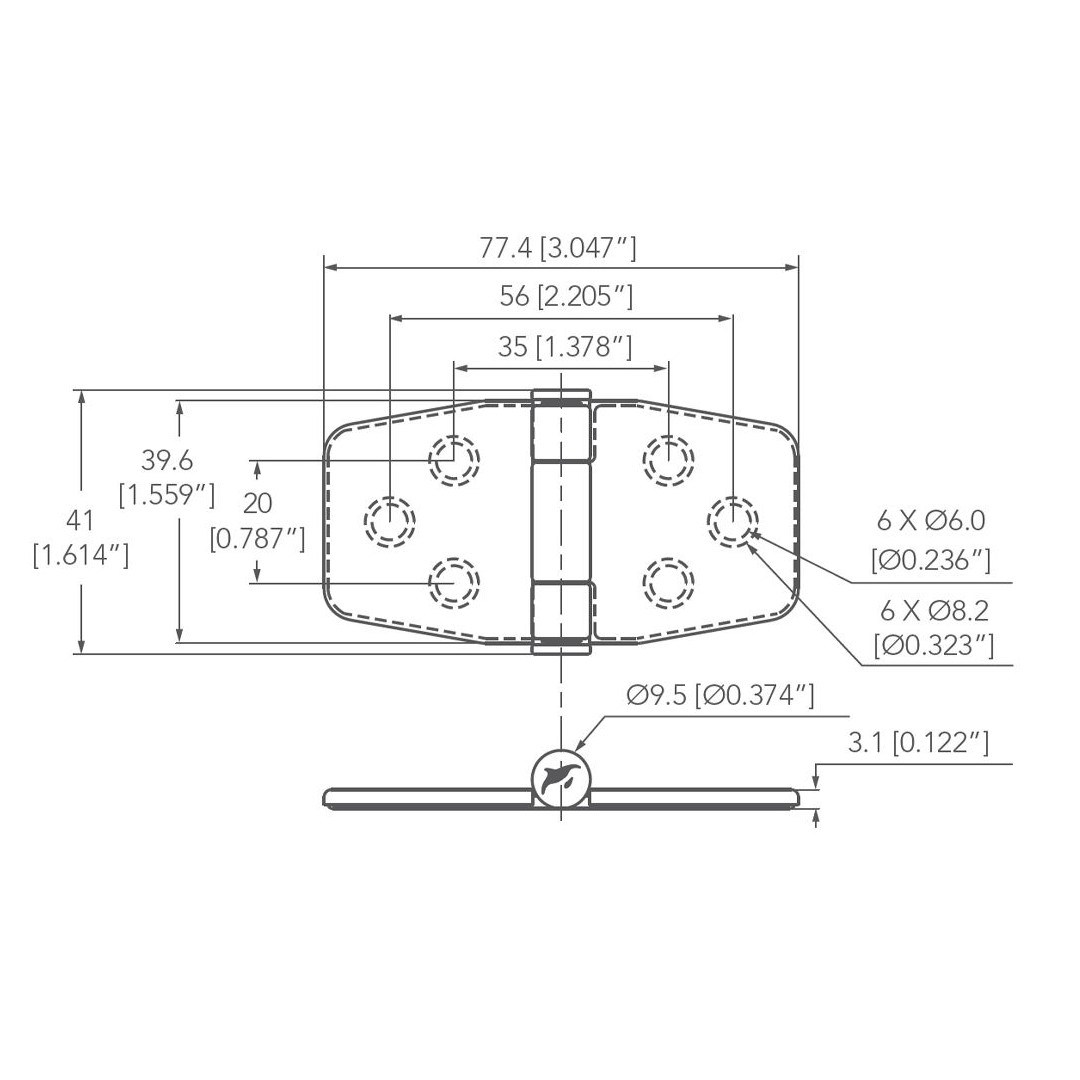

- 78 x 41mm
- 316 Stainless Steel
- Holds doors at any angle without torque adjustment
- Passed 10,000 times cycle test and lost less than 10% torque
- Passed 500 hour salt spray test
Additional
| Options | Bottom Pin, Top Pin |
|---|---|
| Brand | C Quip |
| Mounting Options | Top Pin, Under Pin |
| Hinge Length | 78mm |
| Hinge Width | 41mm |
| Hinge Type | Friction |
