Cubic Magnetic Holder - Flush

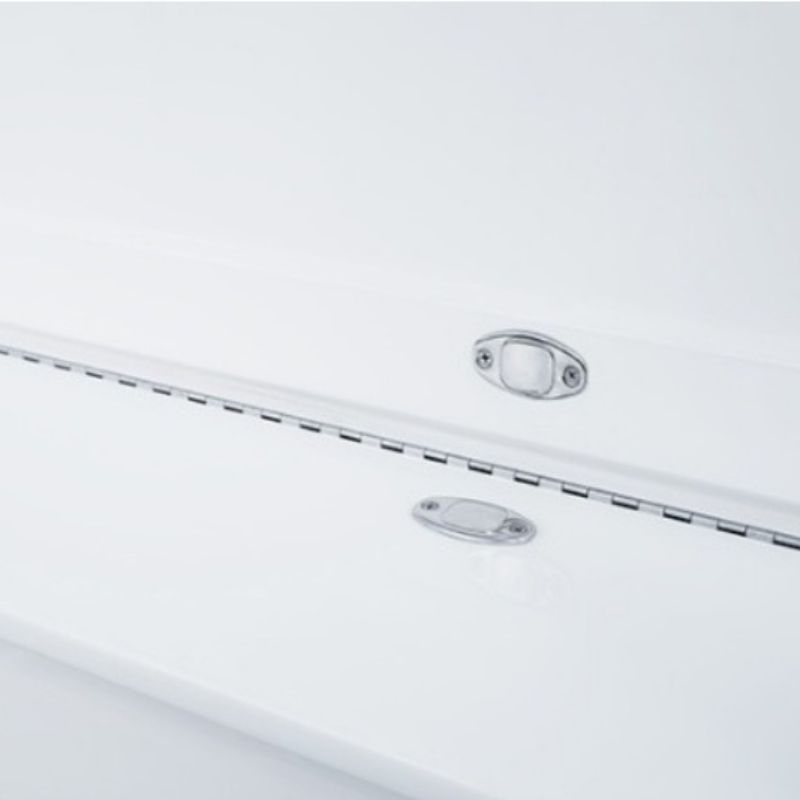

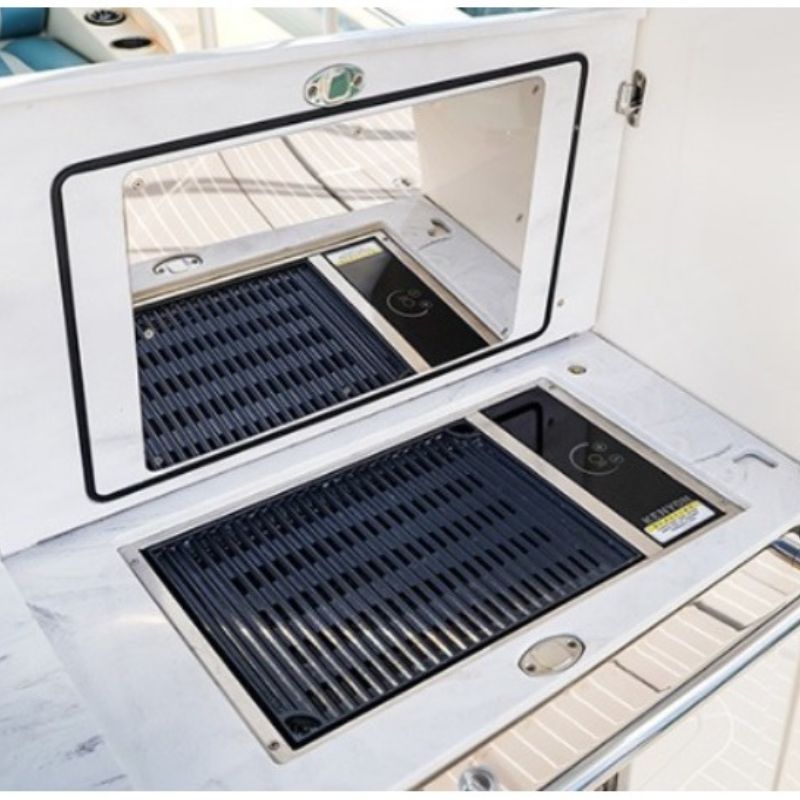

These magnets are seated in durable 316 stainless steel and fully sealed to withstand harsh marine environments. They can be matched in north–south pole sets, and when pairing a flush rubber-bumper magnet with a proud magnet, the proud side should be equal or larger in size to prevent damage. The rubber-bumper style also helps reduce noise, making it ideal for interior applications, though it is not recommended for exterior use due to potential UV degradation. Each magnet is sold individually and is compatible with M4 or #8 screws.
Description

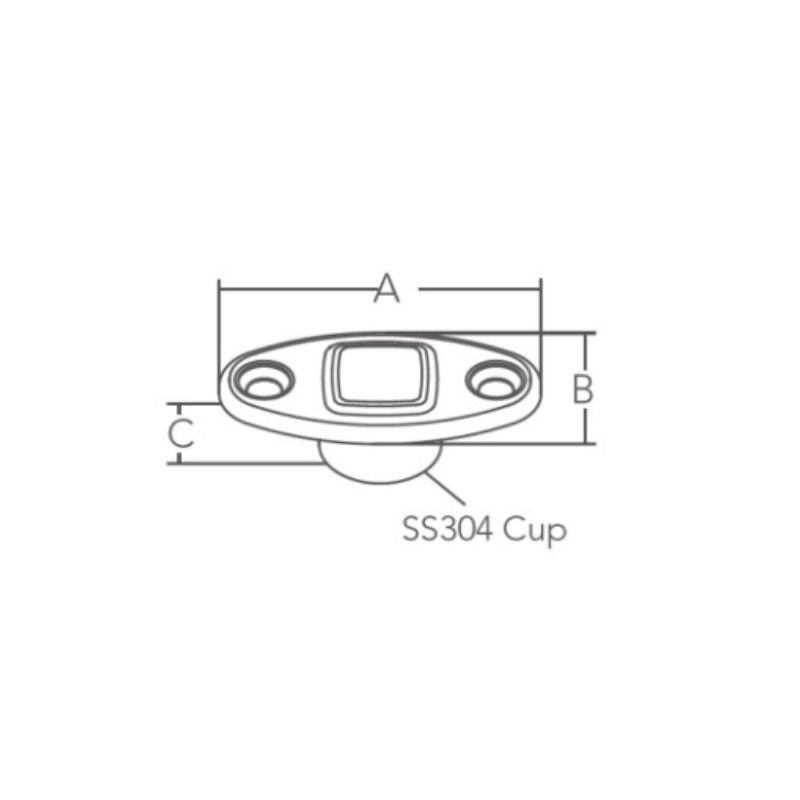

SKU | Mag. Pole | Model | Mag. Size | A mm | B mm | C mm | Installation Hole |

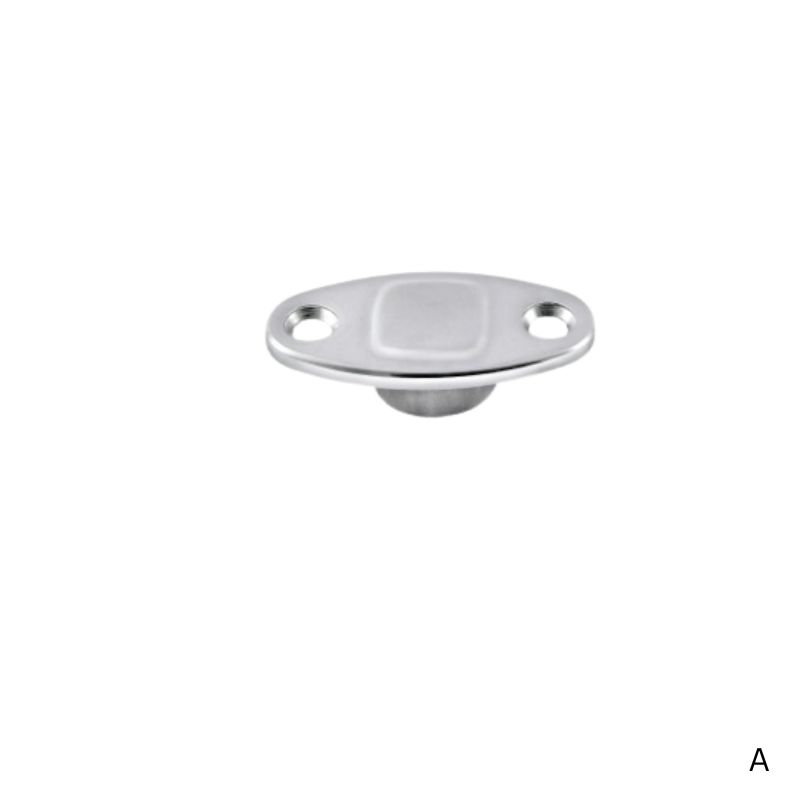

| 70-0207661P | North | A | 15 x 10 | 50(2") | 25(1") | 10(3/8") | 20(13/16") |
| 70-0207661N | South | A | 15 x 10 | 50(2") | 25(1") | 10(3/8") | 20(13/16") |
| 70-0207661NR | South | D | 15 x 10 | 50(2") | 25(1") | 11(7/16") | 20(13/16") |

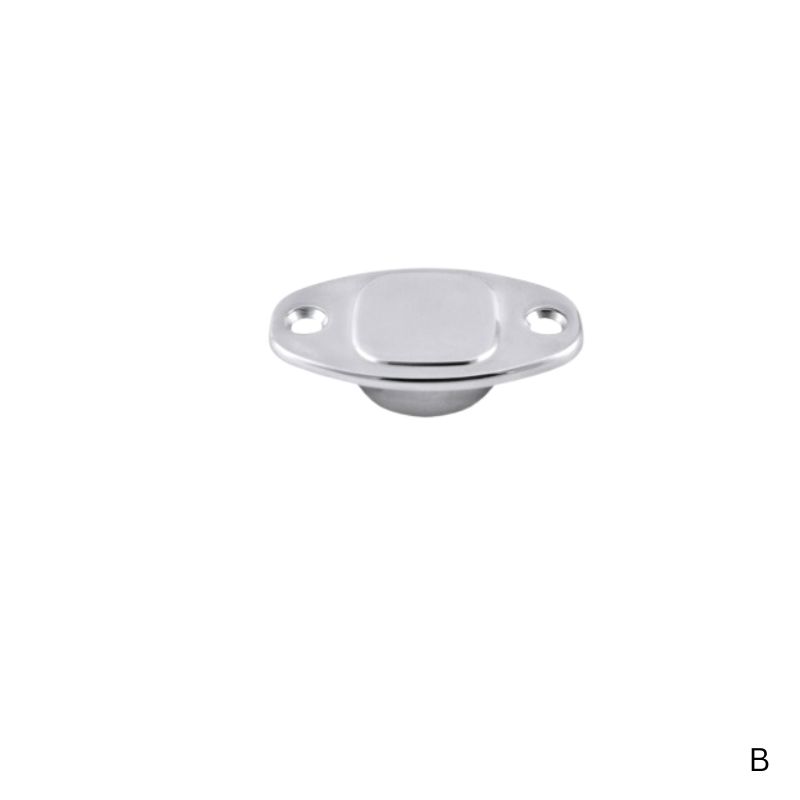

| 70-0207663P | North | B | 25 x 10 | 60(2-3/8") | 35(1-3/8") | 10(3/8") | 29(1-1/8") |
| 70-0207663N | South | B | 25 x 10 | 60(2-3/8") | 35(1-3/8") | 10(3/8") | 29(1-1/8") |
| 70-0207663NR | South | D | 25 x 10 | 60(2-3/8") | 35(1-3/8") | 11(7/16") | 29(1-1/8") |

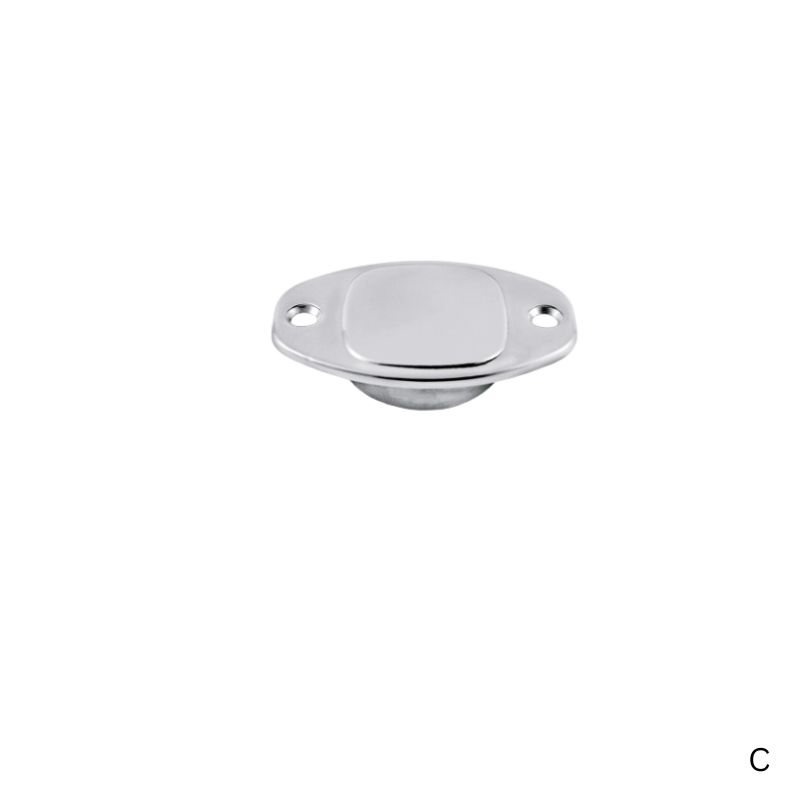

| 70-0207665P | North | C | 35 x 10 | 70(2-3/4") | 45(1-3/4") | 10(3/8") | 38(1-1/2") |
| 70-0207665N | South | C | 35 x 10 | 70(2-3/4") | 45(1-3/4") | 10(3/8") | 38(1-1/2") |
| 70-0207665NR | South | D | 35 x 10 | 70(2-3/4") | 45(1-3/4") | 11(7/16") | 38(1-1/2") |
MAGNET SIZE | HOLDING POWER | ||
W/O RUBBER BUMPER | W/ RUBBER BUMPER | ||
| 15 x 10 | 15 x 10 | 3.3 kg / 7.3 lb | 1.5 kg / 3.3 lb |
| 25 x 10 | 25 x 10 | 7.0 kg / 15.4 lb | 5.2 kg / 11.5 lb |
| 35 x 10 | 35 x 10 | 9.0 kg / 19.8 lb | 7.2 kg / 15.8 lb |
| 30 x 15 | 35 x 10 | 11 kg / 24.2 lb | 10 kg / 22 lb |
MAG. HOLDER BOTTOM | |
| P (North) | N (South) |
 | |
Additional
| Options | Model A - 15mm x 10mm - North, Model A - 15mm x 10mm - South, Model D - 15mm x 10mm - South, Model B - 25mm x 10mm - North, Model B - 25mm x 10mm - South, Model D - 25mm x 10mm - South, Model C - 35mm x 10mm - North, Model C - 35mm x 10mm - South, Model D - 35mm x 10mm - South |
|---|
