Environmentally sealed power connectors have been designed into a wide range of markets such as marine, industrial and automotive.
Robustly constructed in Polyurethane with an easy turn bayonet coupling mechanism, The Index Marine Bulgin connectors are ideal for a variety of high-performance applications that require fast, dustproof and watertight power connections.

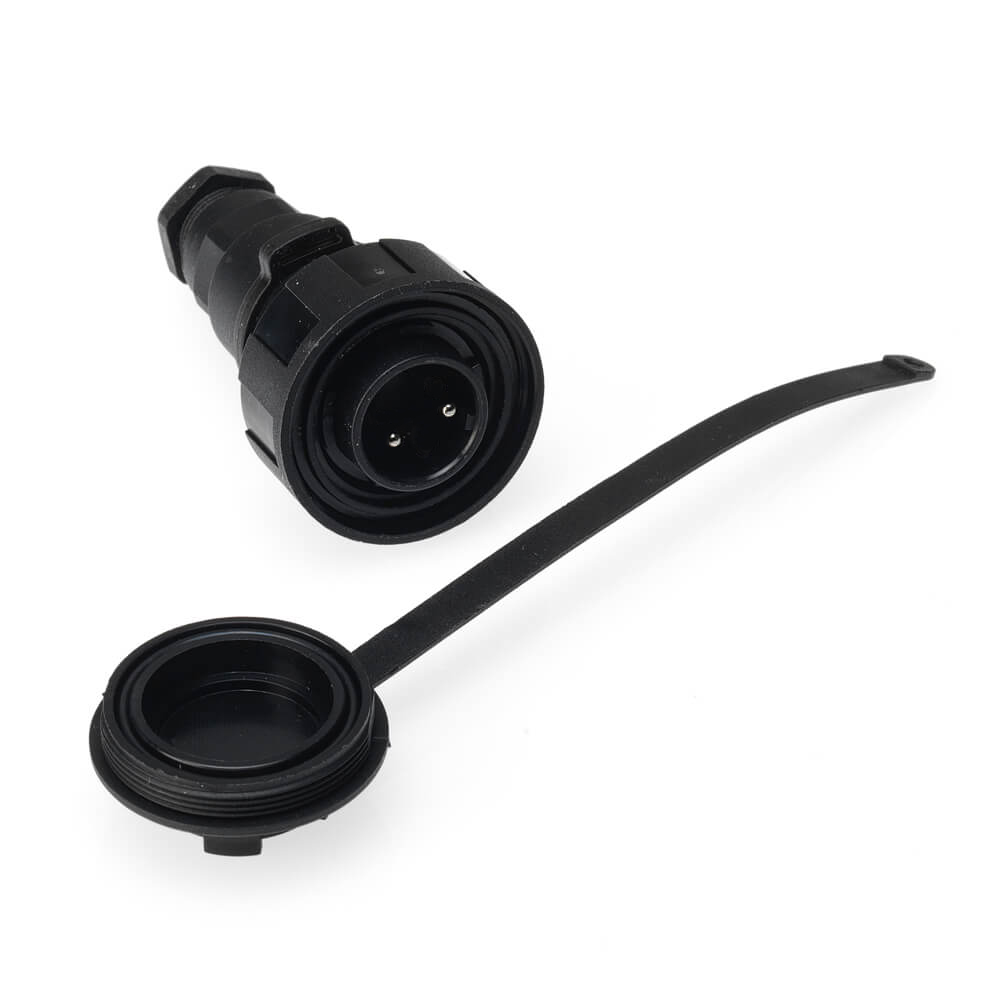

This kit consists of:

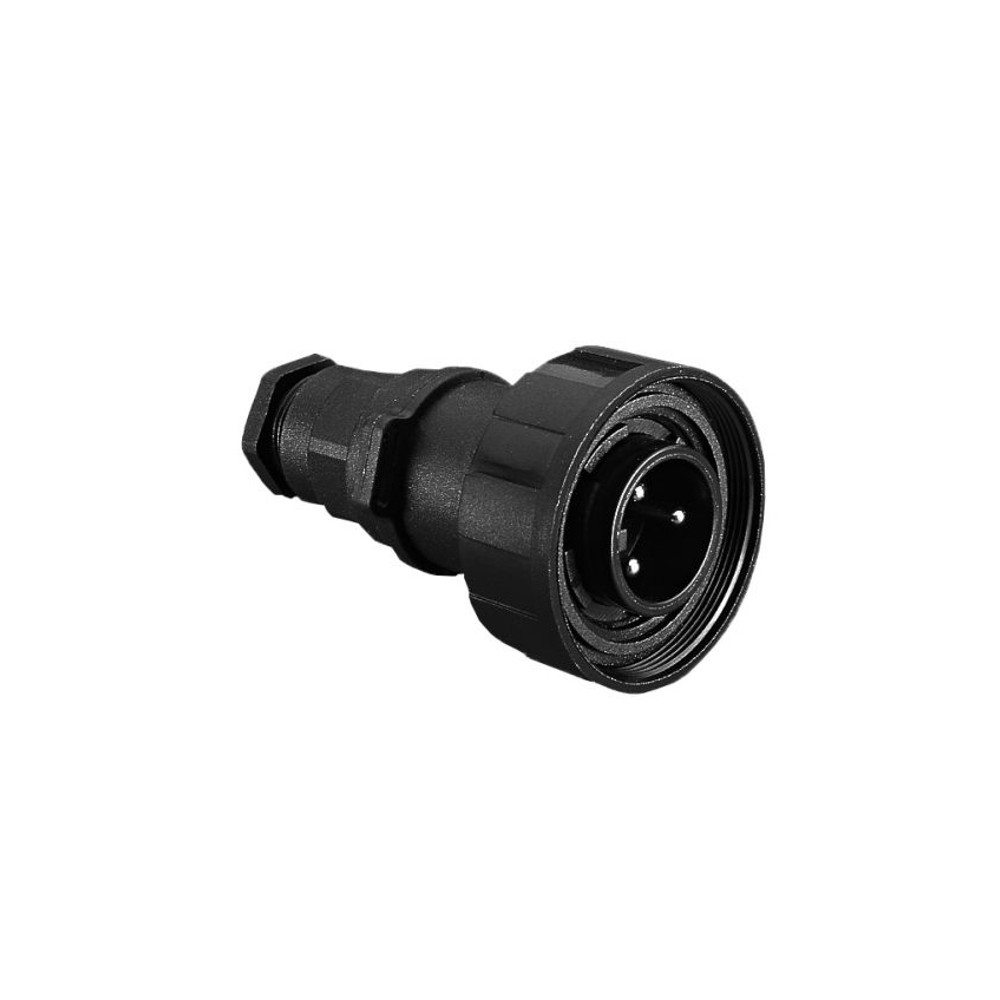

1 x flex plug connector

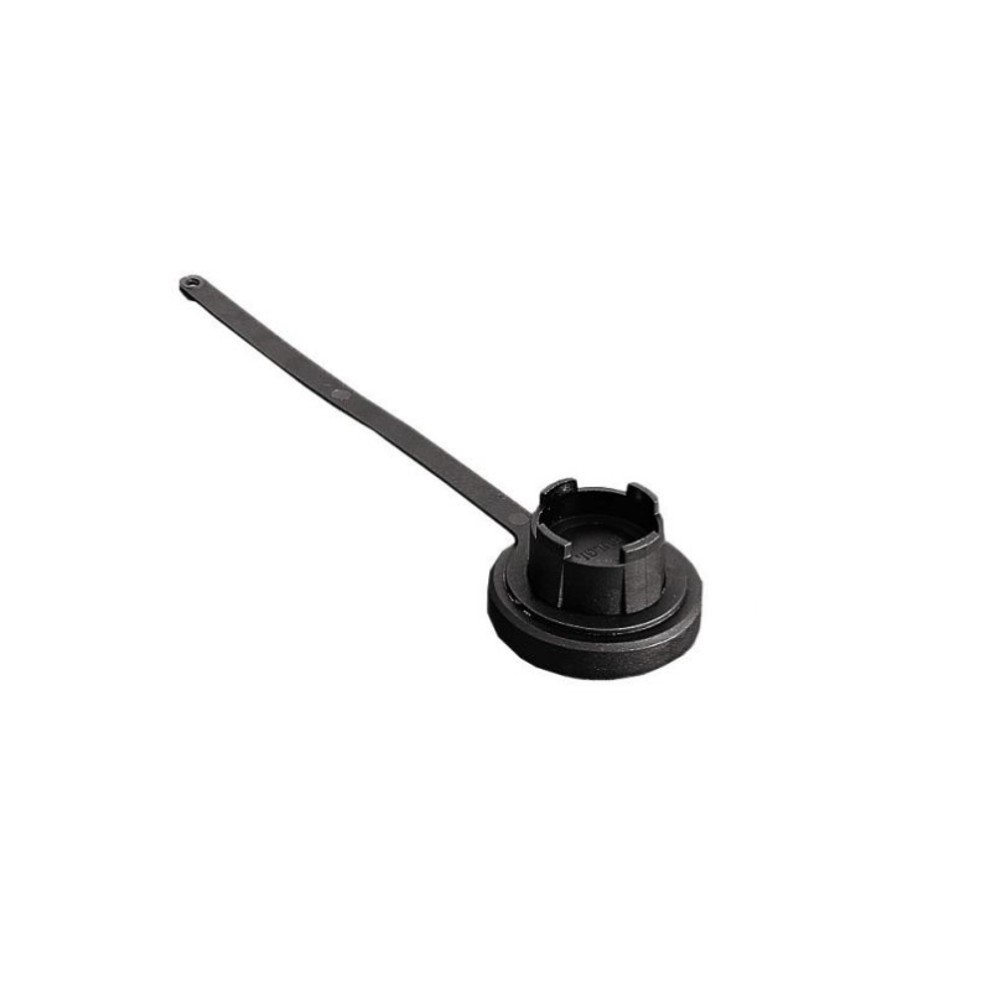

1 x sealing cap

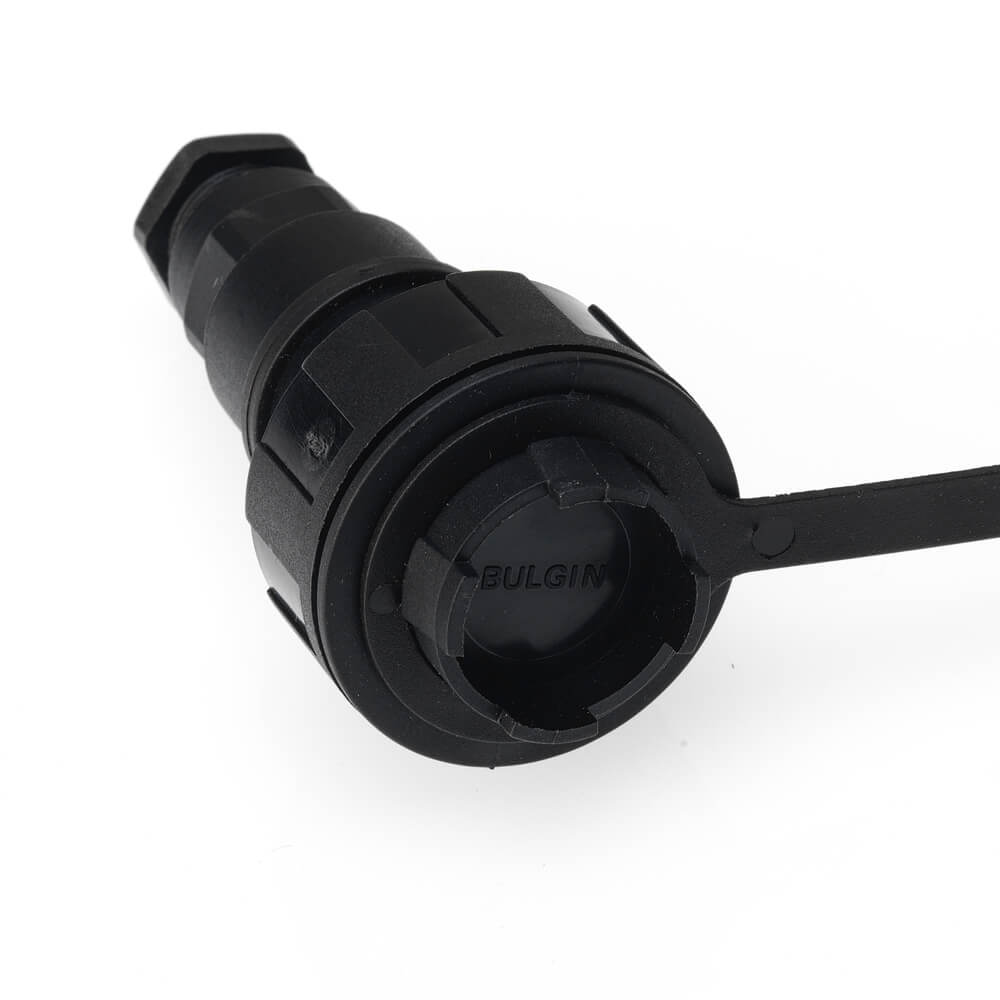

The in-line flex plug provides a waterproof and dustproof connection when mated with the appropriate pin socket connector. The 3 pin socket version has a leading earth contact. Supplied with a sealing cap to maintain IP68 rating when unmated.
Available in 2 pin, 3 pin, 4 pin, 6 pin, 7 pin and 9 pin.
Max Cable Size – 3.5mm – 9mm
Plug Dimensions – Length 69mm x Diameter 38mm
Sealing Cap Dimensions – Length 16mm x Diameter 38mm
