£31.62 - £35.04

Bulgin Plug & Bulkhead Socket Kit

Robustly constructed in Polyurethane with an easy turn bayonet coupling mechanism, The Index Marine Bulgin connectors are ideal for a variety of high-performance applications that require fast, dustproof and watertight power connections….

Description

Environmentally sealed power connectors have been designed into a wide range of markets such as marine, industrial and automotive.
Robustly constructed in Polyurethane with an easy turn bayonet coupling mechanism, The Index Marine Bulgin connectors are ideal for a variety of high-performance applications that require fast, dustproof and watertight power connections.

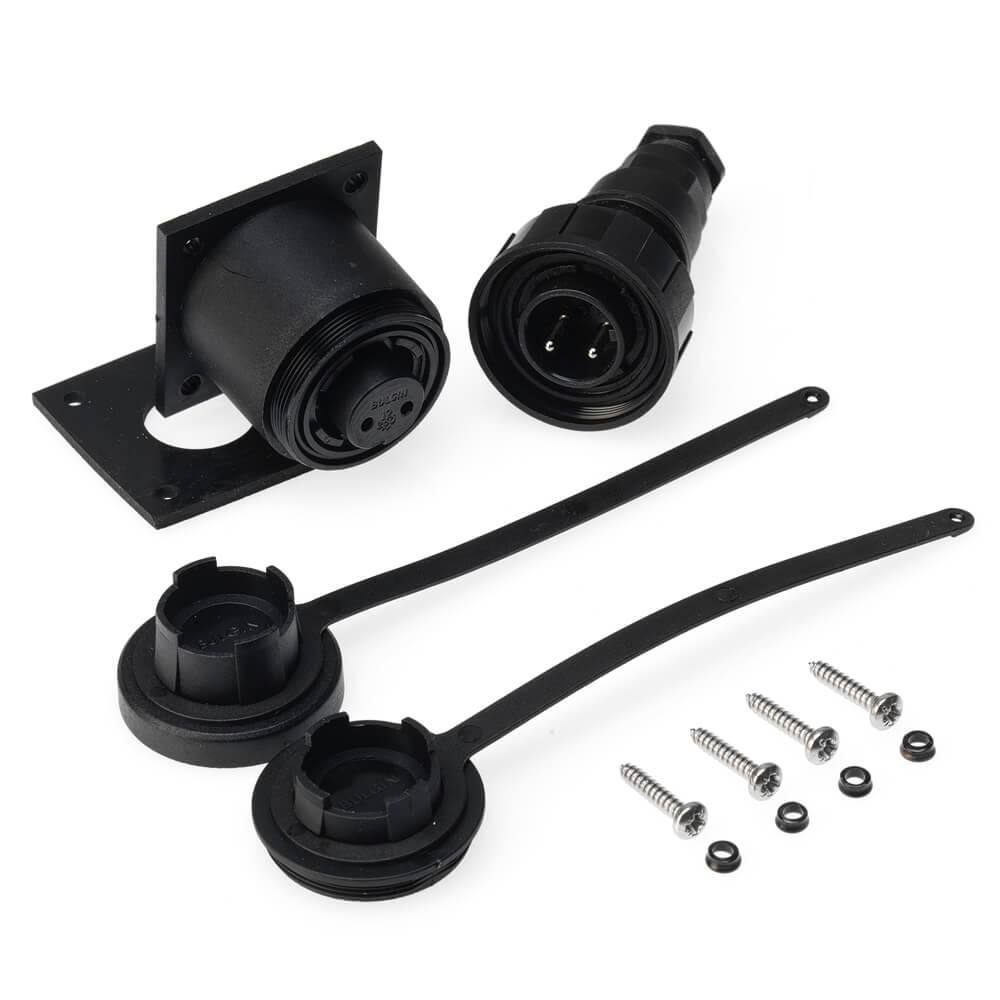

This kit consists of:

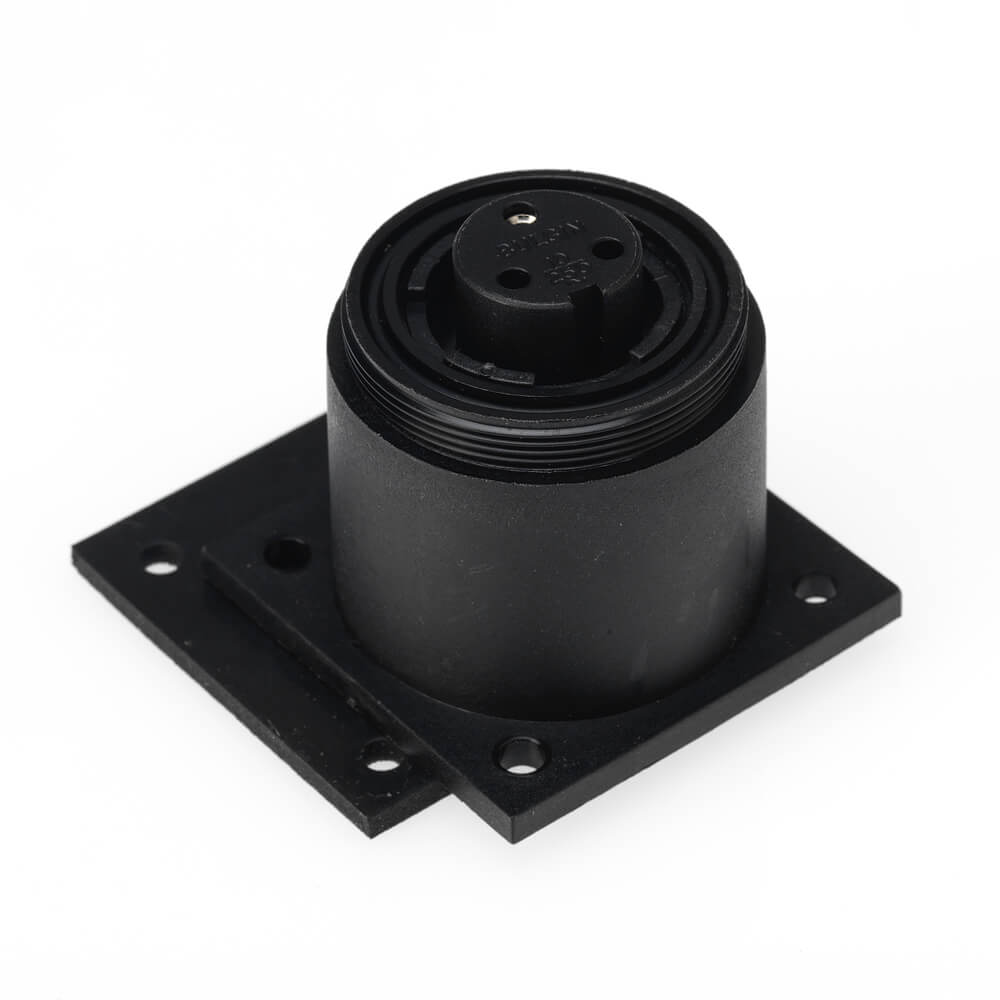

1 x bulkhead flange mount connector

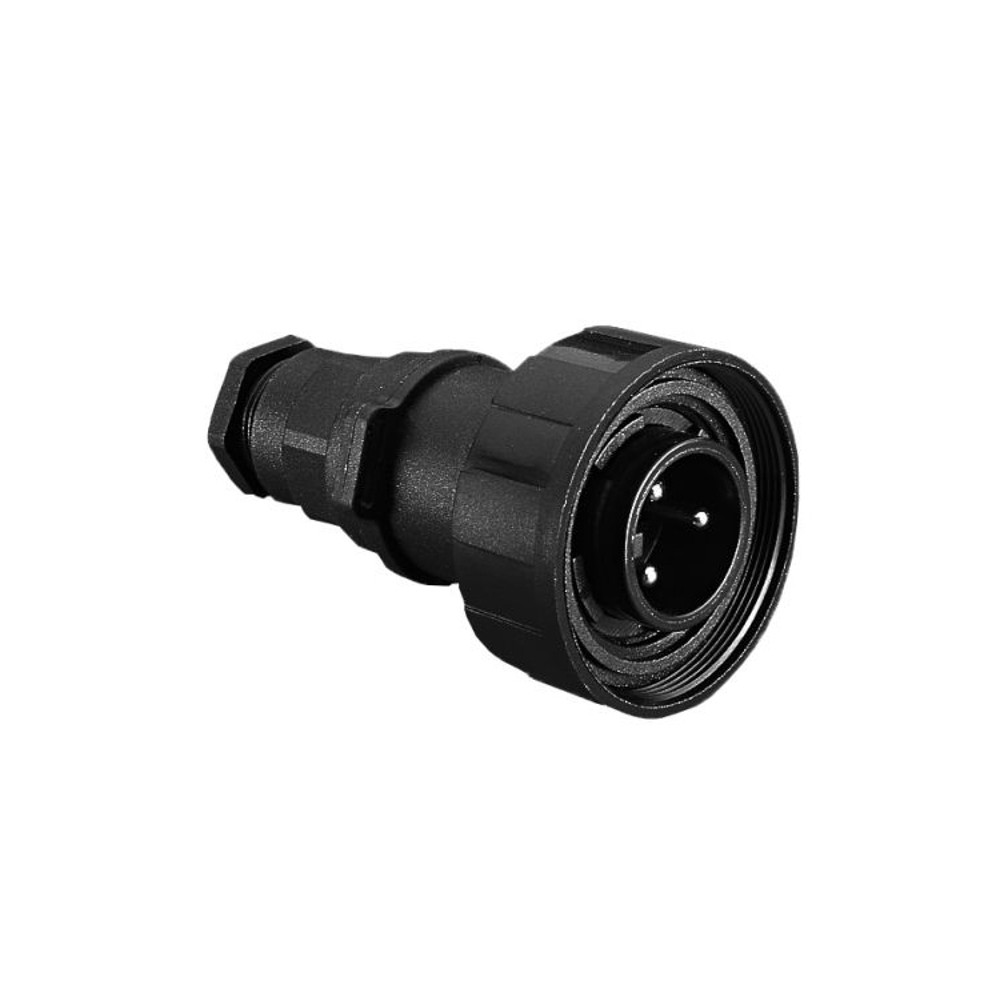

1 x flex plug connector

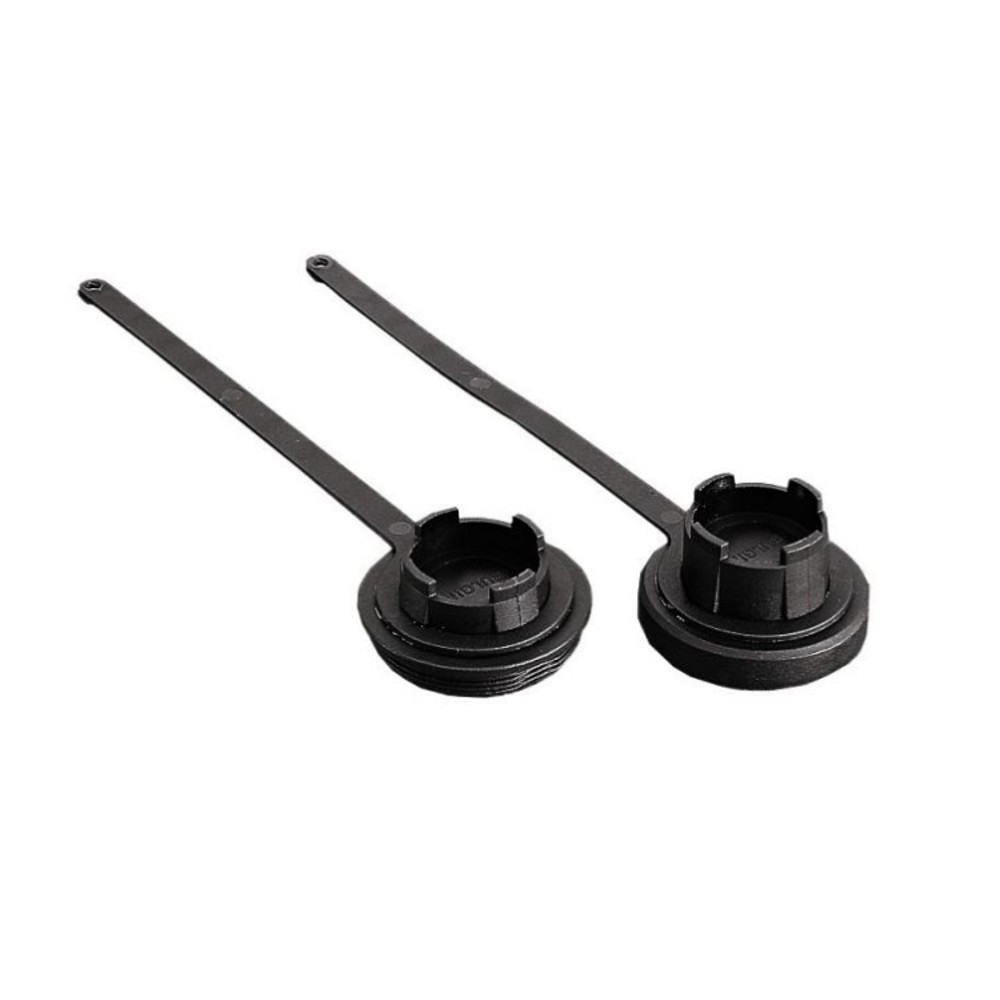

2 x sealing cap
The low-profile flange mount socket provides a waterproof and dustproof connection when mated with the appropriate pin flex connector.

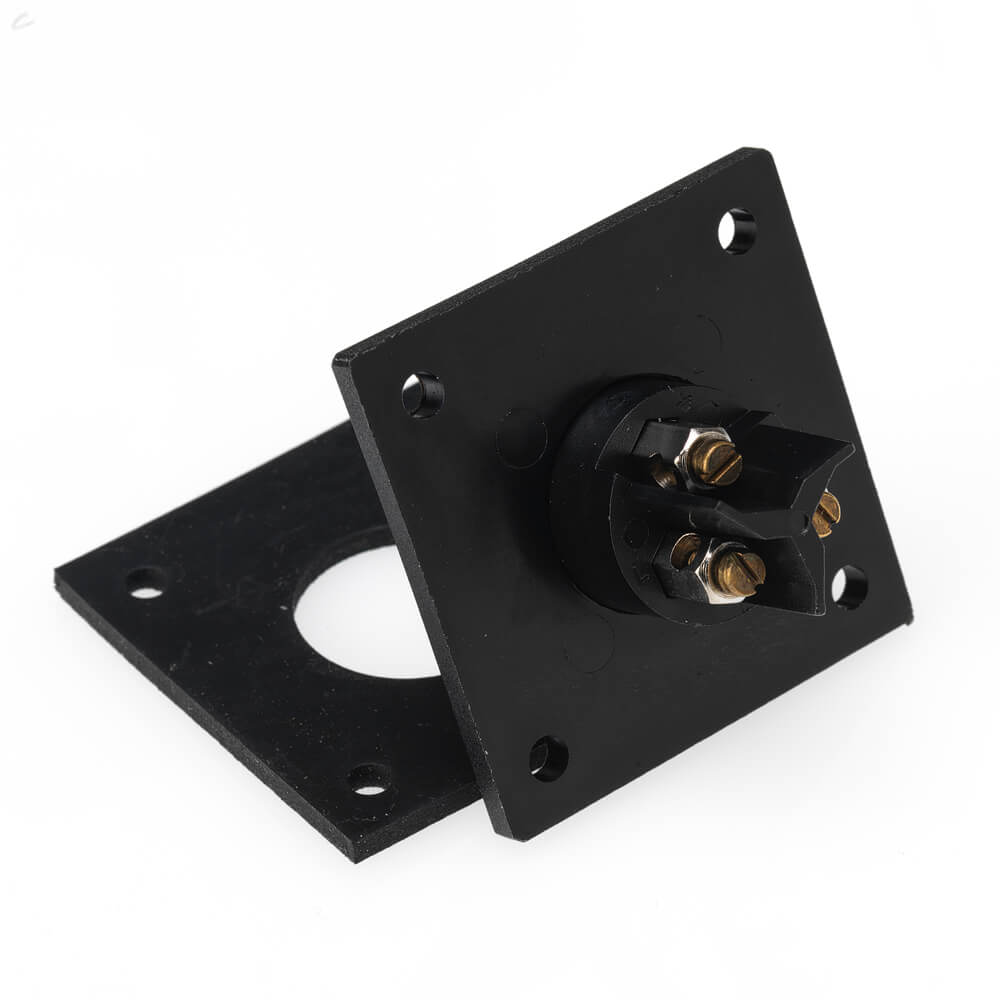

The bulkhead flange mount socket provides a waterproof and dustproof connection when mated with the appropriate pin flex connector. The 3 pin socket version has a leading earth contact. The flange mount is screw fixed with supplied with sealing gasket and screw sealing grommets. Both plug and mount socket connectors are supplied with sealing cap to maintain IP68 rating when unmated.
Available in 2 pin, 3 pin, 4 pin, 6 pin, 7 pin and 9 pin.
Max Cable Size – 3.5mm – 9mm
Flange Dimensions – Height 44.5mm x Width 44.5mm x Length 43mm
Plug Connector Dimensions – Length 69mm x Diameter 38mm
Plug Cap Dimensions – Length 16mm x Diameter 38mm
Socket Cap Dimensions – Length 20.5mm x Diameter 38mm
