Environmentally sealed power connectors have been designed into a wide range of markets such as marine, industrial and automotive.
Robustly constructed in Polyurethane with an easy turn bayonet coupling mechanism, The Index Marine Bulgin connectors are ideal for a variety of high-performance applications that require fast, dustproof and watertight power connections.

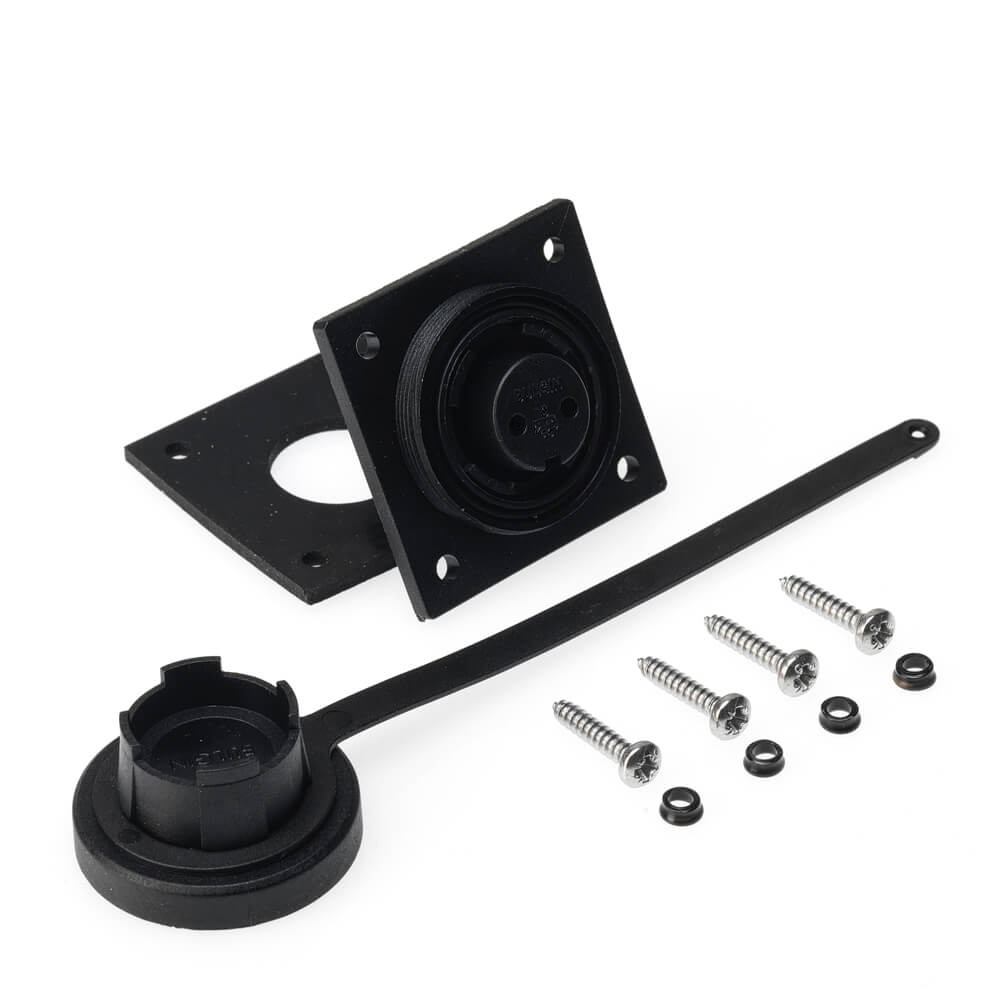

The kit consists of:
1 x low profile flange mount connector
1 x sealing cap
The low-profile flange mount socket provides a waterproof and dustproof connection when mated with the appropriate pin flex connector. The 3 pin socket version has a leading earth contact. The flange mount is screw fixed with supplied with sealing gasket and screw sealing grommets. Both plug and mount socket connectors are supplied with sealing cap to maintain IP68 rating when unmated.
Available in 2 pin, 3 pin, 4 pin, 6 pin, 7 pin and 9 pin.
Max Cable Size – 3.5mm – 9mm
Flange Dimensions – Height 44.5mm x Width 44.5mm
Connector Lengths – 2 Pin 43mm, 3 Pin 38mm, 4 Pin 31mm, 6 Pin 31mm, 7 Pin 38mm, 9 Pin 26mm
Sealing Cap Dimensions – Length 20.5mm x Diameter 38mm
