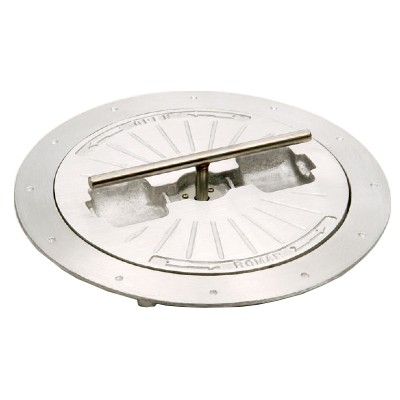

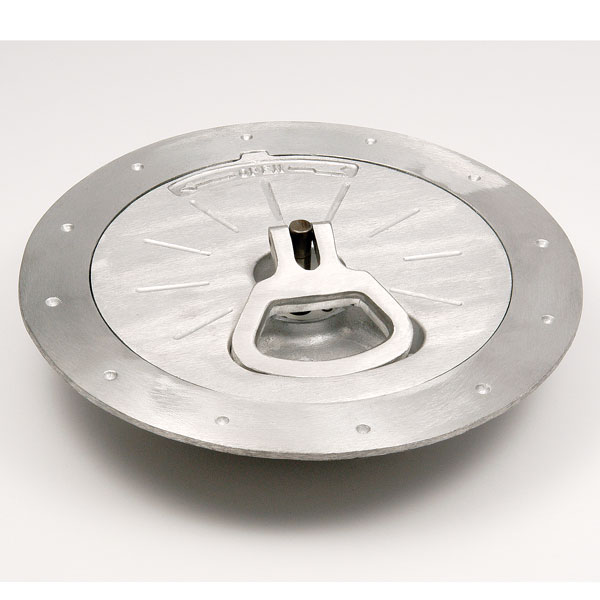

BOMAR Round Watertight Commercial Hatches
Manufactured from Cast Aluminium Almag-35, and will not pit or corrode. The cast aluminium alloy frame has a tensile strength of 44,000lbs psi. The new watertight lip gasket is not only leakproof but also has the greatest resistance to salt water and pressure.
- Stock Level
- On Back Order
- SKU
- P-01-412
Description

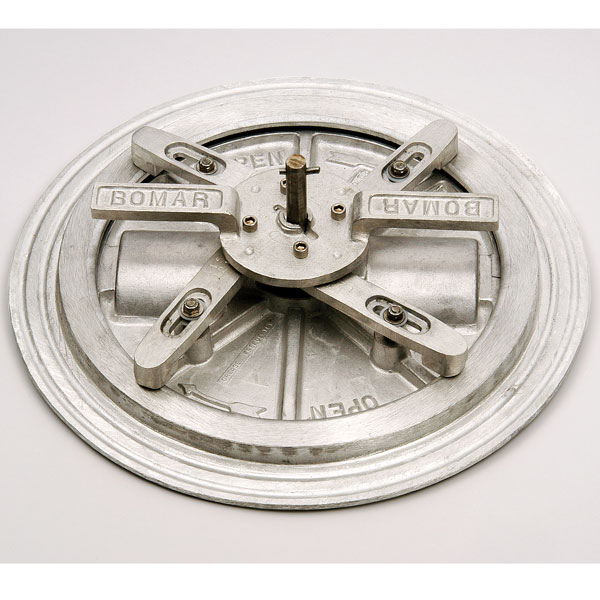

Can be purchased with a steel ring to allow the hatch to be welded to a steel boat. Come with 4-Locking dogs operated by a stainless-steel T-Handle (expect 01-412).
Lloyds Certified (except 01-412) Optional powder coating available.
01-412 - 12" dia.
01-412SR - 12" dia. with Steel Ring.
Opening size - 12" (305mm) Cut Out 15" (380mm)
01-415 - 15" dia.
01-415SR - 15" dia. with Steel Ring.
Opening size - 15" (380mm) Cut Out 18" (455mm)
01-418 - 18" dia.
01-418SR - 18" dia. with Steel Ring.
Opening size - 18" (455mm) Cut Out 21" (535mm)
01-420 - 20" dia.
01-420SR - 20" dia. with Steel Ring.
Opening size - 20" (508mm) Cut Out 23" (585mm)
01-424 - 24" dia.
01-424SR - 24" dia. with Steel Ring.
01-424H - 24"dia. with Hinges.
01-424HSR - 24" dia. with Hinges and Steel Ring.
Opening size 24" (610mm) Cut Out 27" (685mm)
Additional
Options | 12" Diameter, 12" Diameter with Steel Ring, 15" Diameter, 15" Diameter with Steel Ring, 18" Diameter, 18" Diameter with Steel Ring, 20" Diameter, 20" Diameter with Steel Ring, 24" Diameter, 24" Diameter with Hinges, 24" Diameter with Hinges and Steel Ring, 24" Diameter with Steel Ring |
---|---|
Brand | Bomar / Pompanette |
