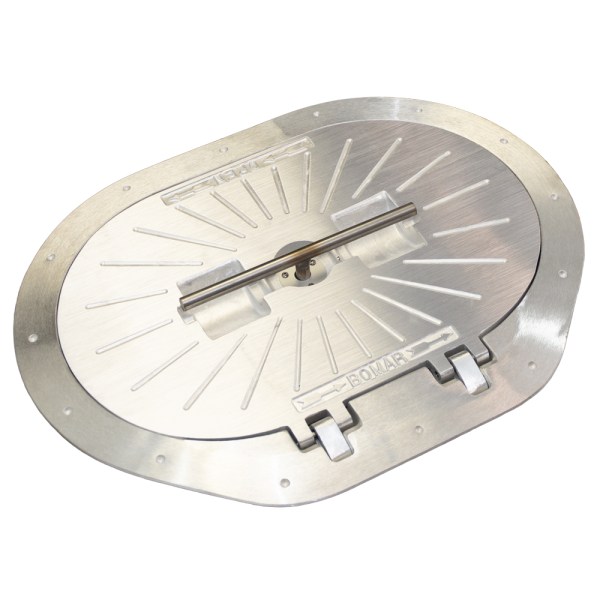

BOMAR Oval Watertight Commercial Hatches

Manufactured from Cast Aluminium Almag-35, and will not pit or corrode. The cast aluminium alloy frame has a tensile strength of 44,000lbs psi. The new watertight lip gasket is not only leakproof but also has the greatest resistance to salt water and pressure.

On Back Order
SKU
P-01-41218

£0.00

Description

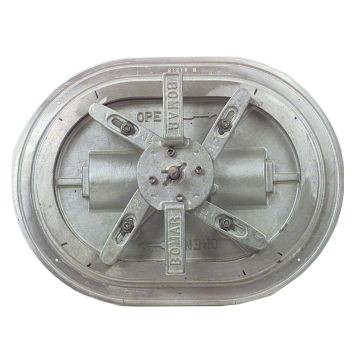

Can be purchased with a steel ring to allow the hatch to be welded to a steel boat. Come with 4-Locking dogs operated by a stainless-steel T-Handle.

Lloyds Certified. Optional powder coating available.

12" x 18"

01-41218 - 12" x 18" Oval Hatch.

01-41218SR - 12" x 18" Oval Hatch with Steel Ring.

Opening size 12" x 18" (310mm x 464mm) Cut Out 15" x 21" (380mm x 534mm)

15" x 24"

01-41524 - 15" x 24" Oval Hatch.

01-41524SR - 15" x 24" Oval Hatch with Steel Ring

01-41524H - 15" x 24" Oval Hatch with Hinges.

01-41524HSR - 15" x 24" Oval Hatch with Hinges and Steel Ring.

Opening size 15" x 24" (380mm x 610mm) Cut Out 17.5" x 26.5" (450mm x 680mm)

Additional

Options12" x 18", 12" x 18" with Steel Ring, 15" x 24", 15" x 24" with Hinges, 15" x 24" with Hinges & Steel Ring, 15" x 24" with Steel Ring
BrandBomar / Pompanette
