Aqualine Wing Cleat

Description

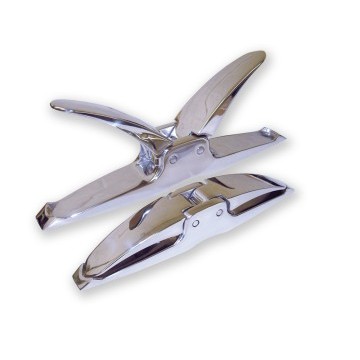

The Aqualine Wing Cleat is made using cast 316 Stainless Steel and hand polished to a mirror finish.

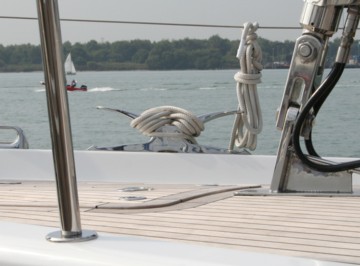

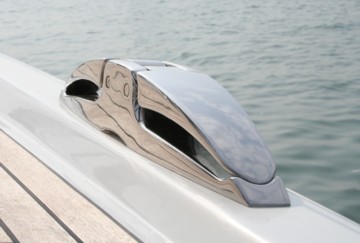

In its closed position the unit's low profile will not interfere with the sleek lines of your boat, and when lifter to its 'in use' position great care has been taken to ensure that expensive mooring lines are not damaged by chafe.

Each cleat has 3 M16 studs (M12 for 280 unit) to give a clean under surface mounting, in addition to the 2 M16 sheer pins that give even more side loading strength, making it suitable for most boats up to 100ft in length.

Only 5 drill holes needed for fitting, making it an easy "one man job". These cleats have been load tested well in excess of mooring rope failure loads. As a result we will not accept responsibility for damage caused by overloading or due to misuse.

10A-9336102 - 280mm x 44mm - 9.46T - Technical Drawing PDF

10A-9336100 - 360mm x 55mm - 20.12T - Technical Drawing PDF

10A-9336101 - 480mm x 75mm - 24.5T - Technical Drawing PDF

Load test results shown are failure point.
