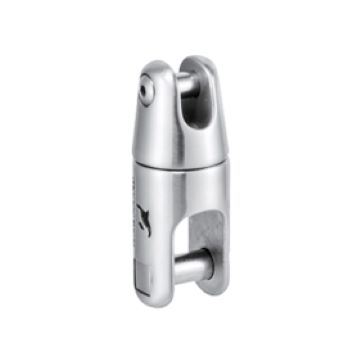

Anchor Connectors - Single Swivel
316 Stainless steel. Easy to pull anchor over bow roller. Pins will not loosen when under load.
Description
Pins can be removed by using an Allen key
Available in three different sizes

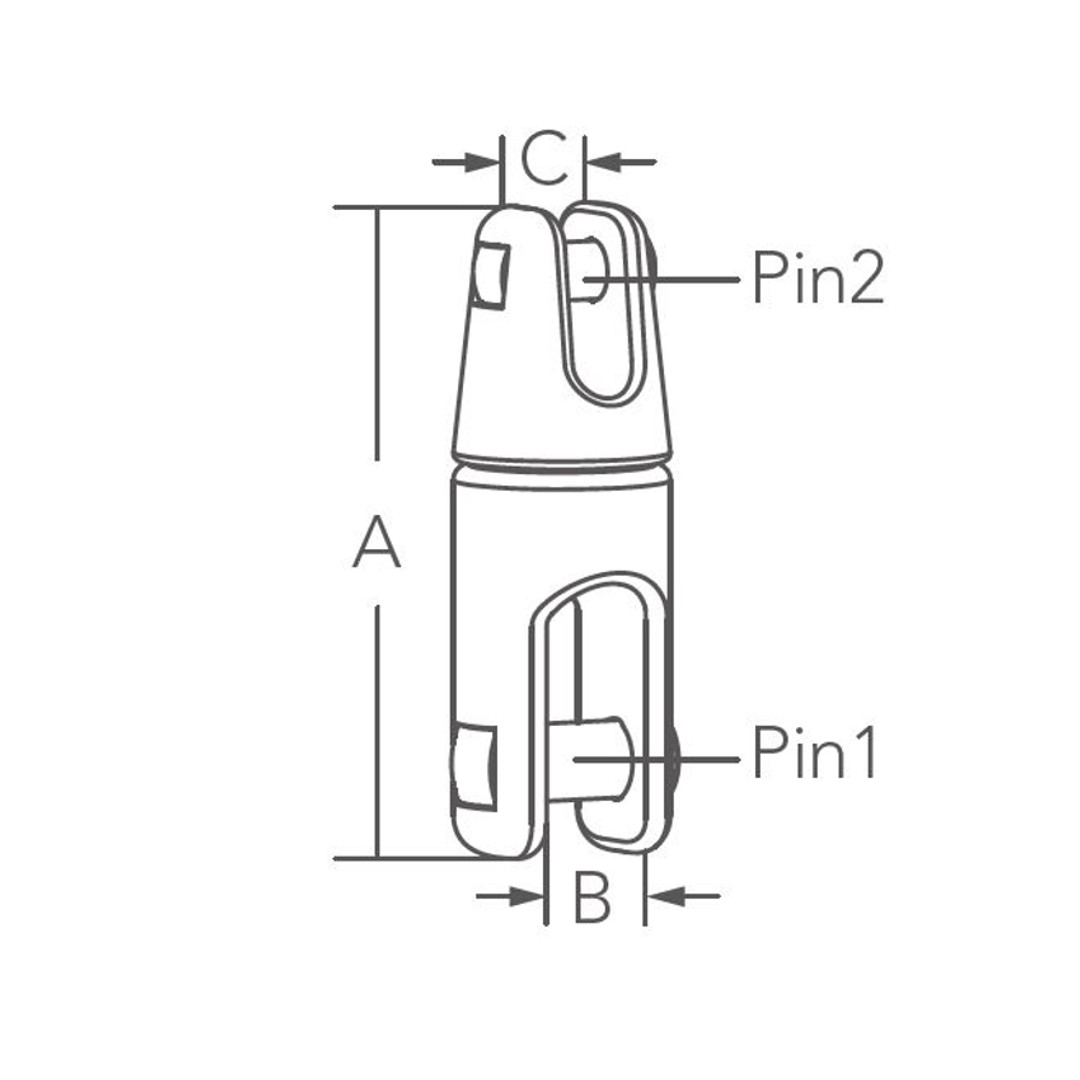

| Part Number | A mm | B mm | C mm | Pin1 Ø mm | Pin2 Ø mm | S.W.L. |
| 70-127090 | 84 | 16 | 9.5 | 10 | 7.5 | 850 kg |
| 70-137118 | 96 | 22 | 13.5 | 12 | 10 | 1350 kg |
| 70-NDH-AC-17-S | 150 | 26 | 16.5 | 16 | 12 | 1700 kg |
Additional
| Options | Single Swivel - 1350kg 96mm, Single Swivel - 1700kg 150mm, Single Swivel - 850kg 84mm |
|---|---|
| Brand | C Quip |
