Anchor Connectors - Fixed
316 Stainless steel. Easy to pull anchor over bow roller. Pins will not loosen when under load
Description
Pins can be removed by using an allen key. Available in two different versions.

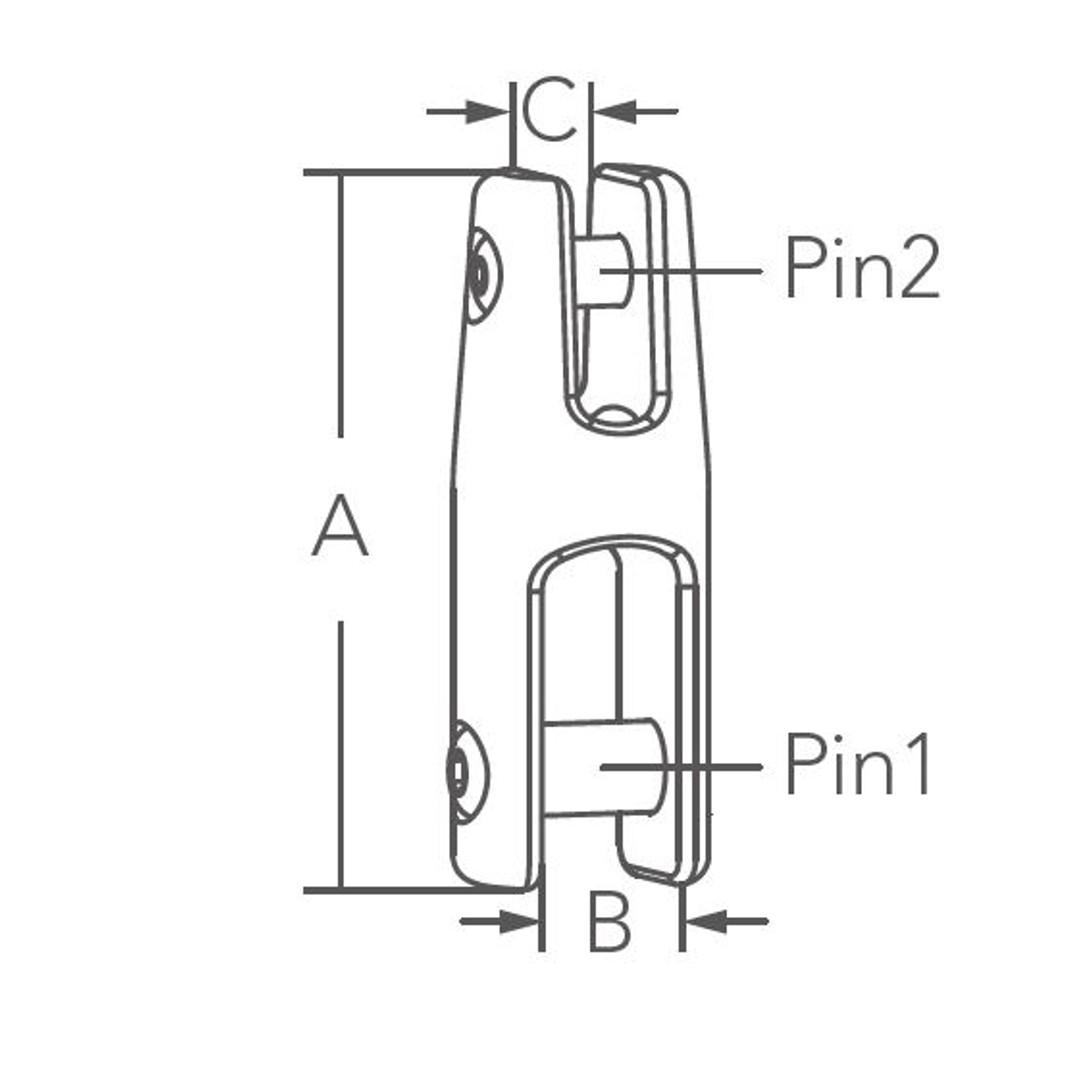

Part Number | A mm | B mm | C mm | Pin1 Ø mm | Pin2 Ø mm | S.W.L. |
| 70-NDH-AC-09-F | 79 | 15 | 10 | 10 | 7.5 | 850 kg |
| 70-NDH-AC-13-F | 91 | 22 | 13 | 12 | 10 | 1350 kg |
Additional
| Options | Fixed - 1350kg 91mm, Fixed - 850kg 76mm |
|---|---|
| Brand | C Quip |
