Aluminium Folding Brackets
Automatically locks when flap is in opened position. Press lever to release the lock. For panel thickness 15-35mm.
Description

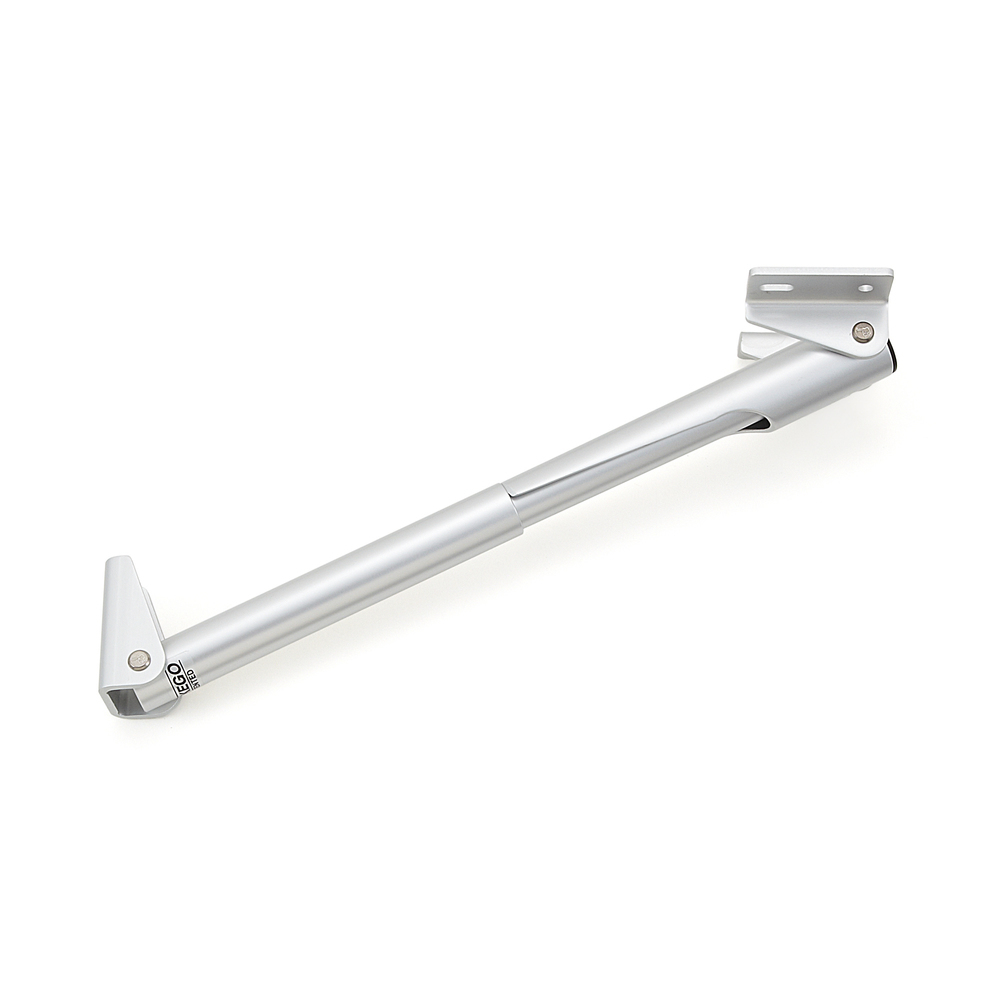

From Sugatsune, Aluminium Folding Brackets. Available in 3 different sizes.

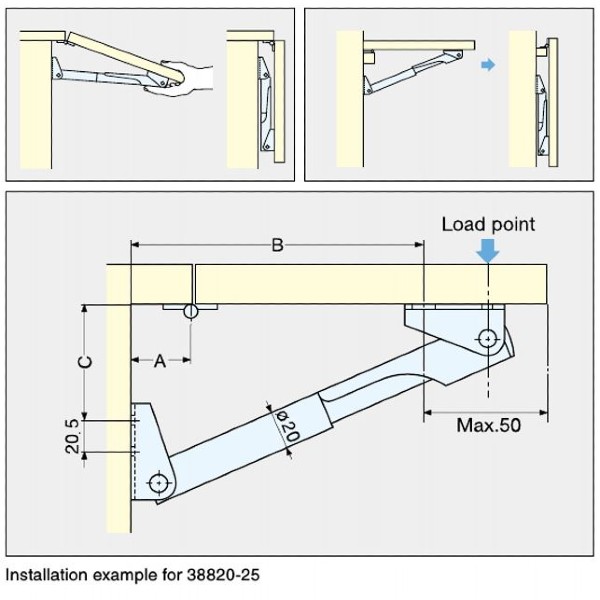

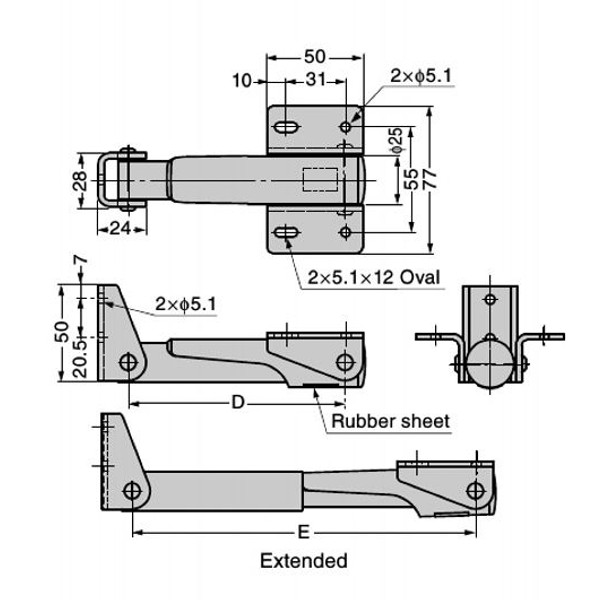

52-38830-25 – A: 28-39mm B: 252mm C: 45mm D: 168mm E: 276mm
52-38845-25 – A: 28-50mm B: 402mm C: 87mm D: 258.5mm E: 431mm
52-38860-25 – A: 28-40mm B: 549mm C: 137mm D: 368.5mm E: 586mm
Additional
| Options | 276mm Length, 431mm Length, 586mm Length |
|---|---|
| Brand | Sugatsune |
