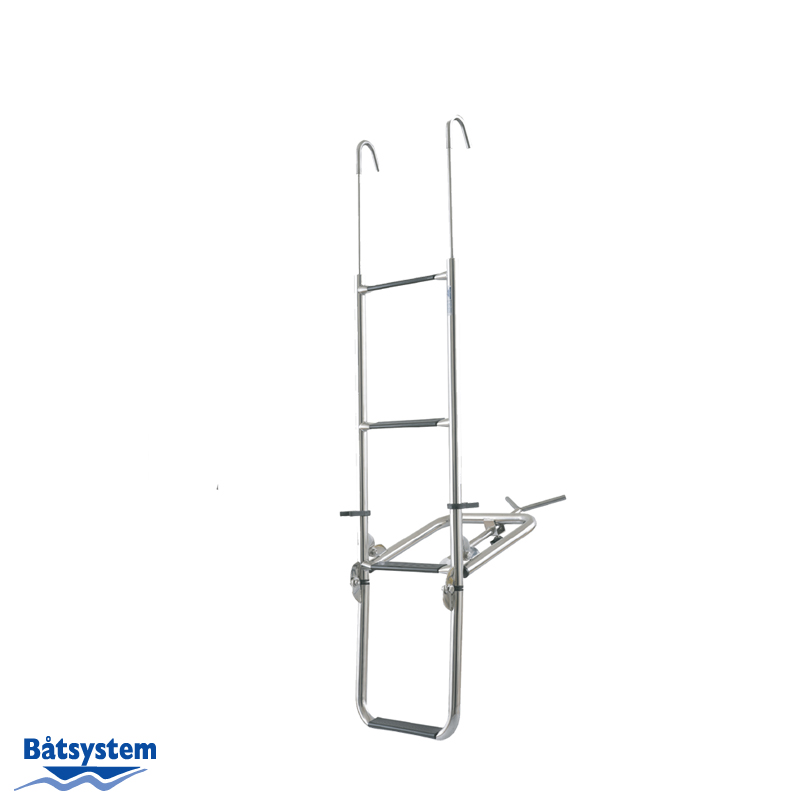

Aluminium 4 Step Bow Ladder
Specially designed to fit boats with a blunt stem or with a stem anchor. This bow ladder is fitted by simply hanging the handles over the pulpits. However, an optional pulpit tube clip mount is available to purchase separately.
- Stock Level
- On Back Order
- SKU
- P-14-ST125AL
Description

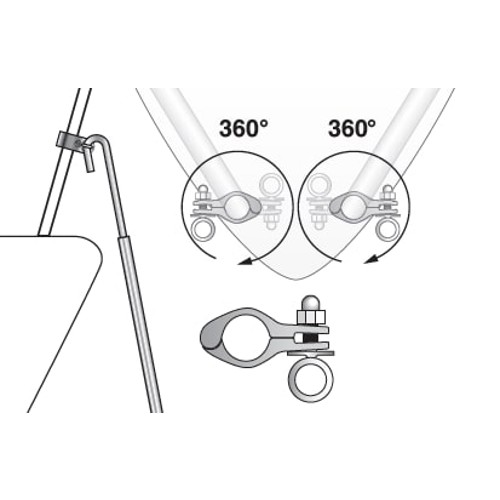

Specially designed to fit boats with a blunt stem or with a stem anchor. This bow ladder is fitted by simply hanging the handles over the pulpits. However, an optional pulpit tube clip mount is available to purchase separately. You simply mount the tube clip onto the pulpit, adjust to your desired angle & place the ladders handles through the eye bolt. Deck mount fittings are also available to purchase separately if you prefer.
Four flat steps where the last step is able to be folded upwards when the ladder is not in use. The step is safely & securely held in place by the plastic clip fitted onto the side of the ladder.
An adjustable strut is set against the bow at an angle and length suitable for your boat.

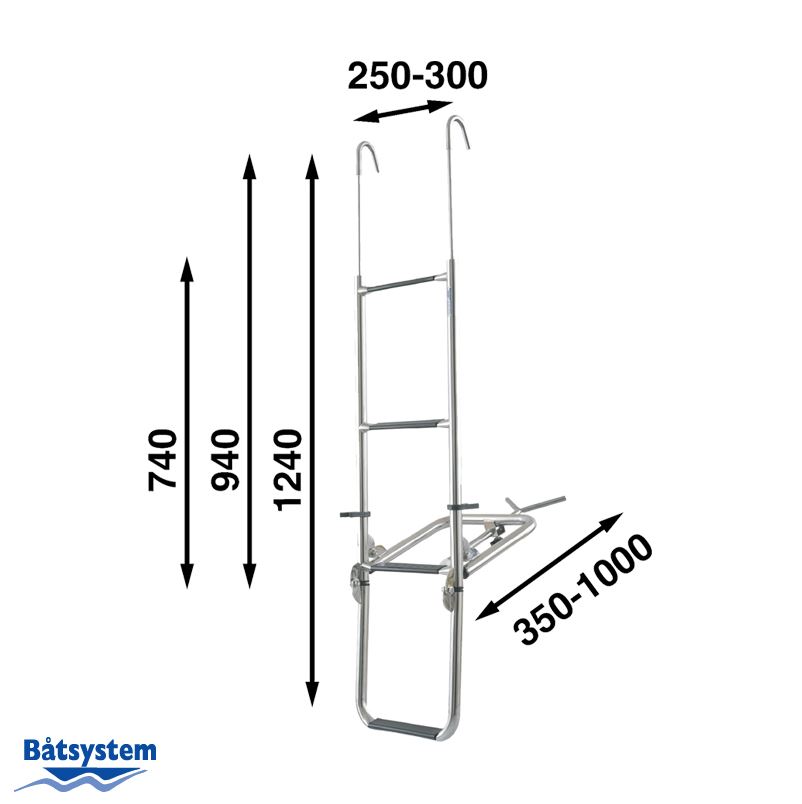

Specifications
- Length: 1240 mm
- Length, folded: 740 mm
- Width: 250-300 mm
- Length, strut: 350-1000 mm
- Steps: 4
- Material: Aluminium
- Fitting: Step
14-ST125AL - Mounting Instruction PDF
Additional
| Options | Aluminium 4 Step Bow Ladder - 1240mm, Bow Ladder Pulpit Tube Clip Mount |
|---|---|
| Brand | Batsystem |
