Each cleat is provided with a cut-out template which also serves as a backing plate and fitting for a waterproofing cup. By having a waterproofing cup, this prevents any water running off below the deck.
Fixed by 4 bolts or studs L-17″(431.8mm) W-5.3″ (134.6mm). extends 7.1″ (180mm) below deck surface.
Load tested to break point at 27’887KG for bolt mounted unit and 14’421KG for stud mounted unit.

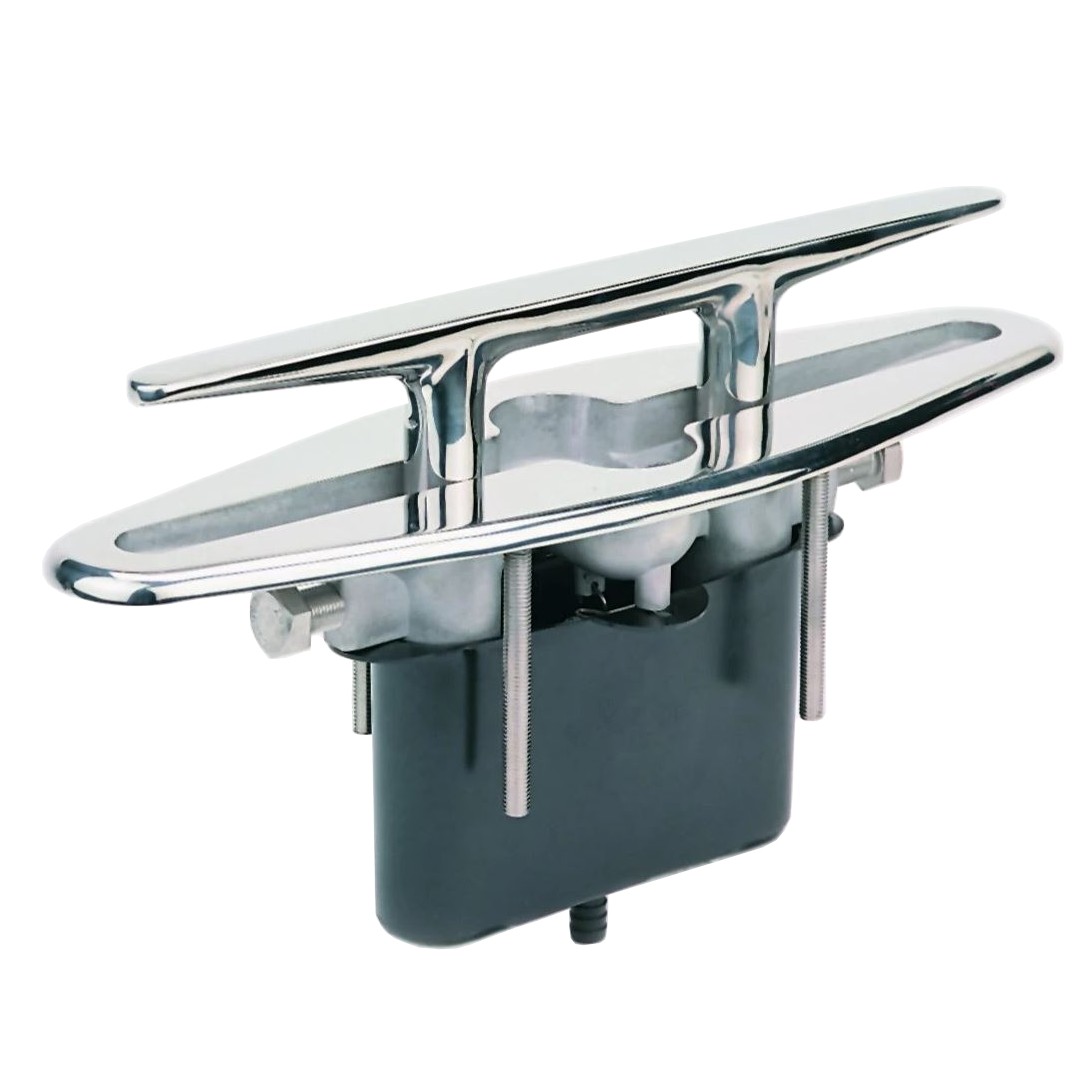

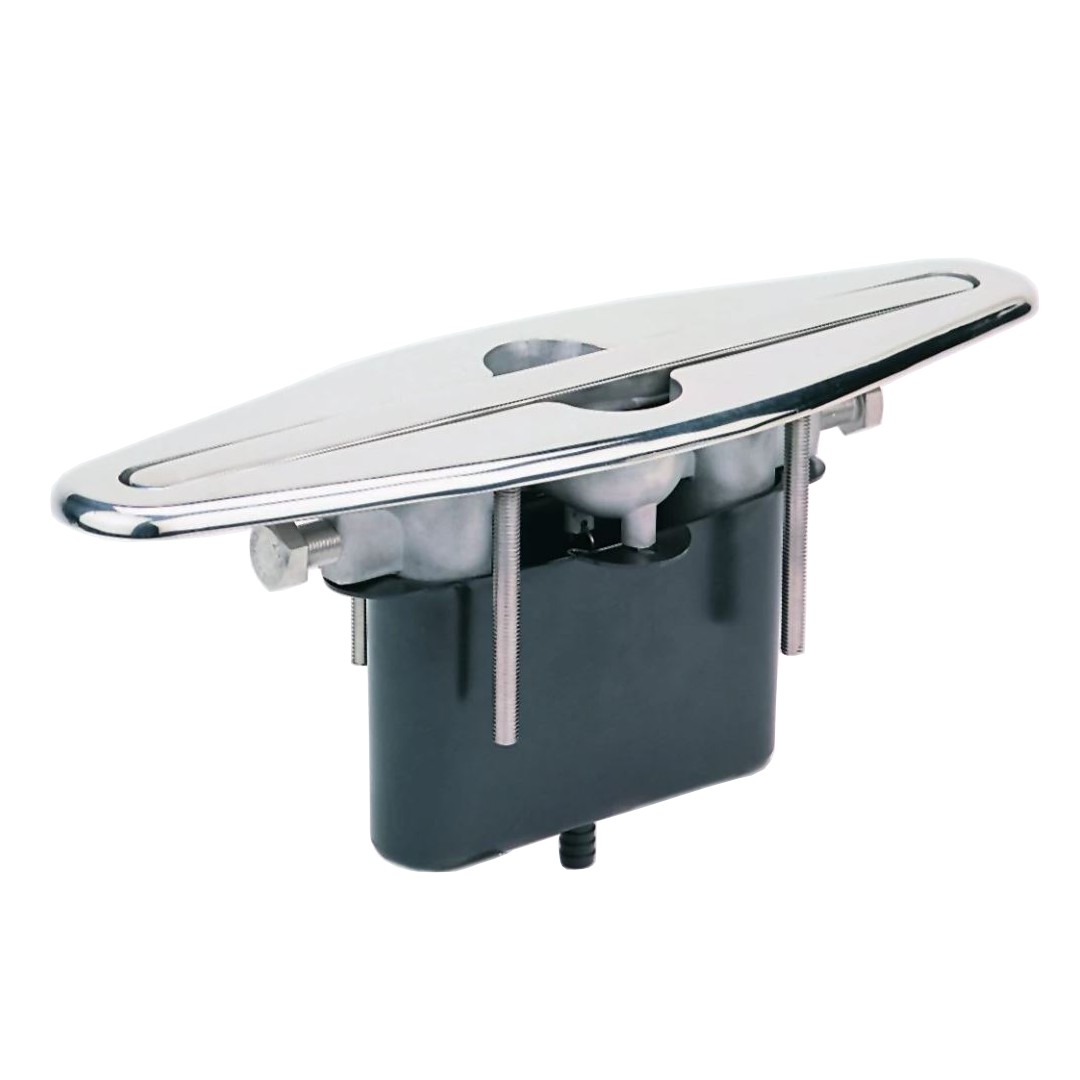

60-115-15 – 15″ Pull Up Cleat
60-115-15-S – 15″ Pull Up Cleat with Studs
60-115-15-C – Waterproofing Cup for 15″ Cleat
