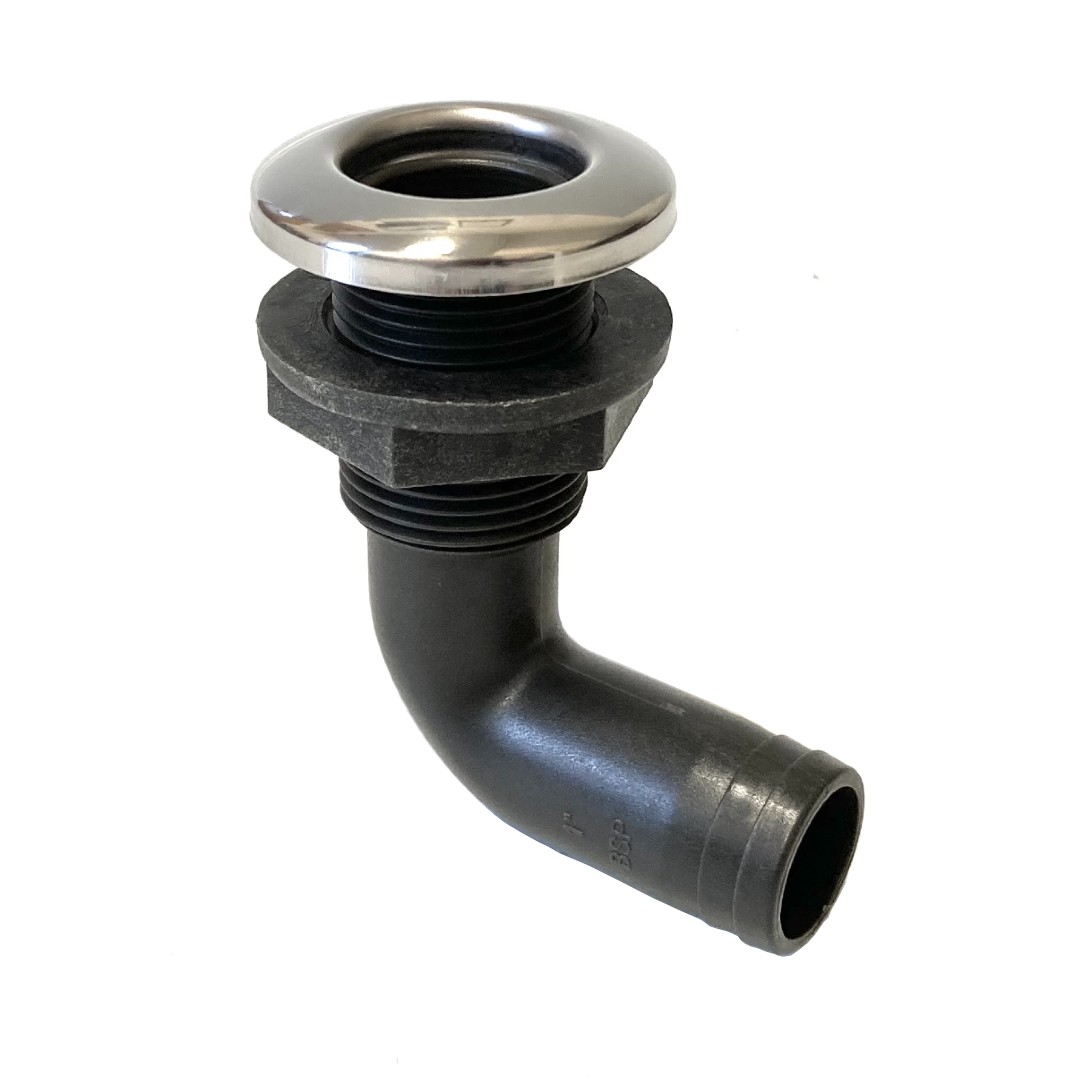

90 Degree Composite Skin Fitting

90 Degree Skin Fittings moulded in fibre reinforced Acetal with beautifully polished stainless steel cap that is ultrasonically welded onto the flange.

Description

Light weight and highly corrosion resistant. 1 1/4" Max Hull Thickness. Available in the below sizes.

10-47653 - 3/4" Hose Fitting

10-47654 - 1" Hose Fitting

10-47655 - 1 1/8" to 1 1/4" Hose Fitting

10-47656 - 1 1/2" Hose Fitting

Technical Drawing PDF

Additional

Options1 1/2" Hose Fitting, 1 1/8" to 1 1/4" Hose Fitting, 1" Hose Fitting, 3/4" Hose Fitting
BrandC-Quip
