3 1/4″ diameter hole required. Fastens to deck with four 1/4″ screws. When tested with grade 8 bolts, the bolts failed at 36,000 lbs. (16’329kg) and the lifting eye was still useable. These test results are good in the direction of the axis of the threaded rod shank only.
Parts may be purchased separately.

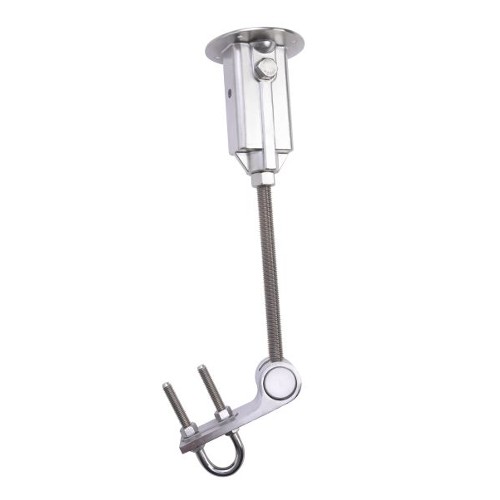

60-203-EA-XL – Extra Large 203 Lifting Eye with Hardware

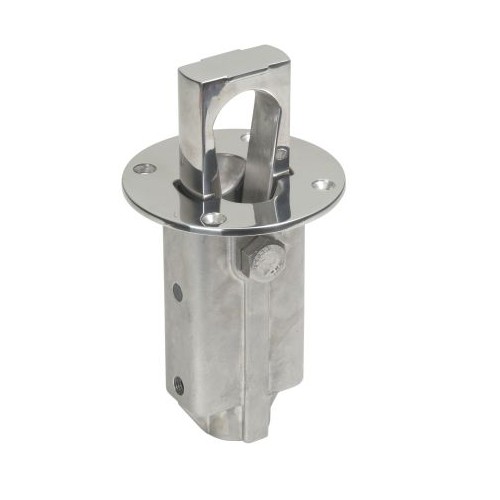

60-203-XL – Extra Large 203 Lifting Eye with Base
60-203-LER-XL – Connecting Rod
60-203S-XL – Large Sling Cast
60-203CBR – Cross Bar for Sling
60-203-BE – Bow Eye
