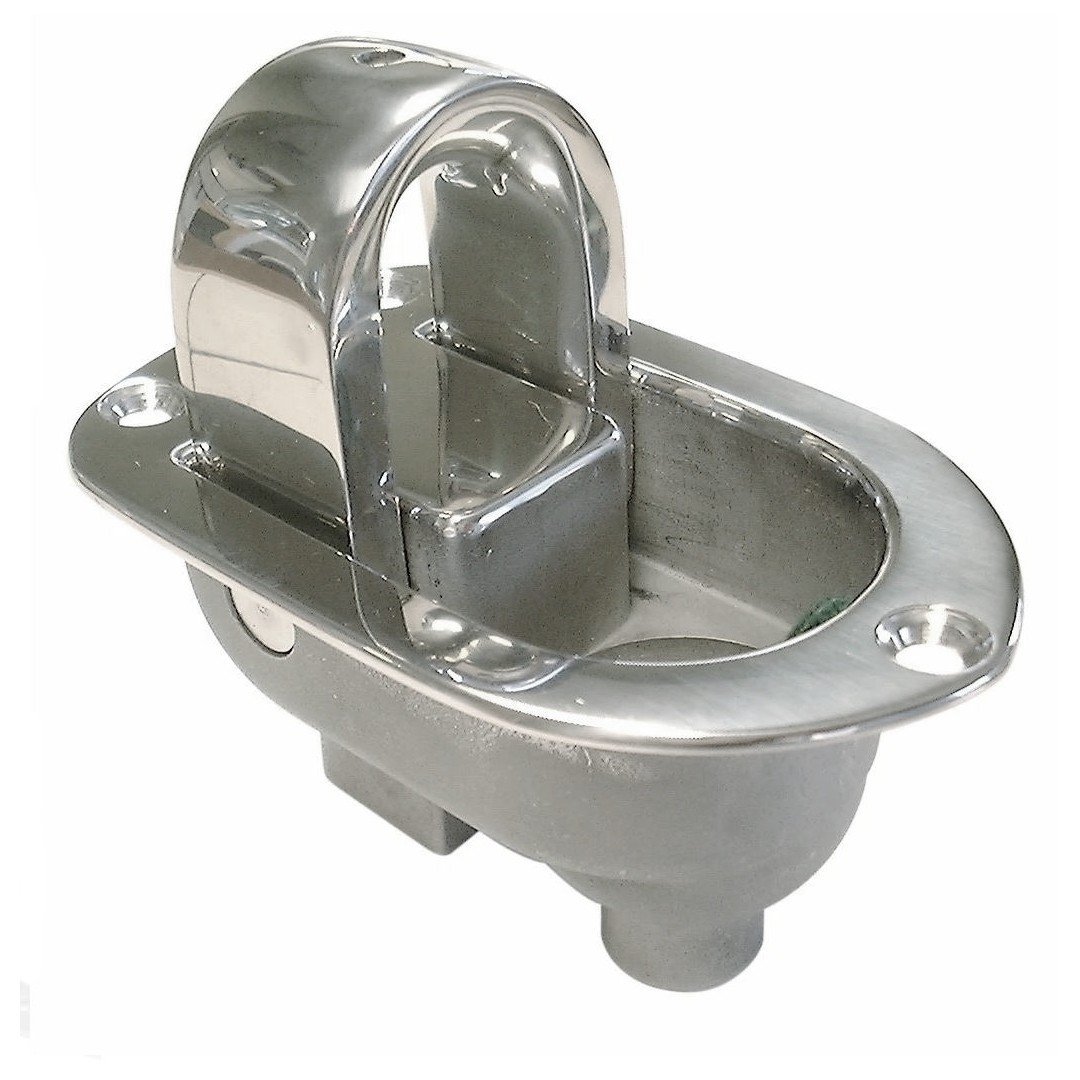

201 Series Lifting Eye

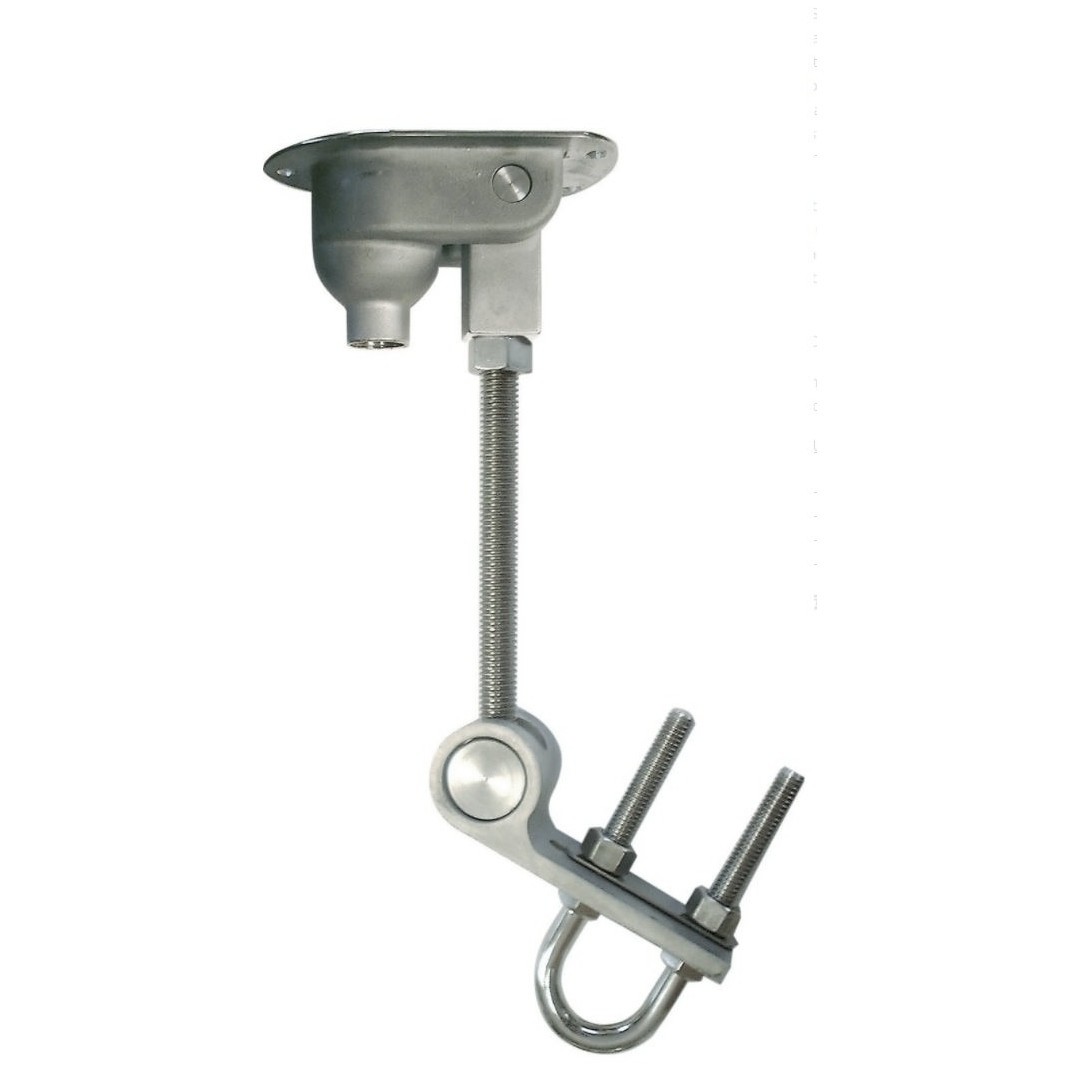

Small compact unit which can be drained or sealed water tight. Hub pivots two ways to overcome a slight misalignment at installation.
Description
Small compact unit which can be drained or sealed water tight. Hub pivots two ways to overcome a slight misalignment at installation.
All stainless steel parts; eye and base are 316, lifting hardware is 304. The sling is a solid casting for increased strength. Requires less clearance under deck than our lifting cleats. Fastens to deck with four #10 screws.
The maximum working load is 4,000 lbs (1'814kg) in the direction of the axis of the threaded rod shank only.
Parts may be purchased separately.
60-201-EA - 201 Lifting Eye with Hardware
60-201-LE - 201 Lifting Eye with Base
60-201-LER - 12" Connecting Rod for Lifting Eye
60-203S - Sling Cast for Lifting Eye
60-203-CBL - Cross Bar for Sling
60-201-DP - Drain Plug for Lifting Eye
60-201-DF - Drain Fitting for Lifting Eye
60-203-BE - Bow Eye for Lifting Eye
Additional
| Options | 12" Connecting Rod for 201 Series Lifting EYE, 201 Series Lifting Eye with Base, 201 Series Lifting Eye with Hardware, Bow Eye for 201 Series Lifting Eye, Cross Bar for Sling, Drain Fitting for 201 Series Lifting Eye, Drain Plug for 201 Series Lifting Eye, Sling Cast for 201 Series Lifting Eye |
|---|---|
| Brand | Accon |
